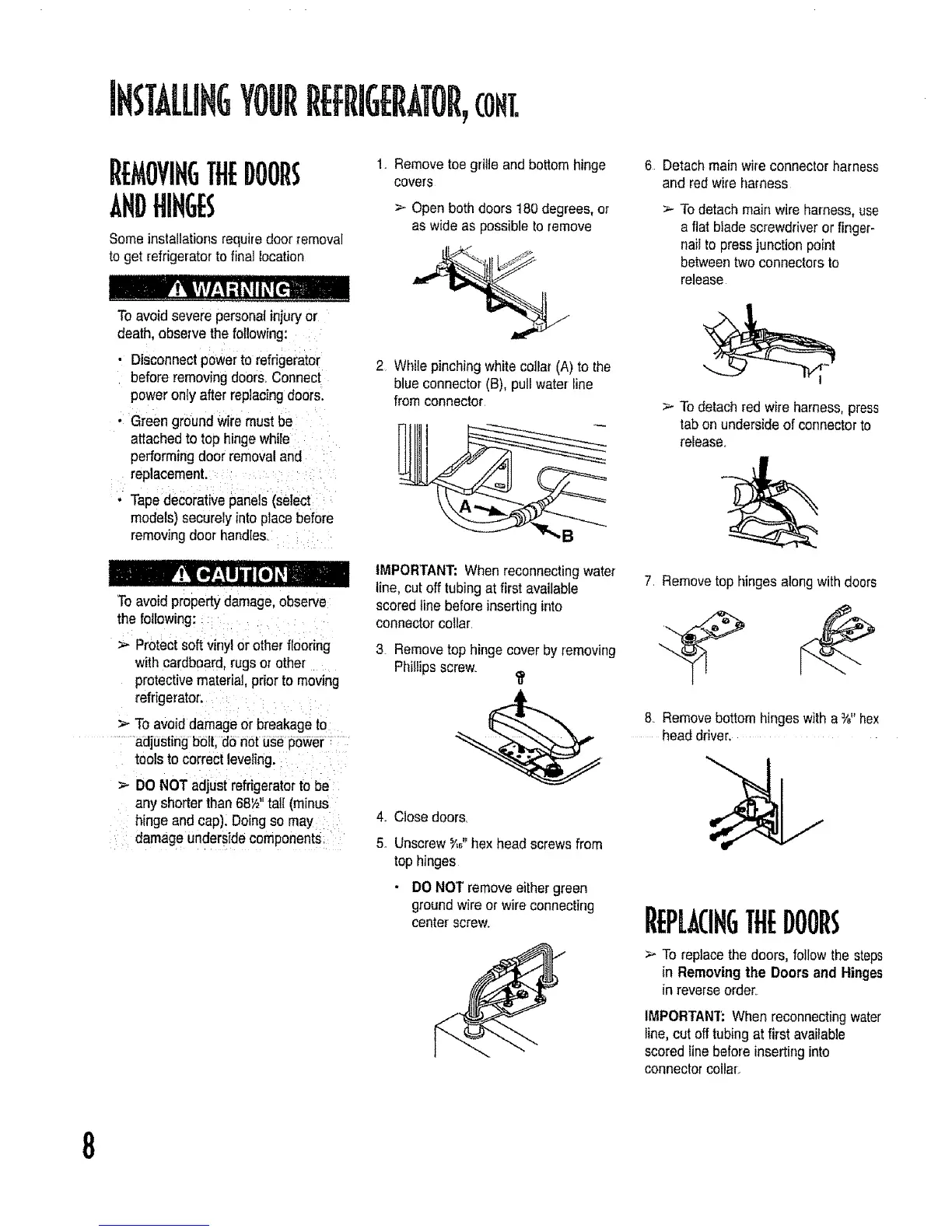

IHSTALLIHGYOURR[fRIG[RATOR,(OHT
REMOVIHGTHEDOORS
AHDfllHGES
Someinstallations requiredoor remova]
toget refrigeratorto final Iocation
Toavoid severe personatinjuryor
death, observe the following:
• Disconnectpower to refrigerator
beforeremoving doors.Connect
power onlyafter replacingdoors.
Greengroundwire must be :
attachedto top hingewhile
performingdoor removaland
replacement. _ : :
• Tapedecorative panels (select
models) securely into placebefore
removingdoor handles_
Toavoid propertydan'iage,observe
the following: _ ....
ProteCtSoftvinylor other flooring
with cardboard,rugsor other ......
protectivematerial, prior to moving
refrigerator:.....
>- To avoid damage Orbreakage to
.........a_dj0Stingbolt;do notuse powei-i
tools to correct leveling.
_- DO NOT adjust refrigeratortobe
anyshorterthan 68',2"tall (minus
hinge and cap)_Doingso may
damageUndersidecomponents i
1. Removetoe grilte and bottom hinge
covers
> Open both doors 180 degrees,or
as wideas possible to remove
2 Whilepinchingwhite collar (A) to the
blue connector (B), pull water line
from connector
B
IMPORTANT: When reconnectingwater
line, cut off tubing at first available
scored line before insertinginto
connectorcollar.
3. Removetop hinge cover byremoving
Phillipsscrew. _,
%
4. Close doors.
5. Unscrew_',_"hex head screws from
tophinges
DONO]' remove either green
groundwire or wire connecting
center screw.
6 Detachmainwire connectorharness
and red wireharness
_- To detach main wire harness, use
a flat bladescrewdriver or finger-
nail to pressjunction point
betweentwo connectors to
release
_- Todetach red wire harness,press
tabon undersideof connectorto
release°
7. Removetop hingesalongwith doors
8 Removebottomhingeswith a _/_"hex
head driver.
REPLACIHGTHEDOORS
_- To replacethe doors, followthe steps
in Removing the Doors and Hinges
in reverseorder_
IMPORTAN'I_:Whenreconnectingwater
line,cut offtubing at first available
scored finebefore insertinginto
connectorcollar:.
8
