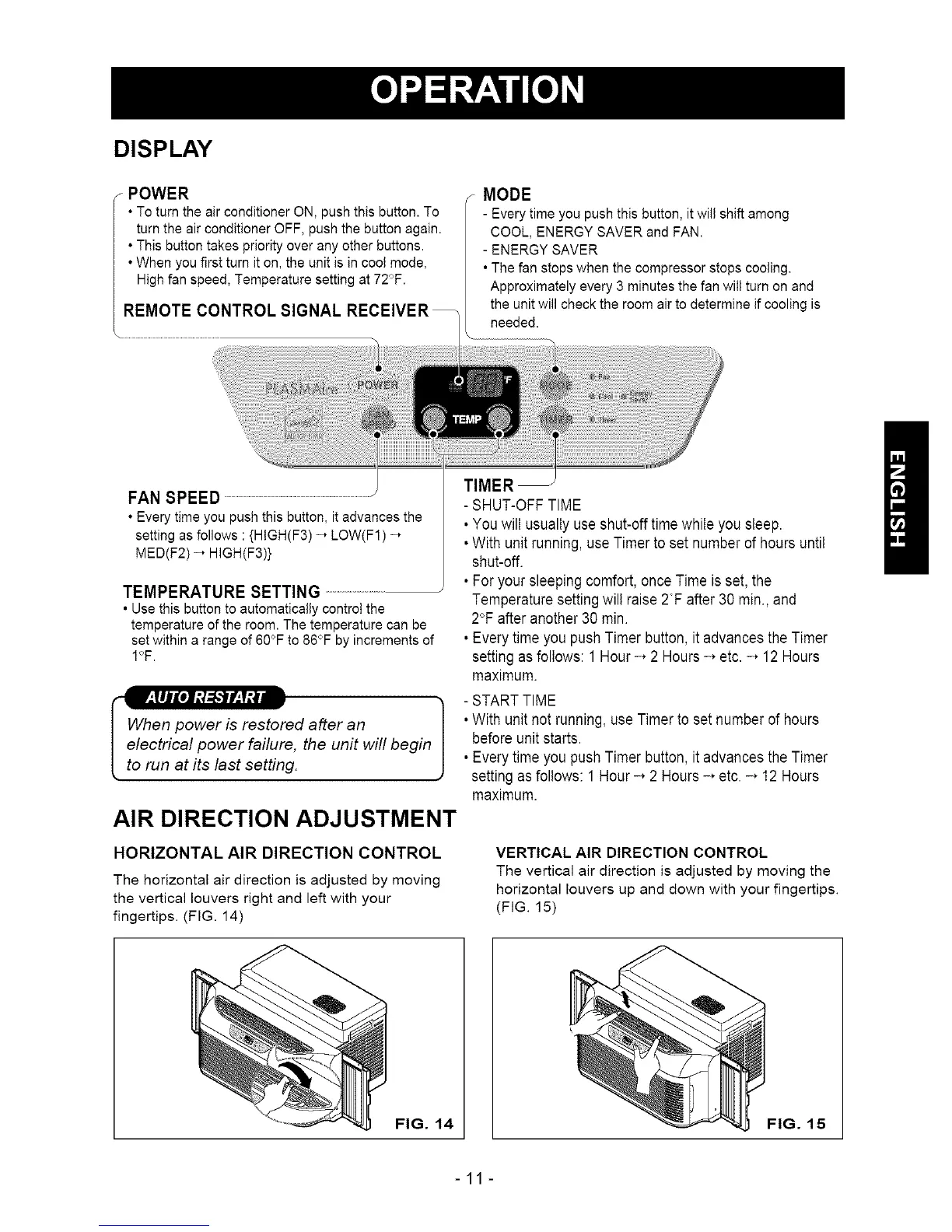

DISPLAY
POWER
• To turn the air conditioner ON, push this button. To
turn the air conditioner OFF, push the button again.
• This button takes priority over any other buttons.
• When you first turn it on, the unit is in cool mode,
High fan speed, Temperature setting at 72'_F.
_REMQTECO EIVER_
MODE
- Every time you push this button, it will shift among
COOL, ENERGY SAVER and FAN.
- ENERGY SAVER
• The fan stops when the compressor stops cooling.
Approximately every 3 minutes the fan will turn on and
the unit will check the room air to determine if cooling is
needed.
FAN SPEED
• Every time you push this button, it advances the
setting as follows : {HIGH(F3) -* LOW(F1) -*
MED(F2)-* HIGH(F3)}
TEMPERATURE SETTING ..........................................
• Use this button to automatically controt the
temperature of the room. The temperature can be
set within a range of 60_'F to 86°F by increments of
I°F.
1
When power is restored after an I
electrical power failure, the unit will begin
J
to run at its last setting.
AIR DIRECTION ADJUSTMENT
HORIZONTAL AIR DIRECTION CONTROL
The horizontal air direction is adjusted by moving
the vertical louvers right and left with your
fingertips. (FIG. 14)
TIMER
- SHUT-OFF TIME
• You will usuallyuse shut-off time while you sleep.
• With unit running,use Timer to set number of hours until
shut-off.
• For your sleepingcomfort,once Time is set, the
Temperaturesettingwill raise 2F after 30 min.,and
2°F after another 30 min.
• Everytime you pushTimerbutton, it advances the Timer
settingas follows: 1 Hour-, 2 Hours-* etc.-* 12 Hours
maximum.
- START TIME
• With unit not running, use Timer to set number of hours
before unit starts.
• Every time you push Timer button, it advances the Timer
settingasfollows:1 Hour-* 2 Hours-* etc.-* 12 Hours
maximum.
VERTICAL AIR DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louvers up and down with your fingertips.
(FIG. 15)
FIG. 14 FIG. 15
-11-
