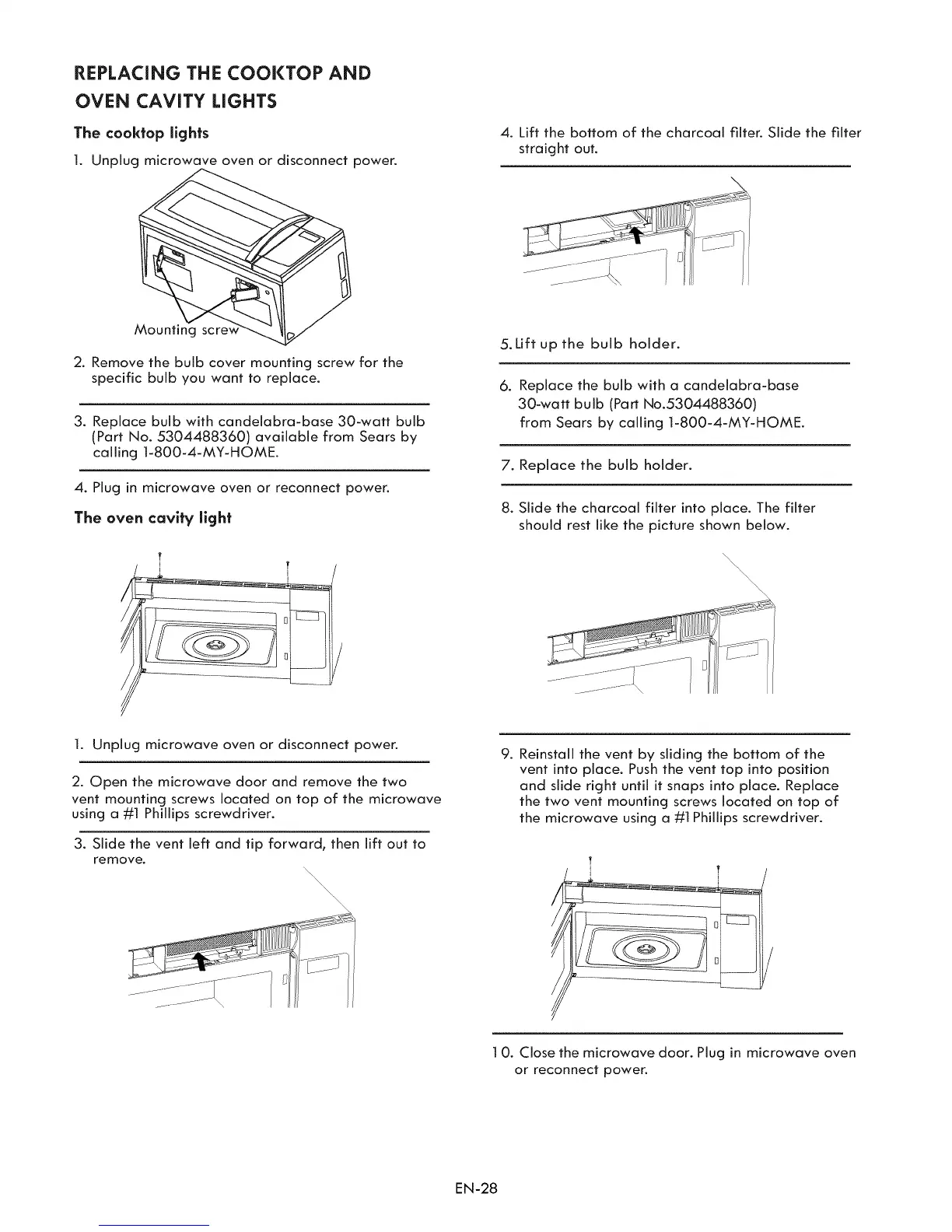

REPLACING THE COOKTOP AND
OVEN CAVITY LIGHTS
The cooktop llcjhts
1. Unplug microwave oven or disconnect power.
4. Lift the bottom of the charcoal filter. Slide the filter
straight out.
Mounting screw
2. Remove the bulb cover mounting screw for the
specific bulb you want to replace.
3. Replace bulb with candelabra-base 30-watt bulb
(Part No. 5304488360) available from Sears by
calling 1-800-4-MY-HOME.
4. Plug in microwave oven or reconnect power.
The oven cavity light
5. Lift up the bulb holder.
6. Replace the bulb with a candelabra-base
30-watt bu Ib (Part No.5304488360)
from Sears by calling 1-800-4-MY-HOME.
7. Replace the bulb holder.
8. Slide the charcoal filter into place. The filter
should rest like the picture shown below.
1. Unplug microwave oven or disconnect power.
2. Open the microwave door and remove the two
vent mounting screws located on top of the microwave
using a #1 Phillips screwdriver.
3. Slide the vent left and tip forward, then lift out to
remove.
\\\\\\\\\\\\\\\
9. Reinstall the vent by sliding the bottom of the
vent into place. Push the vent top into position
and slide right until it snaps into place. Replace
the two vent mounting screws located on top of
the microwave using a #1 Phillips screwdriver.
f
i I
I O. Close the microwave door. Plug in microwave oven
or reconnect power.
EN-28
