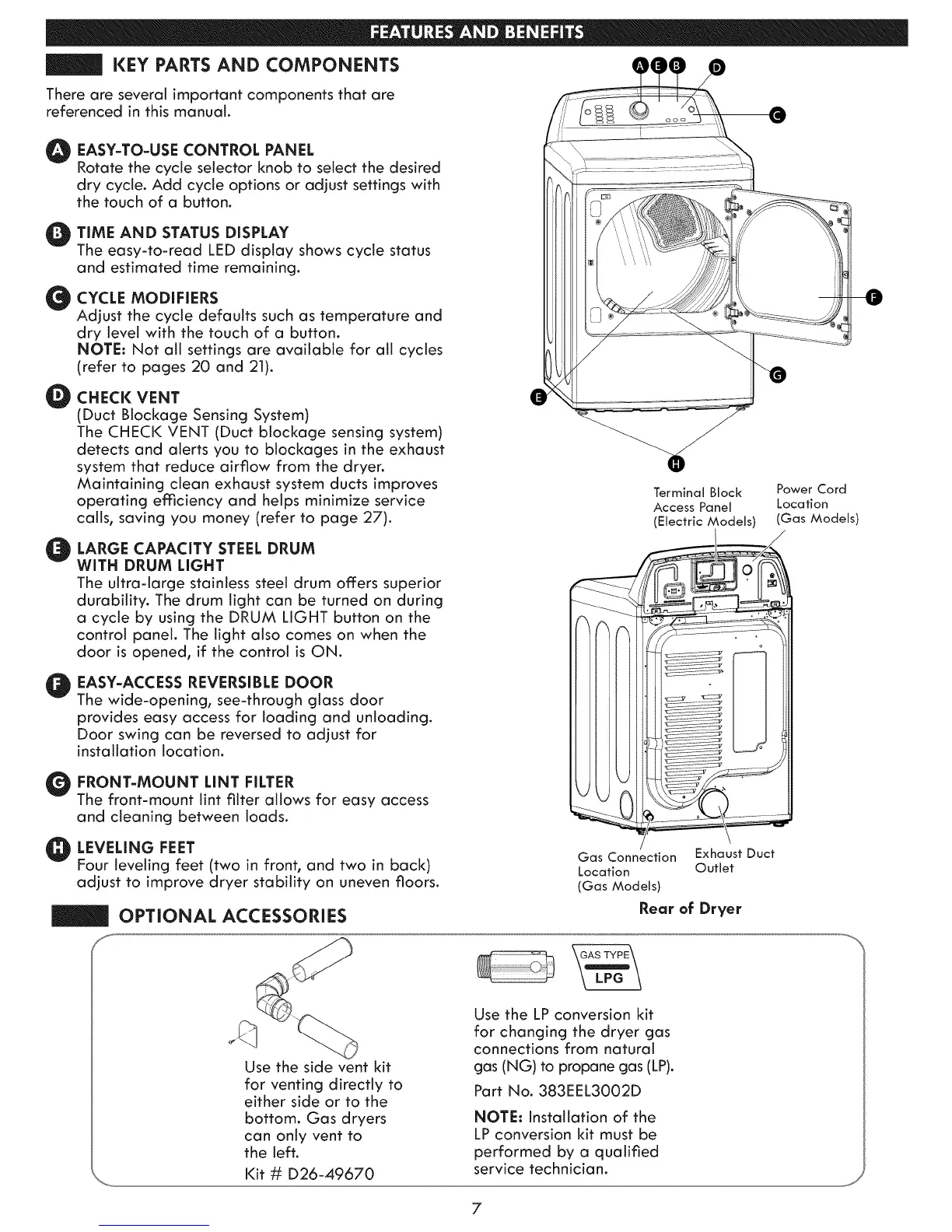

KEY PARTS AND COMPONENTS
There are several important components that are
referenced in this manual.
O ASY-TO-USE CONTROL PANEL
Rotate the cycle selector knob to select the desired
dry cycle. Add cycle options or adjust settings with
the touch of a button.
O IME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status
and estimated time remaining.
_ YCLE MODIFIERS
Adjust the cycle defaults such as temperature and
dry level with the touch of a button.
NOTE: Not all settings are available for all cycles
(refer to pages 20 and 21).
O CHECK VENT
(Duct Blockage Sensing System)
The CHECK VENT (Duct blockage sensing system)
detects and alerts you to blockages in the exhaust
system that reduce airflow from the dryer.
Maintaining clean exhaust system ducts improves
operating emciency and helps minimize service
calls, saving you money (refer to page 27).
LARGE CAPACITY STEEL DRUM
WiTH DRUM LIGHT
The ultra-large stainless steel drum offers superior
durability. The drum light can be turned on during
a cycle by using the DRUM LIGHT button on the
control panel. The light also comes on when the
door is opened, if the control is ON.
EASY-ACCESS REVERSIBLE DOOR
The wide-opening, see-through glass door
provides easy access for loading and unloading.
Door swing can be reversed to adjust for
installation location.
Terminal Block
Access Panel
(Electric Models)
Power Cord
Location
(Gas Models)
O RONT-MOUNT LINT FILTER
The front-mount lint filter allows for easy access
and cleaning between loads.
O EVELING FEET
Four leveling feet (two in front, and two in back)
adjust to improve dryer stability on uneven floors.
OPTIONAL ACCESSORIES
fo
Gas Connection Exhaust Duct
Location Outlet
(Gas Models)
Rear of Dryer
Use the side vent kit
for venting directty to
either side or to the
bottom. Gas dryers
can only vent to
the left.
Kit # D26-49670
Use the LP conversion kit
for changing the dryer gas
connections from natural
gas (NG) to propane gas (LP).
Part No. 383EEL3002D
NOTE: Installation of the
LP conversion kit must be
performed by a qualified
service technician.
7
To Next Page
