FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
EASY-TO-USE CONTROL PANEL
Rotate the cycle selector knob to select the desired
dry cycle. Add cycle options or adjust settings with the
touch of a button.
TIME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status and
estimated time remaining.
CYCLE MODIFIERS
Adjust the cycle defaults such as temperature and dry
level with the touch of a button.
NOTE: Not all settings are available for all cycles.
STEAM FEEDER
This lid provides access to the reservoir for the water
used by the dryer to create steam for the steam
cycles and other steam features.
CHECK VENT
(Duct Blockage Sensing System)
The CHECK VENT (Duct blockage sensing system)
detects and alerts you to blockages in the exhaust
system that reduce airfl ow from the dryer.
Maintaining clean exhaust system ducts improves
operating effi ciency and helps minimize service calls,
saving you money.
LARGE CAPACITY STEEL DRUM WITH DRUM LIGHT
The ultra-large stainless steel drum off ers superior
durability. The drum light can be turned on during a
cycle by using the DRUM LIGHT button on the control
panel. The light also comes on when the door is
opened, if the control is ON.
EASY-ACCESS REVERSIBLE DOOR
The wide-opening, see-through glass door provides
easy access for loading and unloading. Door swing
can be reversed to adjust for installation location.
FRONT-MOUNT LINT FILTER
The front-mount lint fi lter allows for easy access and
cleaning between loads.
LEVELING FEET
Four leveling feet (two in front, and two in back)
adjust to improve dryer stability on uneven fl oors.

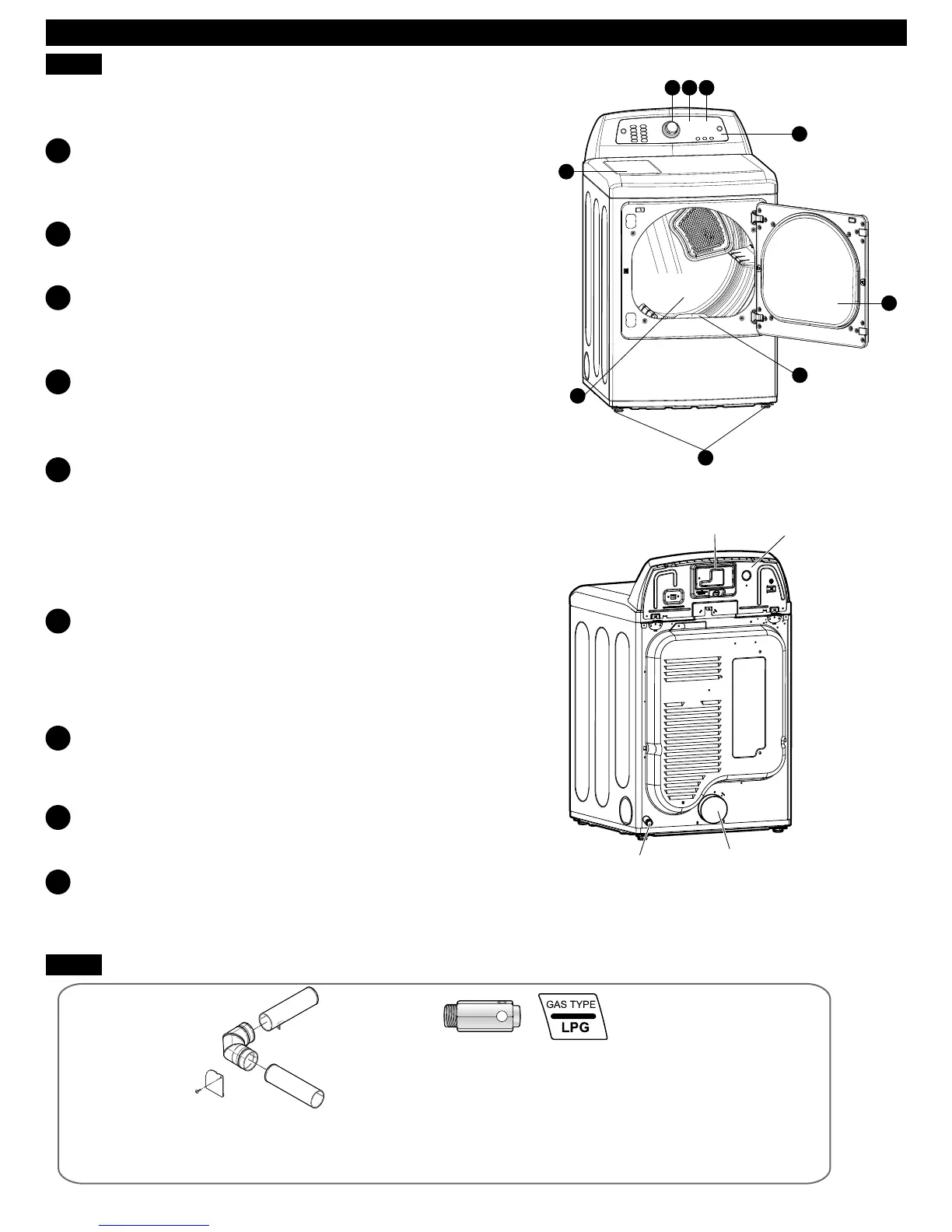

There are several important components that are
referenced in this manual.
A
B
C
D
E
F
G
H
Rear of Dryer
Terminal Block
Access Panel
(Electric Models)
Power Cord
Location
(Gas Models)
Exhaust Duct
Outlet
Gas Connection
Location
(Gas Models)
OPTIONAL ACCESSORIES
Use the side vent kit for venting directly to
either side or to the bottom. Gas dryers can
not be vented to the right. Kit # D26-49670
Use the LP conversion kit for changing the dryer gas
connections from natural gas (NG) to propane gas
(LP). Part No. 383EEL3002D
NOTE: Installation of the LP conversion kit must
be performed by a qualifi ed service technician in
accordance with local codes .
I
H
A E B
F
G
D
C
I
