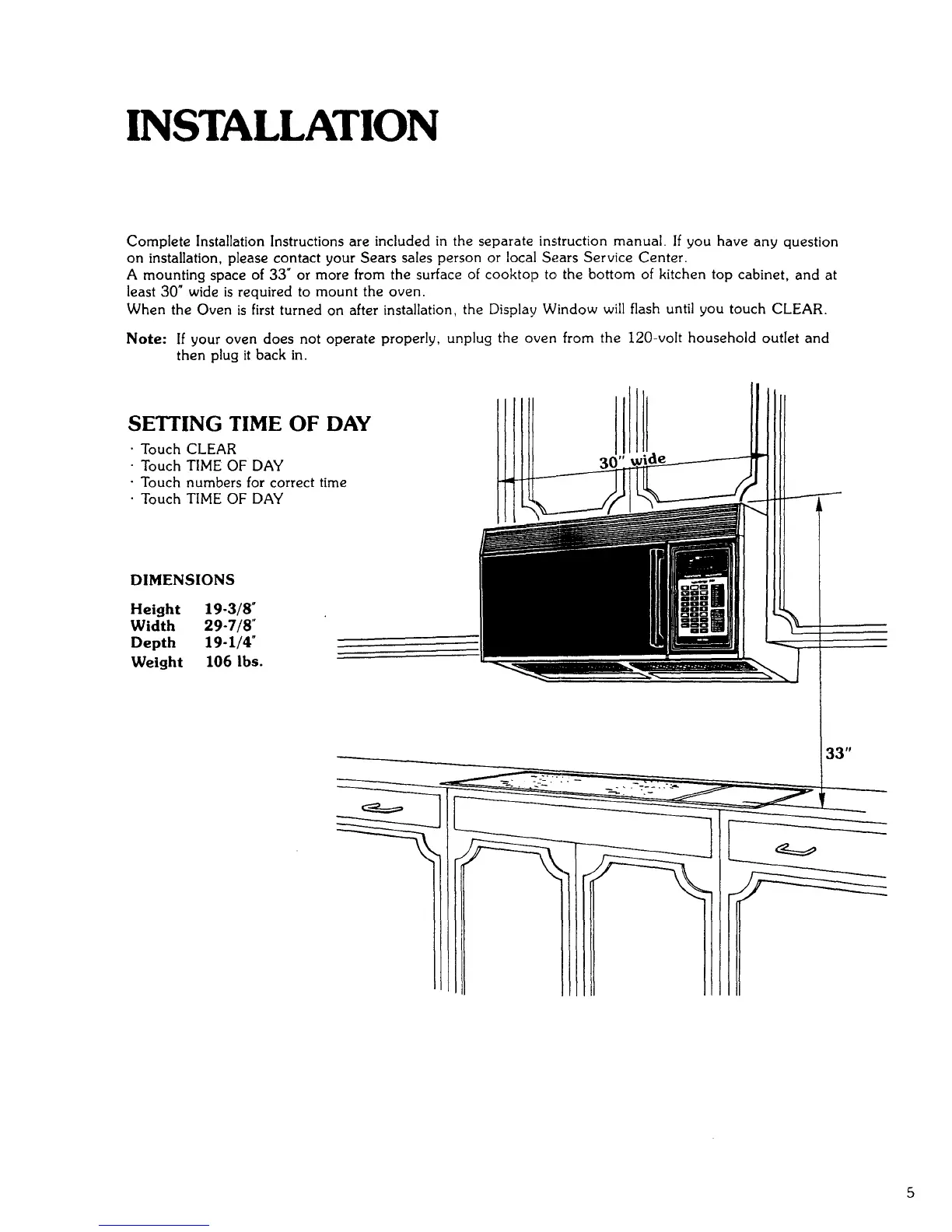

INSTALLATION
Complete Installation Instructions are included in the separate instruction manual. If you have any question
on installation, please contact your Sears sales person or local Sears Service Center.
A mounting space of 33" or more from the surface of cooktop to, the bottom of kitchen top cabinet, and at
least 30" wide is required to mount the oven.
When the Oven is first turned on after installation, the Display Window will flash until you touch CLEAR.
Note: If your oven does not operate properly, unplug the oven from the 120-volt household outlet and
then plug it back in.
SETTING TIME OF DAY
• Touch CLEAR
• Touch TIME OF DAY
• Touch numbers for correct time
• Touch TIME OF DAY
DIMENSIONS
Height 19-3/8"
Width 29-7/8"
Depth 19-1/4"
Weight 106 lbs.
33"
5
