2

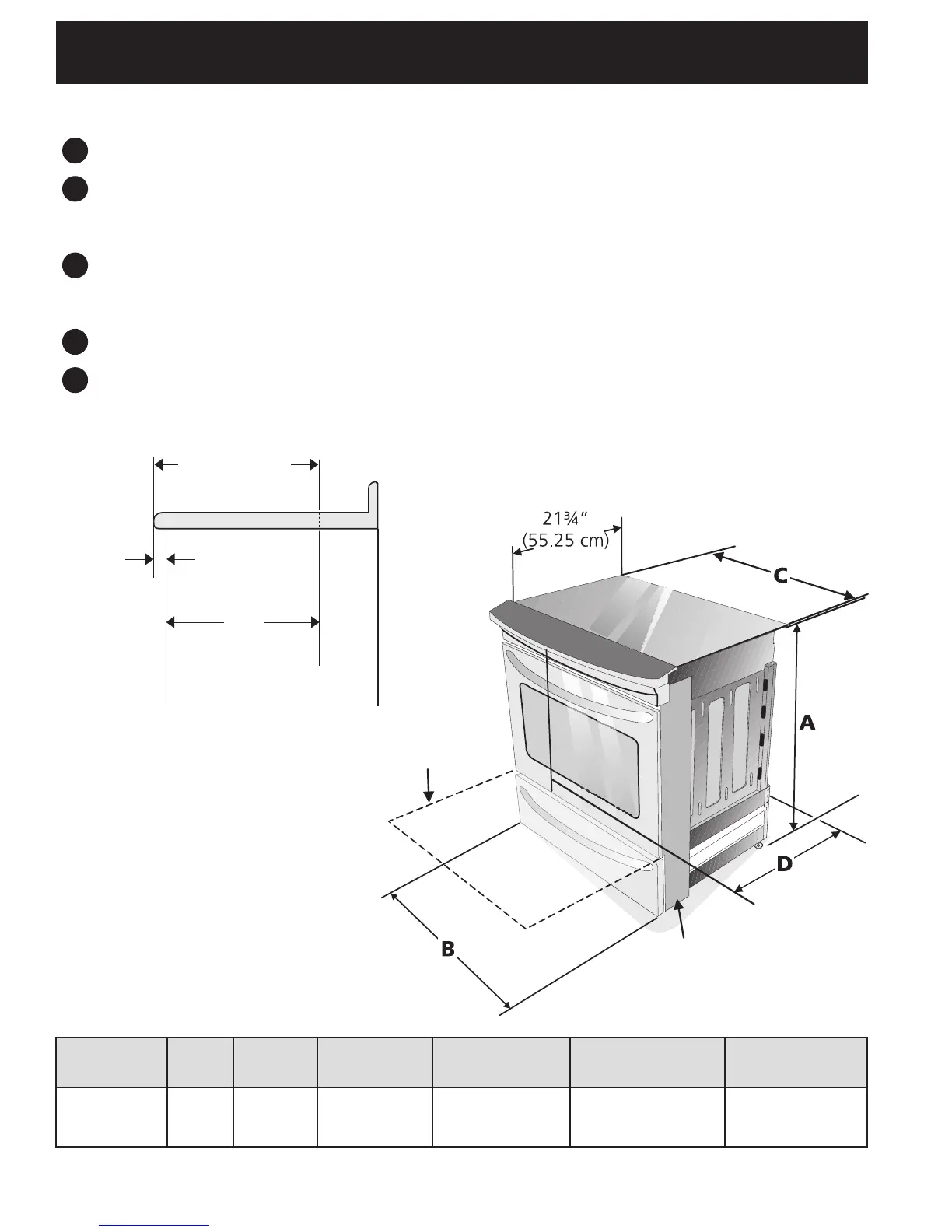

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
1 1/8"
(2.86 cm)
FRONT
OF
CABINET
F
Ref.
22 7/8" (58.1 cm) min.
23 1/4" (59.05 cm) max.
(see Note 4)
Side Panel
Door Open
(see note 5)
NOTES:
1
Do not pinch the power supply cord between the range and the wall.
2
Do not seal the range to the side cabinets.
3
24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet
when the bottom of wood or metal cabinet is protected by not less than 1/4" (0.64 cm)
flame retardant millboard covered with not less than No. 28 MSG sheet metal, 0.015"
(0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum, or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is unprotected.
4
For cutouts below 22 7/8"(58.1 cm), appliance will slightly show out of the cabinet.
5
Allow at least 19 ¼" (48.9 cm) clearance for door depth when it is open.
A. HEIGHT (Under
Cooktop)
B. WIDTH
C. COOKTOP
WIDTH
D. TOTAL DEPTH
TO FRONT OF
RANGE
E. CUTOUT WIDTH***
(Countertop and
cabinet)
F. CUTOUT DEPTH G. HEIGHT OF
COUNTERTOP
35 5/8" (90.5 cm) - 30" 31 5/16" 28 5/16" (71,9 cm) 30±1/16" 21 3/4" (55,2 cm) Min.
22 1/8" (56,2 cm) Max
24" (61 cm) Min. with
backguard
36 5/8" (93 cm) Max.
36 5/8" (93 cm) (76,2 cm) (79.5 cm) (76,2±0,15 cm) 35 5/8" (90.5 cm) Min.
