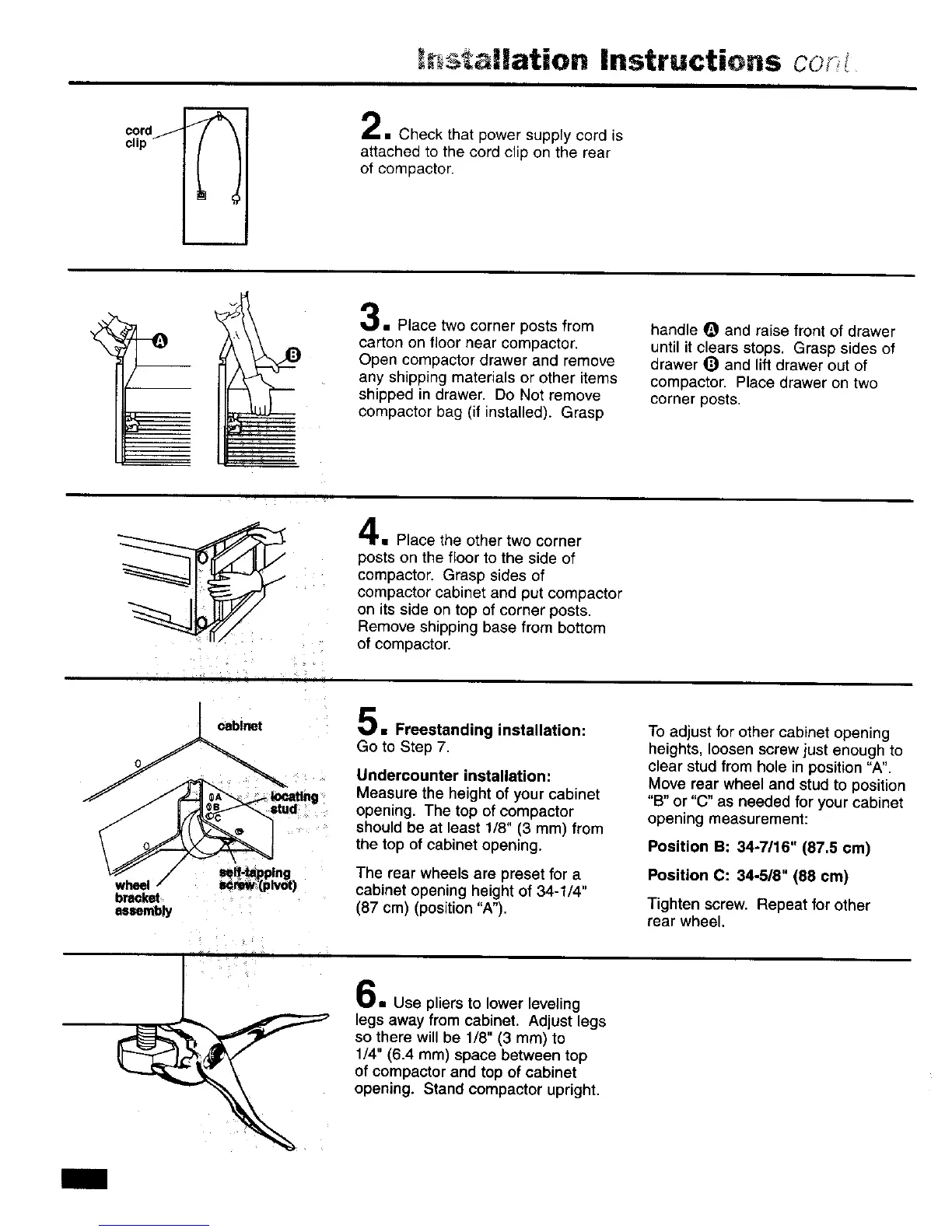

h t llation Instructions con
cord/
clip
m
. Check that power supply cord is
attached to the cord clip on the rear
of compactor.
. Place two corner posts from
carton on floor near compactor,
Open compactor drawer and remove
any shipping materials or other items
shipped in drawer, Do Not remove
compactor bag (if installed). Grasp
handle Q and raise front of drawer
until it clears stops. Grasp sides of
drawer _) and lift drawer out of
compactor. Place drawer on two
corner posts.
'i
= Place the other two corner
posts on the floor to the side of
compactor. Grasp sides of
compactor cabinet and put compactor
on its side on top of corner posts.
Remove shipping base from bottom
of compactor.
wheel /
bracket
assembly
cabinet
= Freestanding installation:
Go to Step 7.
Undercounter installation:
Measure the height of your cabinet
opening. The top of compactor
should be at least 1/8" (3 mm) from
the top of cabinet opening.
The rear wheels are preset for a
cabinet opening height of 34-1/4"
(87 cm) (position "A°),
= Use pliers to lower leveling
legs away from cabinet. Adjust legs
so there will be 1/8" (3 ram) to
1/4" (6.4 ram) space between top
of compactor and top of cabinet
opening. Stand compactor upright.
To adjust for other cabinet opening
heights, loosen screw just enough to
clear stud from hole in position "A".
Move rear wheel and stud to position
"B" or "C" as needed for your cabinet
opening measurement:
Position B: 34-7/16" (87.5 cm)
Position C: 34-518" (88 cm)
Tighten screw, Repeat for other
rear wheel.
To Next Page
