5
KENMORE INDUCTION COOKTOP INSTALLATION INSTRUCTIONS
If the cable from appliance is equipped with 4 wires:
Where local codes permit connecting the appliance-
grounding conductor (wire) to the neutral (white)
wire (see gure 5):
This appliance is manufactured
with a white neutral power supply and a frame
connected copper wire. The frame is grounded by
connection of grounding lead to neutral lead at the
termination of the conduit, if used in USA, in a new
branch circuit installation (1996 NEC), mobile home,
recreational vehicles, where local code do not permit
grounding trough the neutral (white) wire or in
Canada, disconnect the white and green lead from
each other and use ground lead to ground unit in
accordance with local codes, connect neutral lead to
branch circuit-neutral conductor in usual manner see
Figure 6. If your appliance is to be connected to a 3
wire grounded junction box (US only), where local
code permit connecting the appliance-grounding
conductor to the neutral (white) see Figure 5.

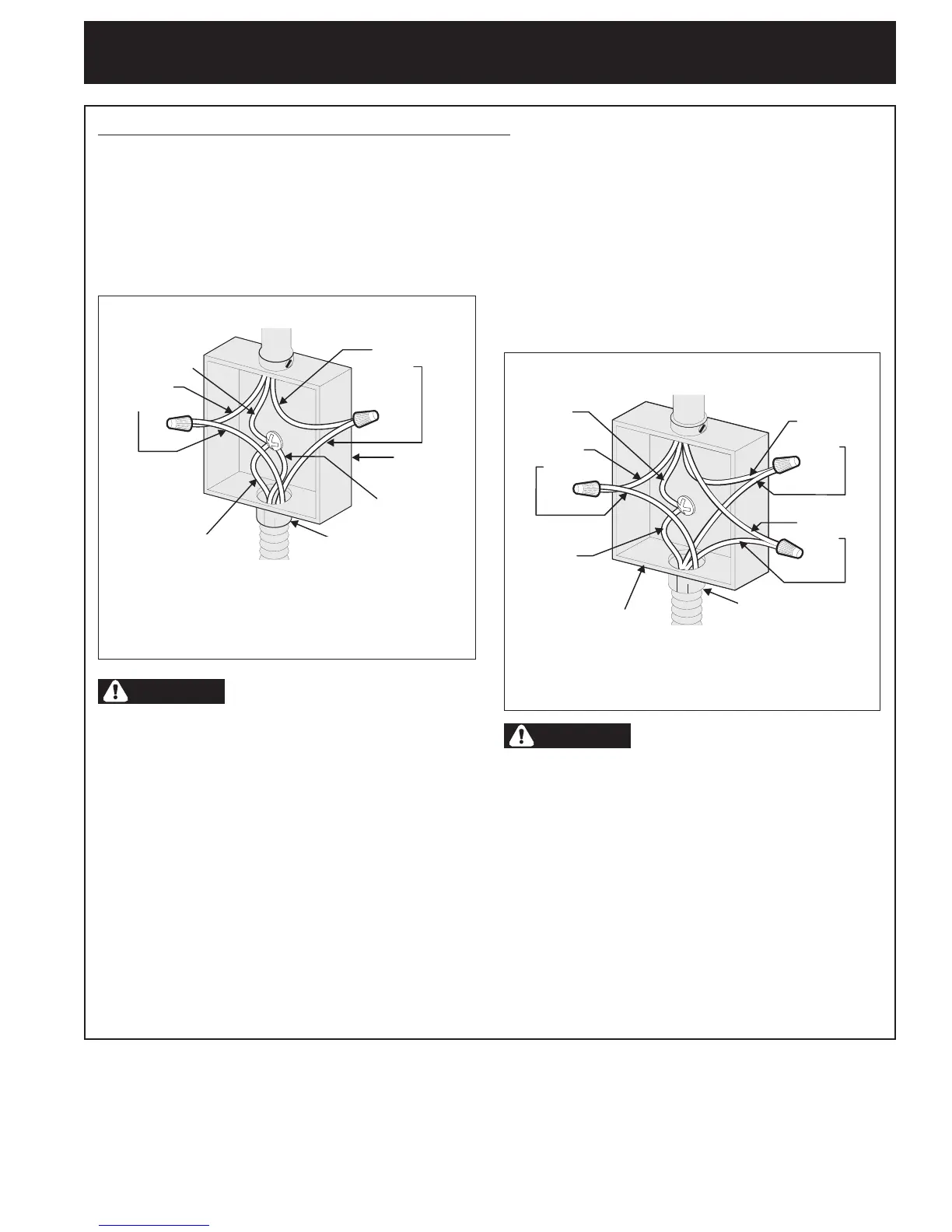

Figure 5
3-WIRE GROUNDED JUNCTION BOX
Junction
Wires
White Wire
Wires
Wire)
White Wire
If cooktop is used in a new branch circuit installation
(1996 NEC), mobile home, recreational vehicle,
or where local codes DO NOT permit grounding
through the neutral (white) wire (see gure 6):
appliance cable wires.
Figure 6
4-WIRE GROUNDED JUNCTION BOX
Wire
listed)
If connecting to a 4-wire power
supply cable electrical system, the appliance frame
connected ground wire MUST NOT be connected to
the neutral wire of the 4-wire electrical system.
NOTE TO ELECTRICIAN:
temperatures much higher than temperature rating of
gauge alone.
Wires
White
Wires
Wires
