2-18
PLAN VENT SYSTEM

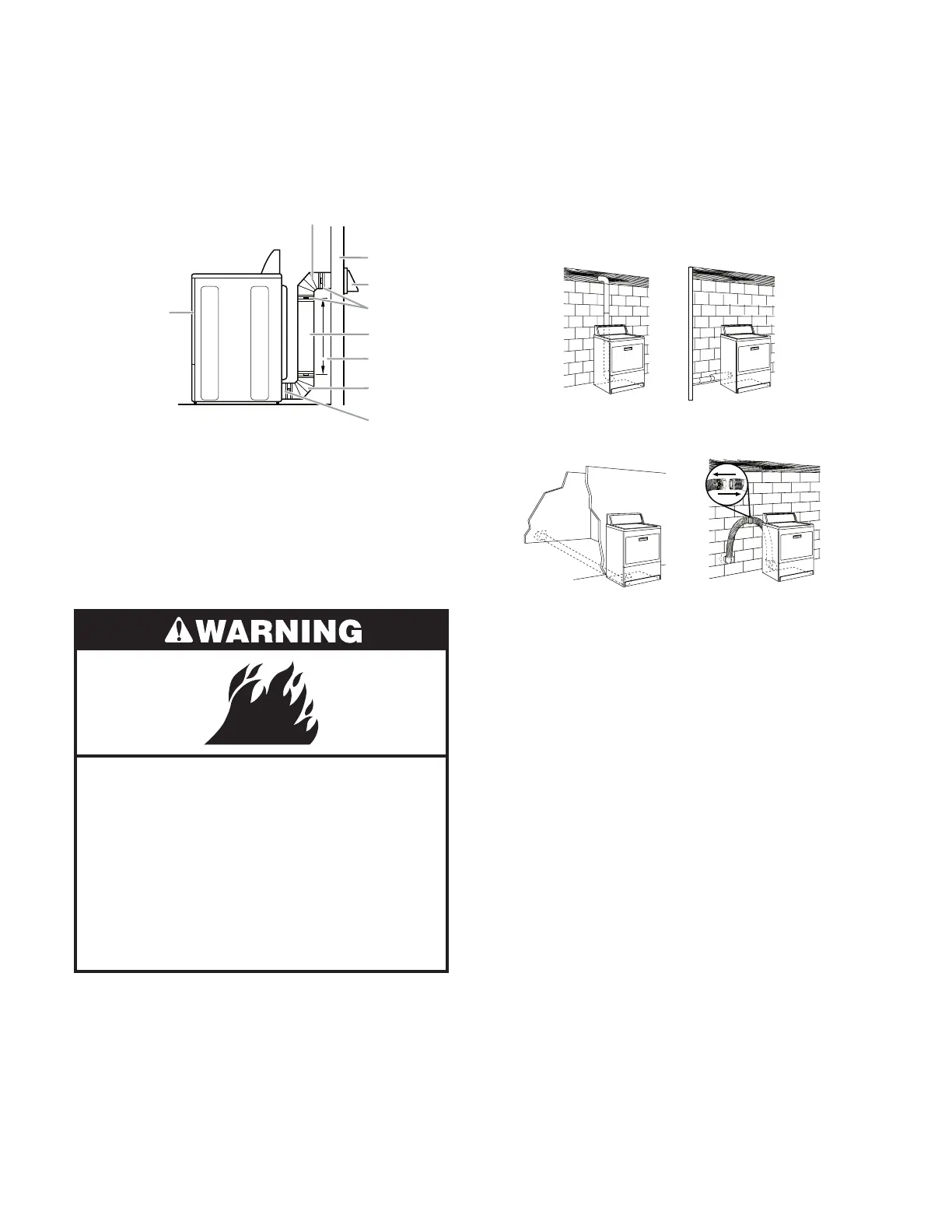

Recommended exhaust installations
Typical installations vent the dryer from the
rear of the dryer. Other installations are pos
-
sible.
A. Dryer
B. Elbo
w
C. Wall
D.
Exhaust hood
E. Clamps
F. Rigid metal or flexible metal ven
t
G. Vent length necessary to connect
elbows
H. Exhaust outlet
A
B
B
C
D
E
F
Optional exhaust installations
Venting systems come in many varieties. Se-
lect the type best for your installation.
. Standard rear offset exhaust installation
B. Rear
exhaust installation to left or right side
A B
NOTE: The following kits for alternate instal-
lations are available for purchase. For further
information, please call 1-800-4-MY-HOME
®
(1-800-469-4663).
Rear exhaust installation to left or right side:
Part Number 8212504
Bottom exhaust installation:
Part Number 8212503
Over-the-Top installation:
Part Number 26-49900
•
•
•
C. Bottom exhaust installation
D. Over-the-top installation
(also available
with one offset elbow)
C
D
Fire Hazard
Cover unused exhaust hole with the
following kit:
8212503
Contact your local dealer.
Failure to follow these instructions
can result in death, fire, electrical
shock, or serious
injury.
This dryer can be converted to exhaust out the
bottom. If you prefer, you may contact your lo
-
cal dealer to have the dryer converted. This
dryer can also be exhausted from the rear to
either the right or left side. Optional kits for
these exhaust installations are needed. Re
-
fer to the manufacturer’s instructions for kit
installation instructions.
