Bottom Rails to Leg Frames (1)
IMPORTANT
- Assemble grill cart on an even, flat surface. Use a level to confirm that surface is even and flat.
- For ease of cart assembly Leg Frames and Bottom Rails are numbered.
- Unless instructed otherwise, securely tighten all screws in each assembly step before proceeding to the next step.
□

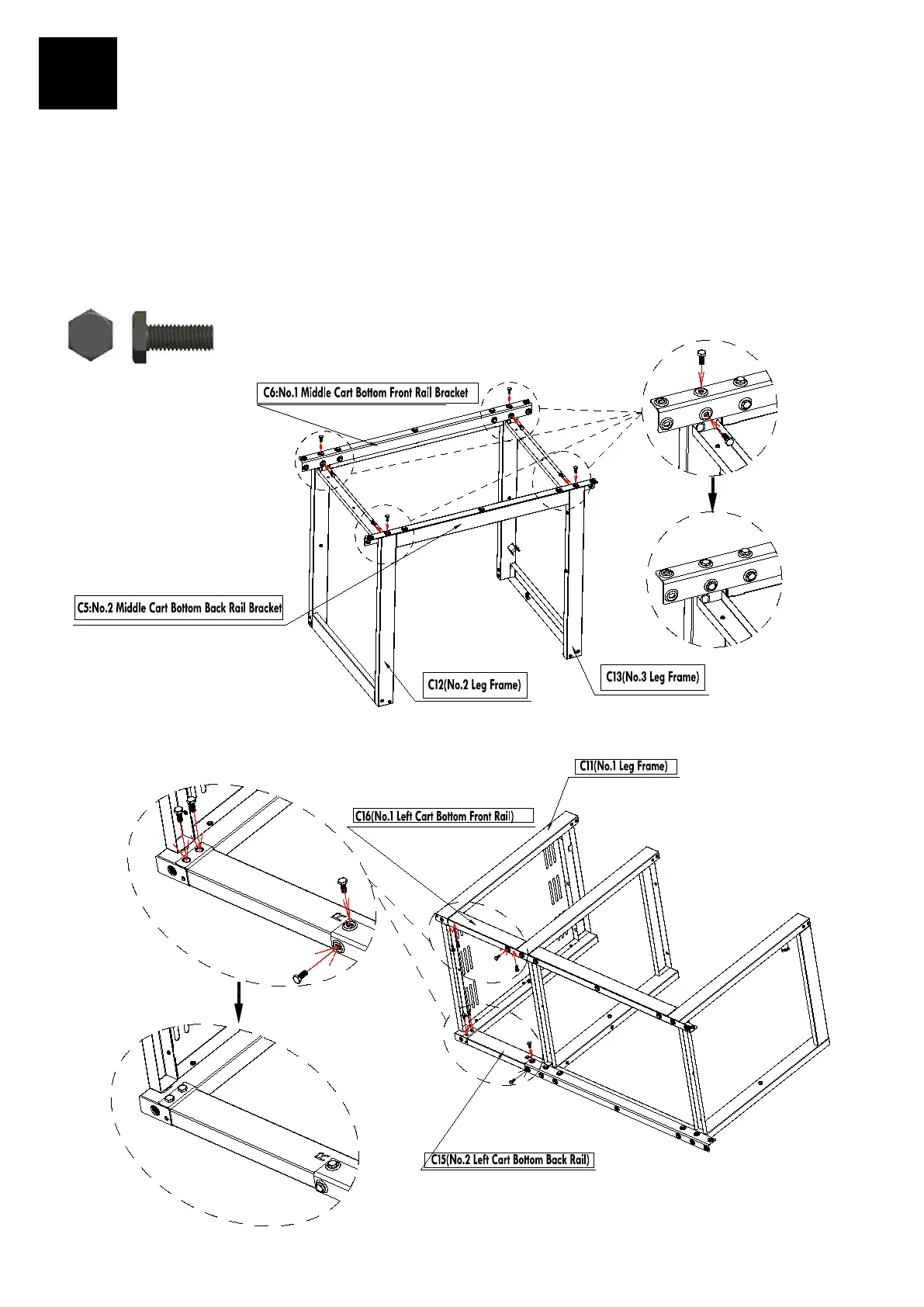

Use (8) M6X15 Hex Screws to attach C6: No.1 Middle Cart Bottom Front Rail Bracket and C5: No.2 Middle
Cart Bottom Back Rail Bracket to C12(No.2 Leg Frame) and C13(No.3 Leg Frame) as shown. Do not fully tighten
screws yet.(A).
□
Use (8) M6X15 Hex Screws to attach C16(No. 1 Left Cart Bottom Front Rail) and C15(No.2 Left Cart Bottom
Back Rail) to C11(No. 1 Leg Frame) as shown. Do not fully tighten screws yet. (B)
18
M6X15 Hex Screw Qty: 16 pcs
To Next Page
