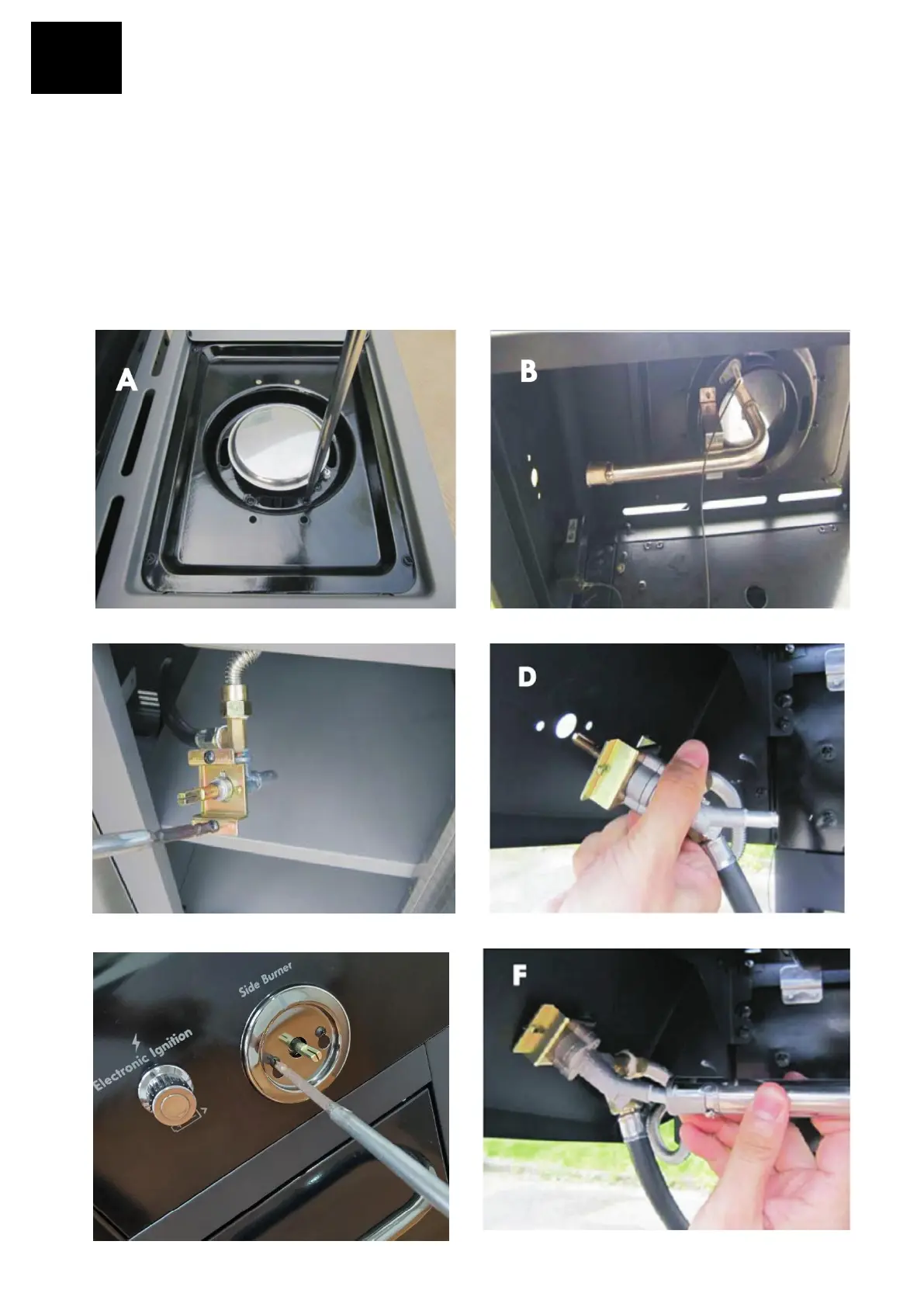

Side Burner
□ Remove the sid e burner grate. Loosen the burner in the side burner shelf (B). To loosen, unscrew and remove two front
screws holding side burner in place. (A). Note: Do not loosen electrode screw.
□ Remove the 2 pre-installed screws from the valve face and set them aside. (C)
□ Insert valve face stem through hole in fascia. (D) Attach bezel to fascia and valve face with previously removed 2 screws.
Attach bezel with black mark facing up (E).
□ Place side burner tube over the valve, making sure that valve is inside side burner tube.(F)
□ Push control knob onto side burner valve face stem. (G)
□ Reattach side burner to side burner shelf with the 2 previously removed screws. Replace side burner grate. (H)
□ Connect both igniter wires to the igniter module on the underside of the side burner shelf fascia.(I)
□ Unscrew igniter cap from control panel. Insert (1) AAA battery (provided in blister pack into battery slot with positive end
(+) facing outward. Screw igniter cap back onto panel. (J)
