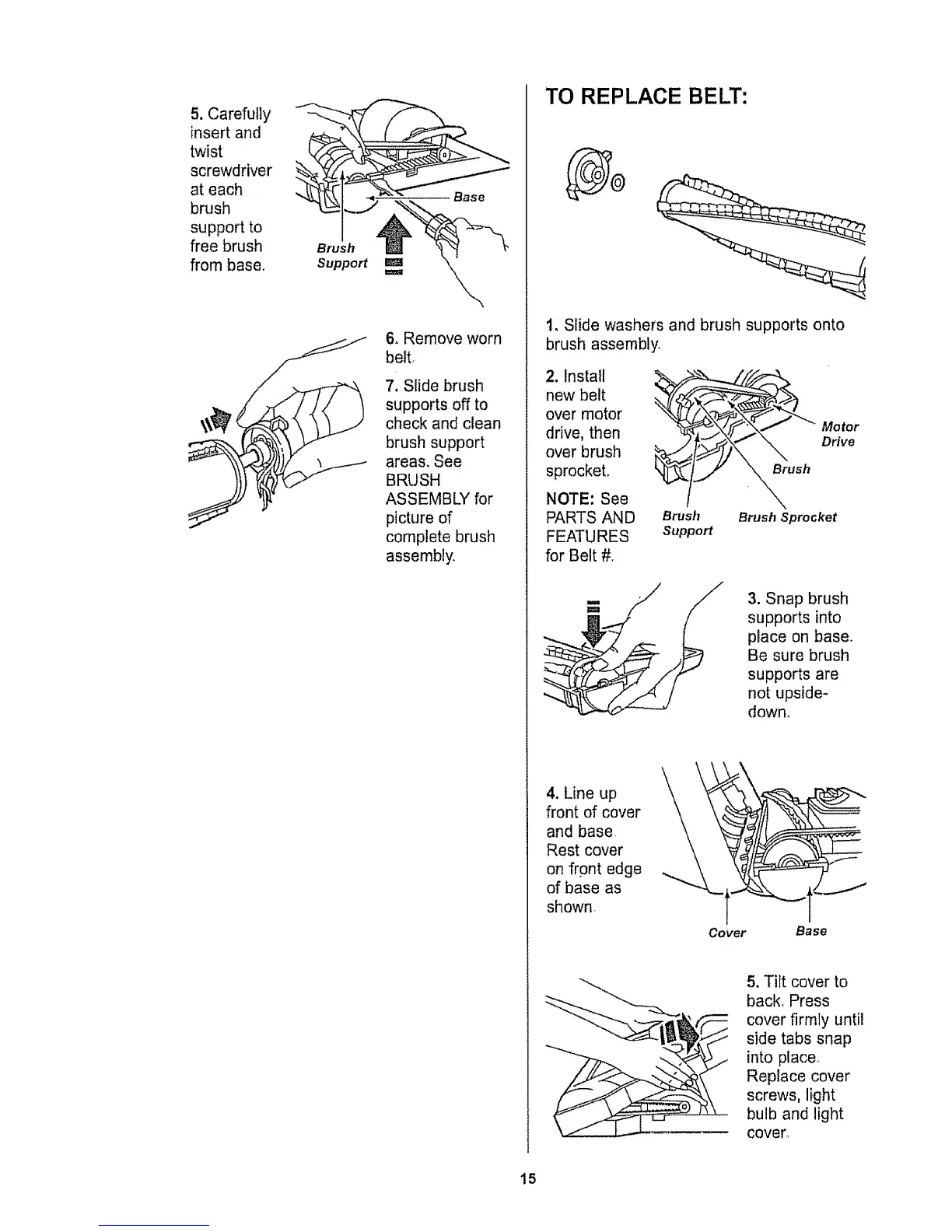

5. Carefully
insert and
twist
screwdriver
at each
brush
support to
free brush
from base°
Brush
Support
6. Remove worn
belt,
7. Slide brush
supports off to
check and clean
brush support
areas, See
BRUSH
ASSEMBLY for
picture of
complete brush
assembly.
TO REPLACE BELT:
1, Slide washers and brush supports onto
brush assembly,
2. Install
new belt
over motor
drive, then
over brush
sprocket.
NOTE: See
PARTS AND
FEATURES
for Belt #,
Brush
Brush Brush Sprocket
Support
Motor
Drive
3. Snap brush
supports into
place on baser
Be sure brush
supports are
not upside-
down,
4, Line up
front of cover
and base
Rest cover
on frpnt edge
of base as
shown,
CO ver
Base
5. Tilt cover to
back_ Press
cover firmly until
side tabs snap
into place_
Replace cover
screws, light
bulb and light
cover,,
!5
