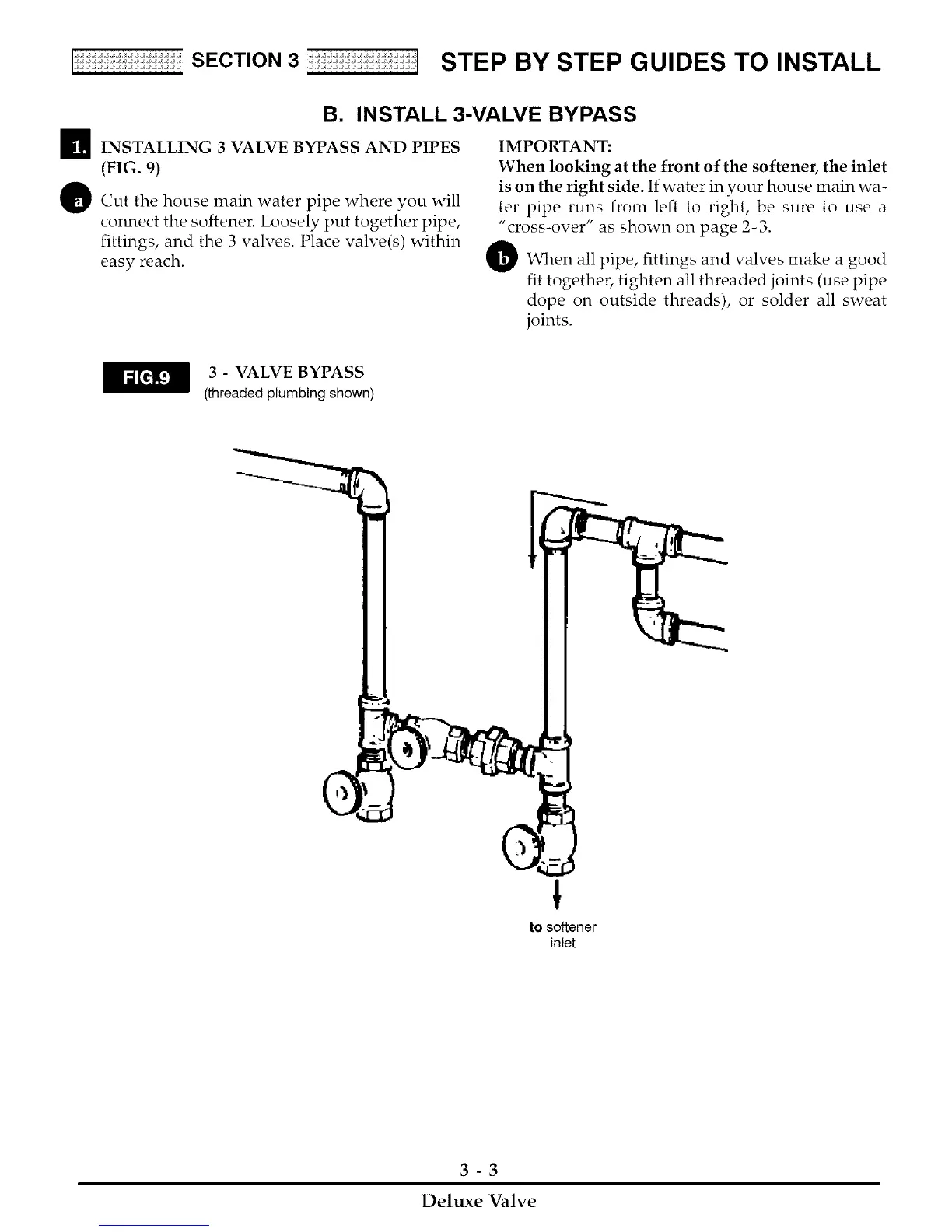

[i!i! ::i:i ! ::i:i ! :i SECTION 3 STEP BY STEP GUIDES TO INSTALL
B. INSTALL 3-VALVE BYPASS
_ INSTALLING 3 VALVE BYPASS AND PIPES
(FIG. 9)
O Cut the house main water pipe where you will
connect the softener. Loosely put together pipe,
fittings, and the 3 valves. Place valve(s) within
easy reach.
IMPORTANT:
When looking at the front of the softener, the inlet
is on the right side. If water in your house main wa-
ter pipe runs from left to right, be sure to use a
"cross-over" as shown on page 2-3.
When all pipe, fittings and valves make a good
fit together, tighten all threaded joints (use pipe
dope on outside threads), or solder all sweat
joints.
3 - VALVE BYPASS
(threadedplumbing shown)
1
to softener
inlet
3-3
Deluxe Valve
