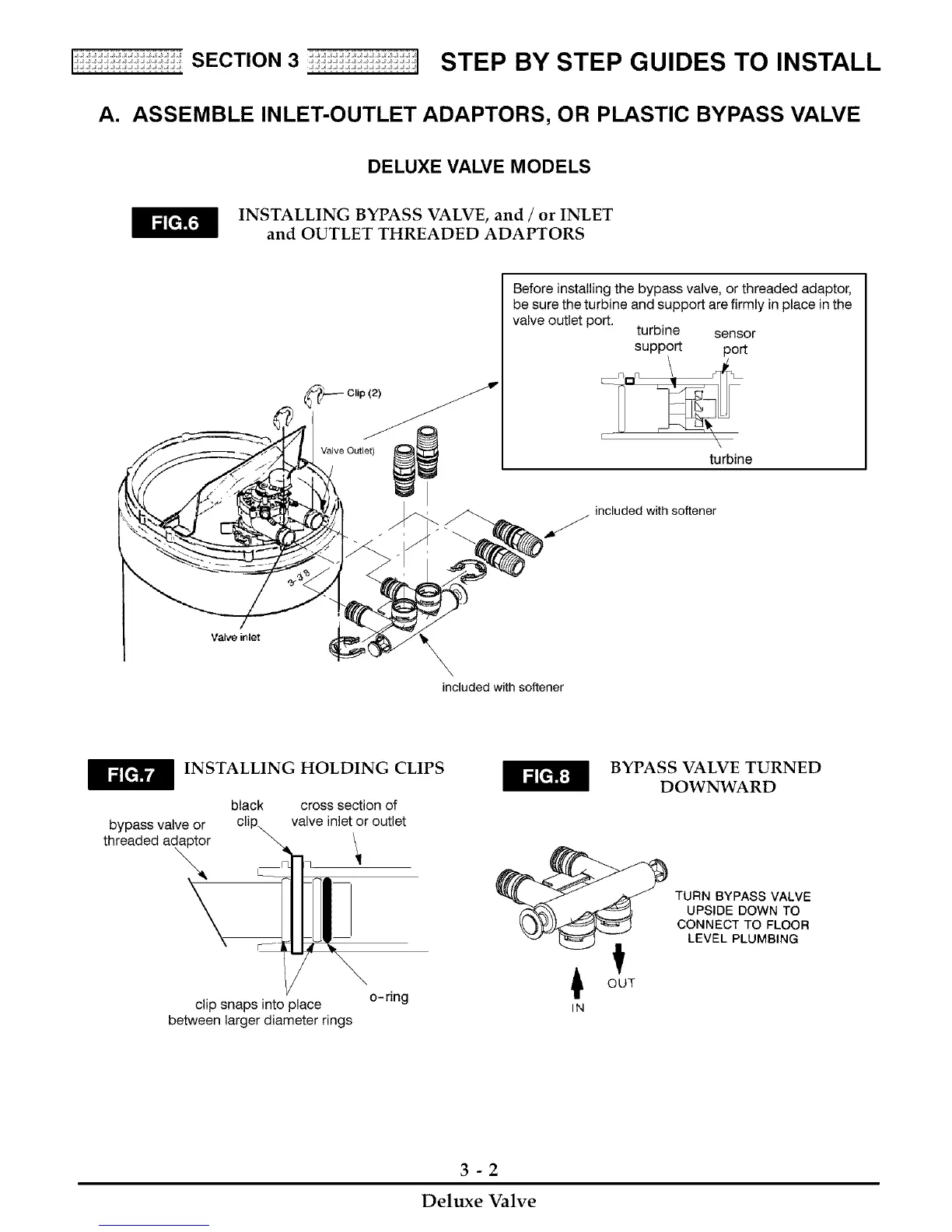

[i!i! ::i:i ! ::i:i ! :i SECTION 3 STEP BY STEP GUIDES TO INSTALL
A. ASSEMBLE INLET-OUTLET ADAPTORS, OR PLASTIC BYPASS VALVE
DELUXE VALVE MODELS
INSTALLING BYPASS VALVE, and / or INLET
and OUTLET THREADED ADAPTORS
Before installing the bypass valve, or threaded adaptor,
be sure the turbine and support are firmly in place in the
valve outlet port. turbine sensor
support port
S
\
turbine
included with softener
Valve inlet
included with softener
INSTALLING HOLDING CLIPS
black
bypass valve or
threaded adaptor
cross section of
valve inlet or outlet
clip snaps into place o-ring
between larger diameter rings
BYPASS VALVE TURNED
DOWNWARD
IN
TURN BYPASS VALVE
UPSIDE DOWN TO
CONNECT TO FLOOR
LEVEL PLUMBING
3-2
Deluxe Valve
