Kenner KNL100E-01 User Manual

13
3. Use the batteries as the power source and only use the solar panel to
charge the batteries
If you only use the solar panel to charge the batteries, please note the power of the solar panel should be at
least 20W. The gate opener can works for 10 cycles per day if there is no other accessory except
photocell & electric lock & push button& alarm lamp connected to the control board. The capacity of the

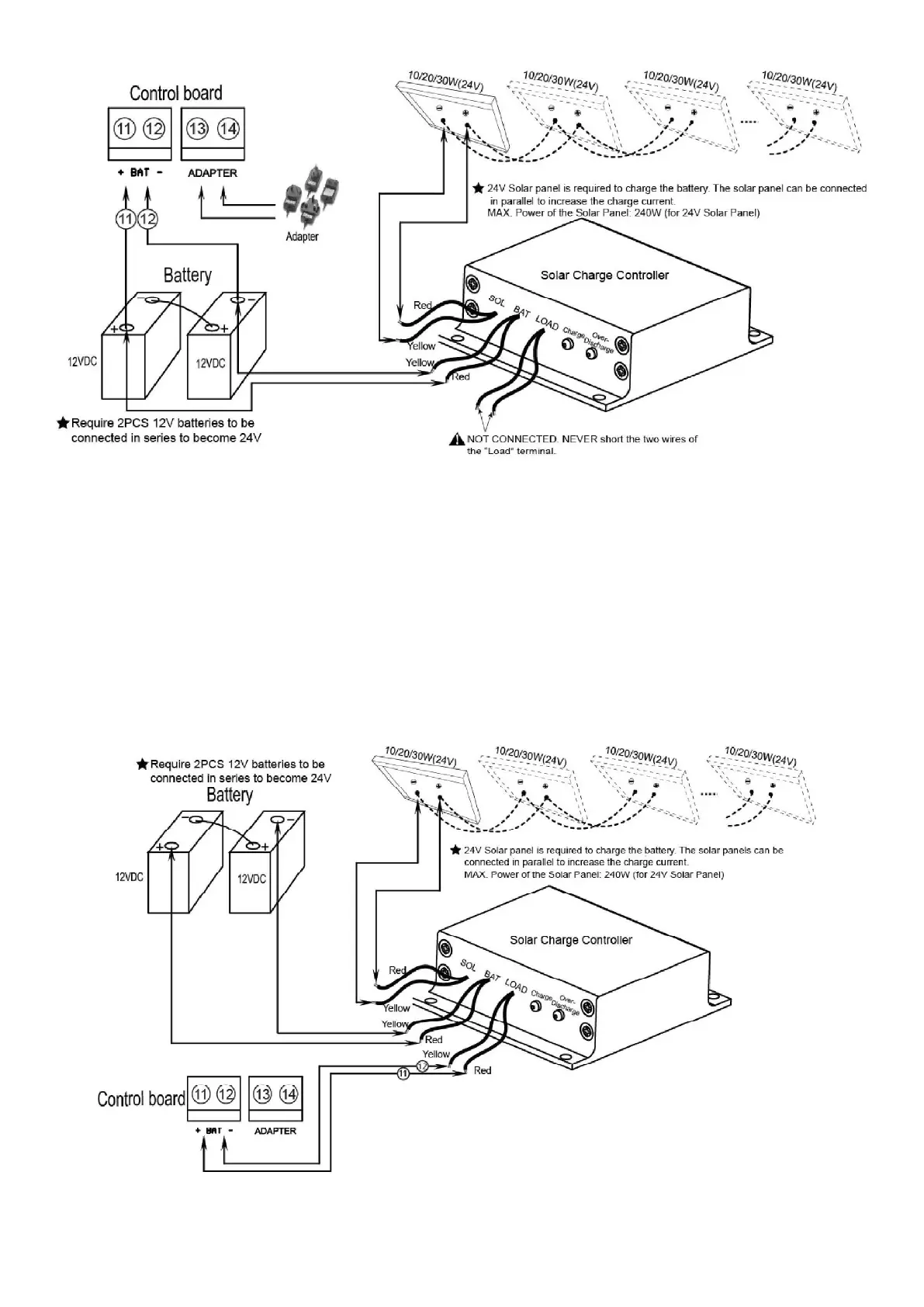

batteries and the power of the solar panel should be enlarged if you want to use more. You can connect the
solar panel and the solar charge controller refers to the following illustration.
4. Use the 24VDC AC-DC power supply as the power source if AC electricity is accessible and stable
The gate opener can be powered by an AC to DC 24V Power Supply (NOT INCLUDED). Instead of using

Kenner KNL100E-01 Specifications

General

Brand	Kenner
Model	KNL100E-01
Category	Gate Opener
Language	English
