Kenner KNL100E-01 - Control Board Wiring

14

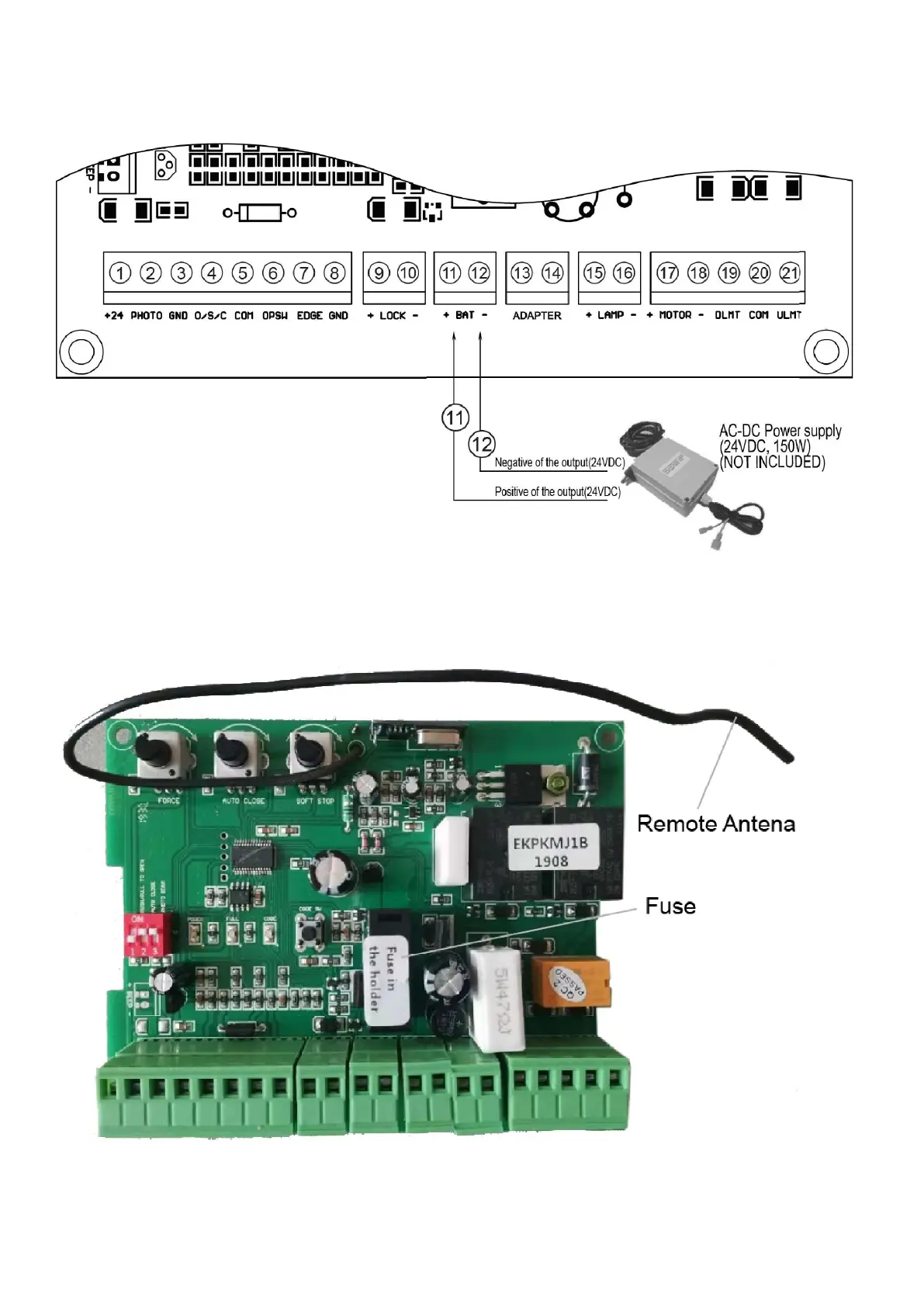

batteries, this alternative save costs and is strongly recommended. The positive output of the 24VDC power
supply should be wired to the BAT+ (#11) terminal, the negative output should be wired to “BAT-” (#12) terminal.
There is no need to use the adapter in this situation.
Connection of the control board
