KICKSTAND
WARNING! THE KICKSTAND IS DESIGNED TO SUPPORT THE BICYCLE ONLY,
NOT THE BICYCLE AND RIDER.
If your bike is equipped with a kickstand, please follow the instructions
below.

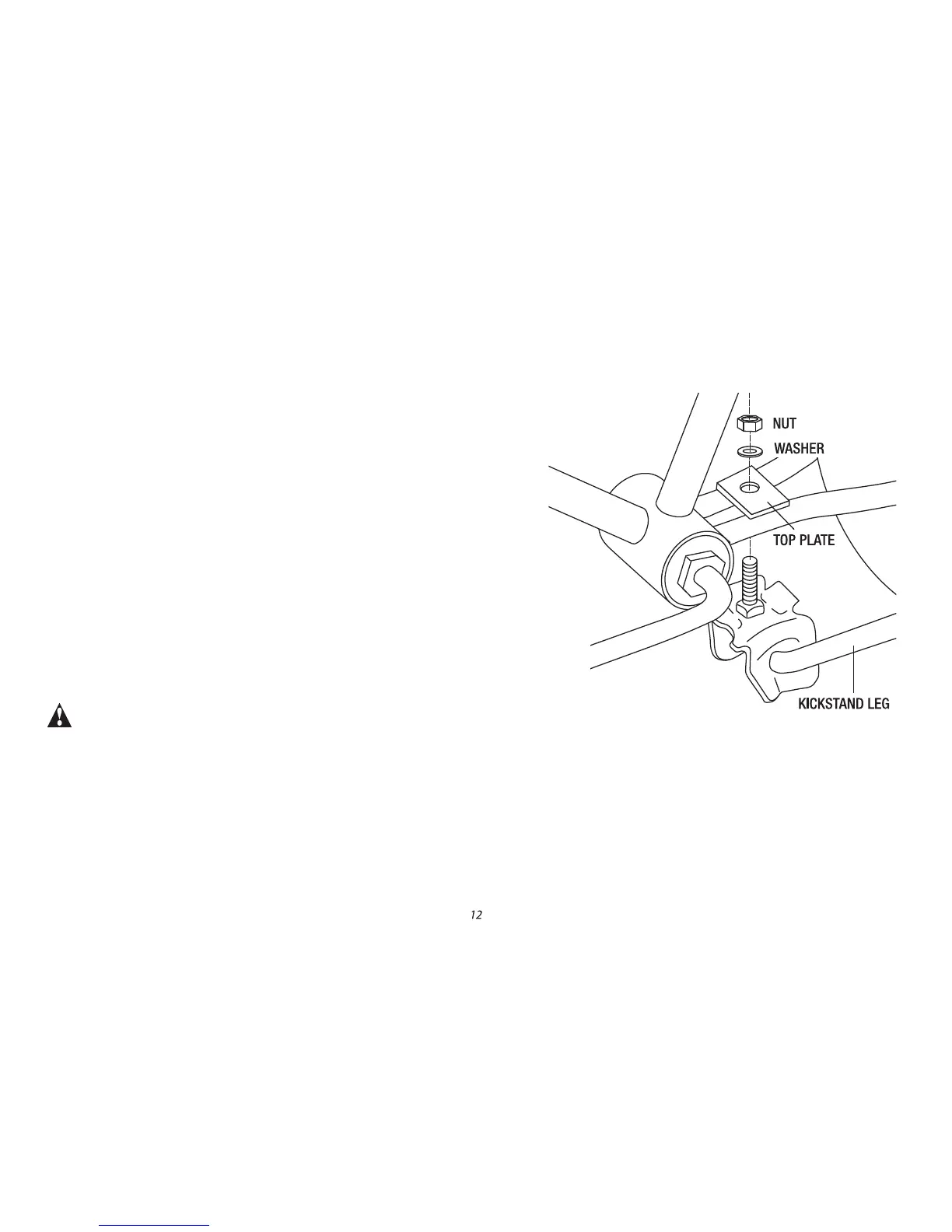

1. Place the bicycle in an upright position.
2. Remove the top plate from the kickstand.
3. From the left side of the bicycle (opposite side from chainring), place
the kickstand in position beneath the two rear fork legs.
4. Place the top plate, flange down, onto the mounting bolt.
5. Replace the washer and nut onto the mounting bolt. Hold the kickstand
arm in an up position aligned with the frame stay, then securely tighten
the mounting bolt.
6. Leave the leg of the kickstand down so it will support the bicycle during
the rest of the assembly process.
