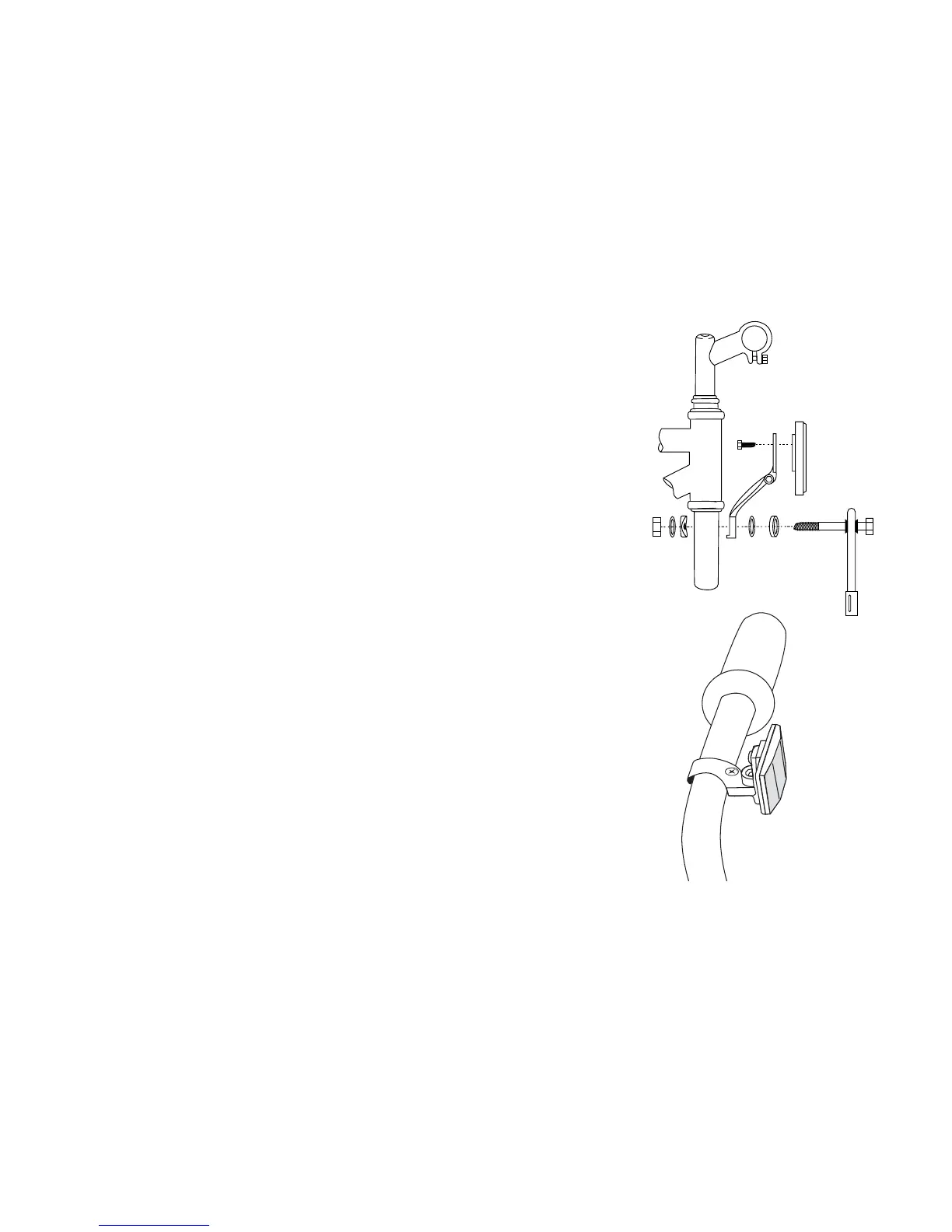

FRONT REFLECTOR MOUNT WITH CALIPER BRAKE ASSEMBLY
First remove the hex nut from the back of the fork and pull the brake from the fork.
insert a spacer, washer and reflector bracket on to the caliper bolt. Insert the caliper
bolt back into the fork and secure firmly with a concave spacer, washer and hex nut.
Finally, adjust the reflector such that it is in an upright position. Tighten bolts until
snug.
FRONT REFLECTOR MOUNT ON HANDLEBAR
1. Remove the clamp screw from the reflector bracket.
2. Push open the bracket loop and slide in over the handlebar tube. If there is a sizing insert
included with the bracket, please be sure it is inside the clamp loop before mounting.
3. Position the reflector bracket on the handlebar between the grip and crossbar, about 5”
from the end of the handlbar.
4. Tighten the clamp screw securely.
CAUTION: Be sure the reflector is vertical to the ground. If the reflector is aimed up or
down, oncoming headlights may not reflect properly in the reflector.
CAUTION: Be sure the reflector is vertical to the ground. If the reflector is aimed up or
down, oncoming headlights may not reflect properly in the reflector.
