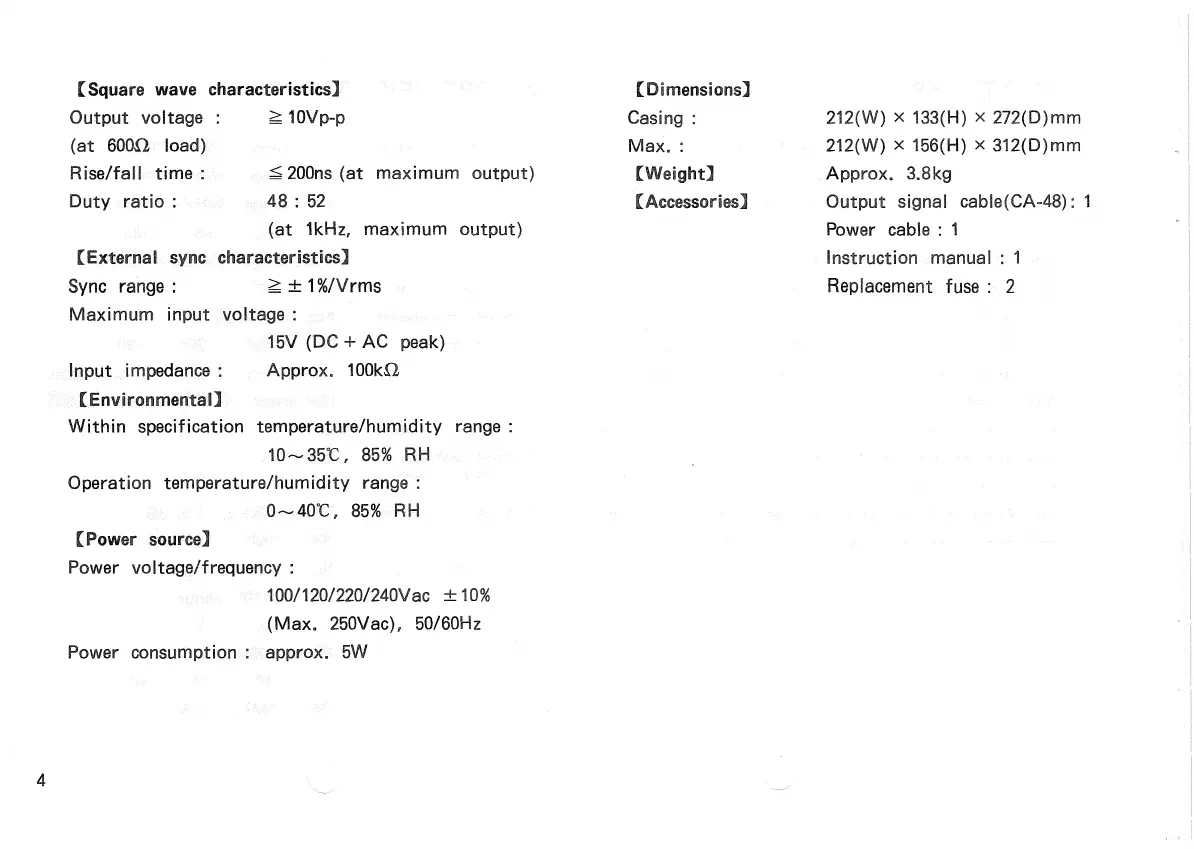

4
Output voltage :
^ 10Vp-p
(at 600O load)
Rise/fall time :
^ 200ns (at maximum output)
Duty ratio :
48 : 52
(at 1kHz, maximum output)
Sync range : ^ ± 1%/Vrms
Maximum input voltage :
15V (DC +AC peak)
Input impedance
Approx. 100kO
Within specification temperature/humidity range :
10~35°C, 85% RH
Operation temperature/humidity range :
0~40°C, 85% RH
Power voltage/frequency :
100/l20/220/240Vac ±10%
(Max. 250Vac), 50/60Hz
Power consumption : approx. 5W
Casing :
212(W) x 133(H) x 272(D)mm
Max. :
212(W) x 156(H) x 312(D)mm
[Weight]
Approx. 3.8kg
[Accessories]
Output signal cable(CA-48): 1
Power cable : 1
Instruction manual : 1
Replacement fuse : 2
[Square wave characteristics]
[External sync characteristics]
[Environmental]
[Power source]
[Dimensions]
