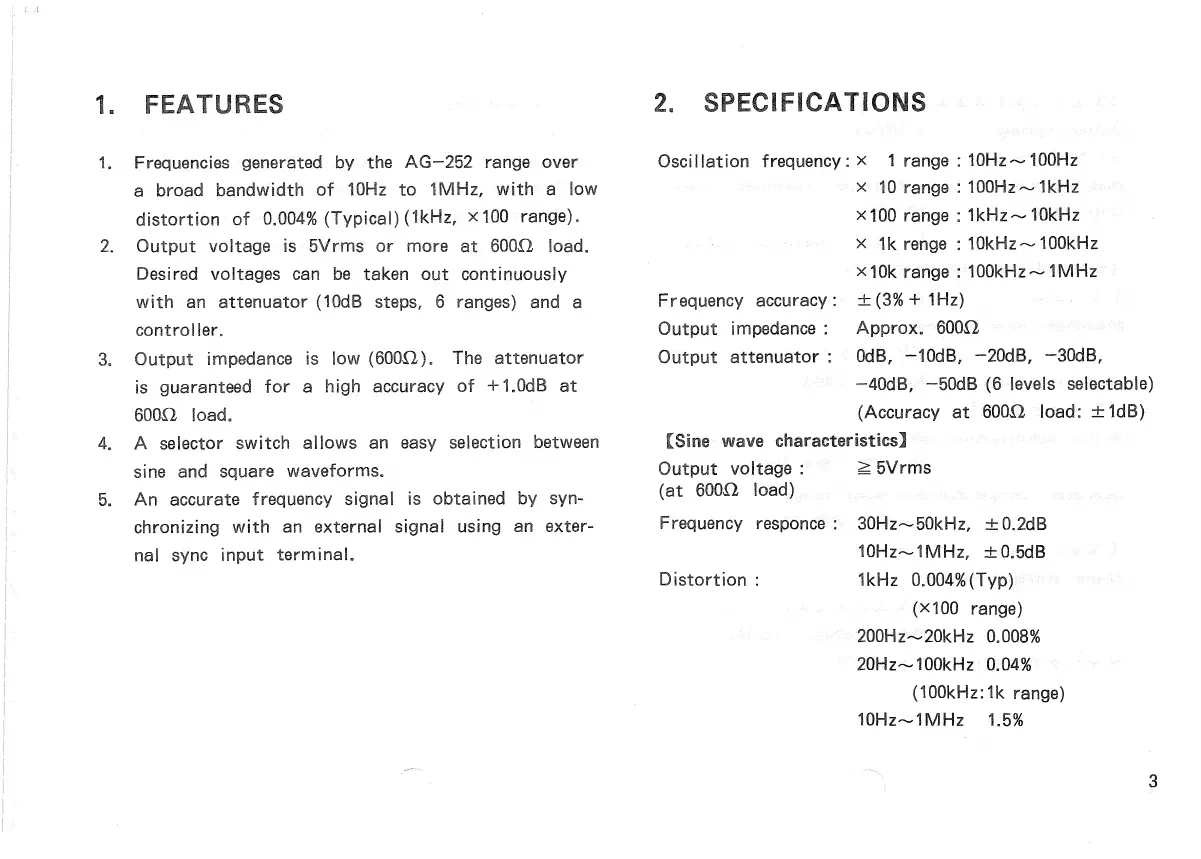

1.
FEATURES
1.
Frequencies generated by the AG-252 range over
a
broad
bandwidth
of 10Hz to 1MHz,
with
a low
distortion
of 0.004% (Typical) (1kHz, x100 range).
2.
Output
voltage is 5Vrms or
more
at 60012 load.
Desired voltages can be taken out continuously
with
an
attenuator
(10dB steps, 6 ranges) and a
controller.
3.
Output
impedance is low (600O). The
attenuator
is
guaranteed for a
high
accuracy of + 1.0dB at
60012
load.
4.
A selector switch allows an
easy
selection between
sine and square waveforms.
5.
An accurate frequency signal is
obtained
by
syn-
chronizing
with
an external signal using an exter-
nal sync
input
terminal.
2.
SPECIFICATIONS
3
[Sine wave characteristics]
Oscillation frequency:
; x 1 range : 10Hz~100Hz
x
10 range : 100Hz~lkHz
xlOO range : 1kHz~ 10kHz
x
Ik renge : 10kHz—100kHz
x10k range : 100kHz~ 1MHz
Frequency accuracy:
±(3%+lHz)
Output
impedance :
Approx. 60012
Output
attenuator
:
OdB,
-10dB, -20dB, -30dB,
-40dB,
-50dB (6 levels selectable;
(Accuracy
at 600O load: ±1dB)
Output
voltage :
^ 5Vrms
(at 600X1 load)
Frequency responce :
30Hz~50kHz, ±0.2dB
10Hz~1MHz, ±0.5dB
Distortion
:
1kHz 0.004% (Typ)
(xlOO range)
200Hz-20kHz 0.008%
20Hz~
100kHz 0.04%
(100kHz:1k range)
10Hz~1MHz 1.5%
