Kenwood DMX7520DABS Quick Start Guide

Connection/Installation
17English

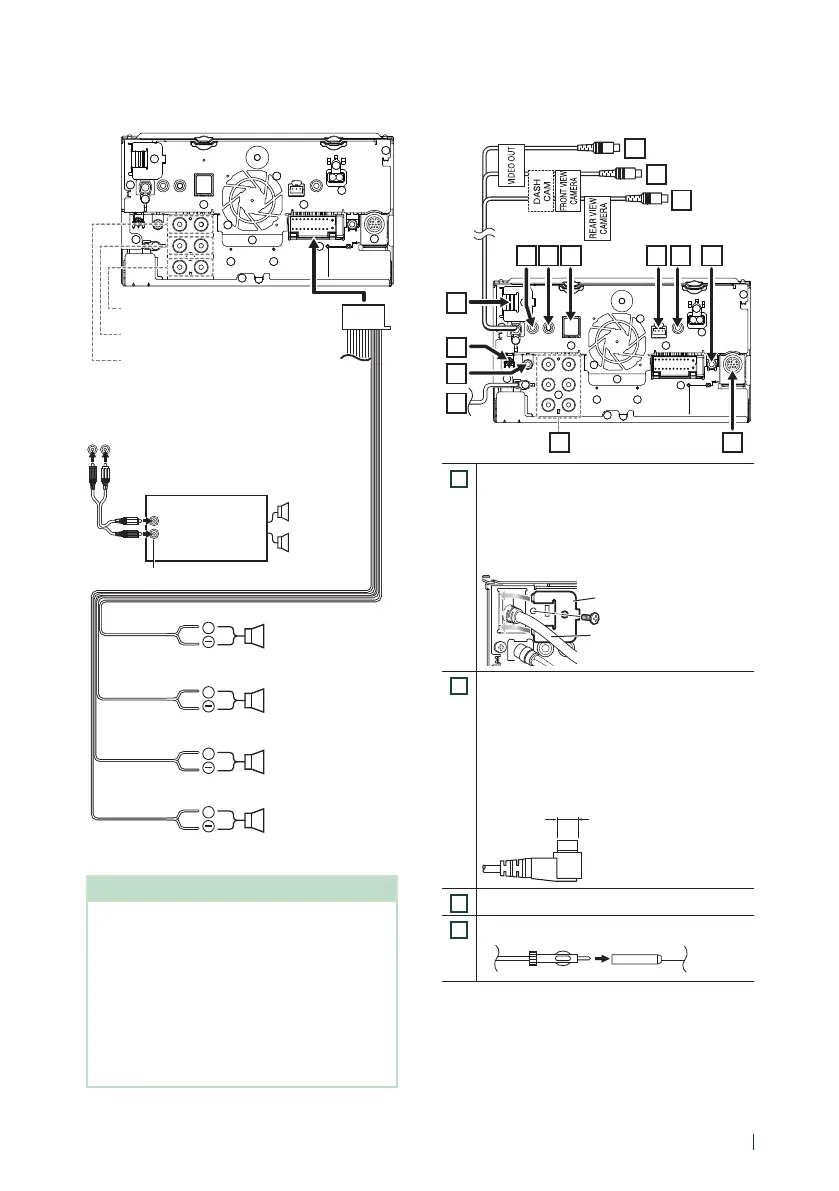

Ñ 3-way speaker system setup
+
+
+
+
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left
speaker
Subwoofer Preout
To mid range right
speaker
Mid Range Preout
To tweeter left speaker
Tweeter Preout
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.65) in the Instruction Manual.
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.66) in the Instruction
Manual.
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.17) and Connecting
wires to terminals (P.16).
Ñ Connecting the system and
external components
4
3
2
1
5 6
78910
13
14
15
1112
1
HDMI input
Use HDMI cable KCA-HD100 (optional
accessory).
When you connect the cable to HDMI terminal,
remove the fixture. After connecting the cable,
put the fixture again.
HDMI connector
Fixture
2
Digital Radio antenna CX-DAB1 (Optional
accessory)
!
Use of a CX-DAB1(optional accessory) as a
Digital Radio antenna is recommended.
When using a commercially available Digital
Radio antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
3
AV Audio output (ø3.5 mini jack)
4
FM/AM antenna input
