Connection/Installation
22
• Do not connect anything to the terminal
printed with "NC". "NC" means "Non
Connection" or "No Connecting". If other
signals are supplied to the terminal, the unit
may not work properly.
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth/Wi-Fi antenna.
Bluetooth/Wi-Fi antenna unit

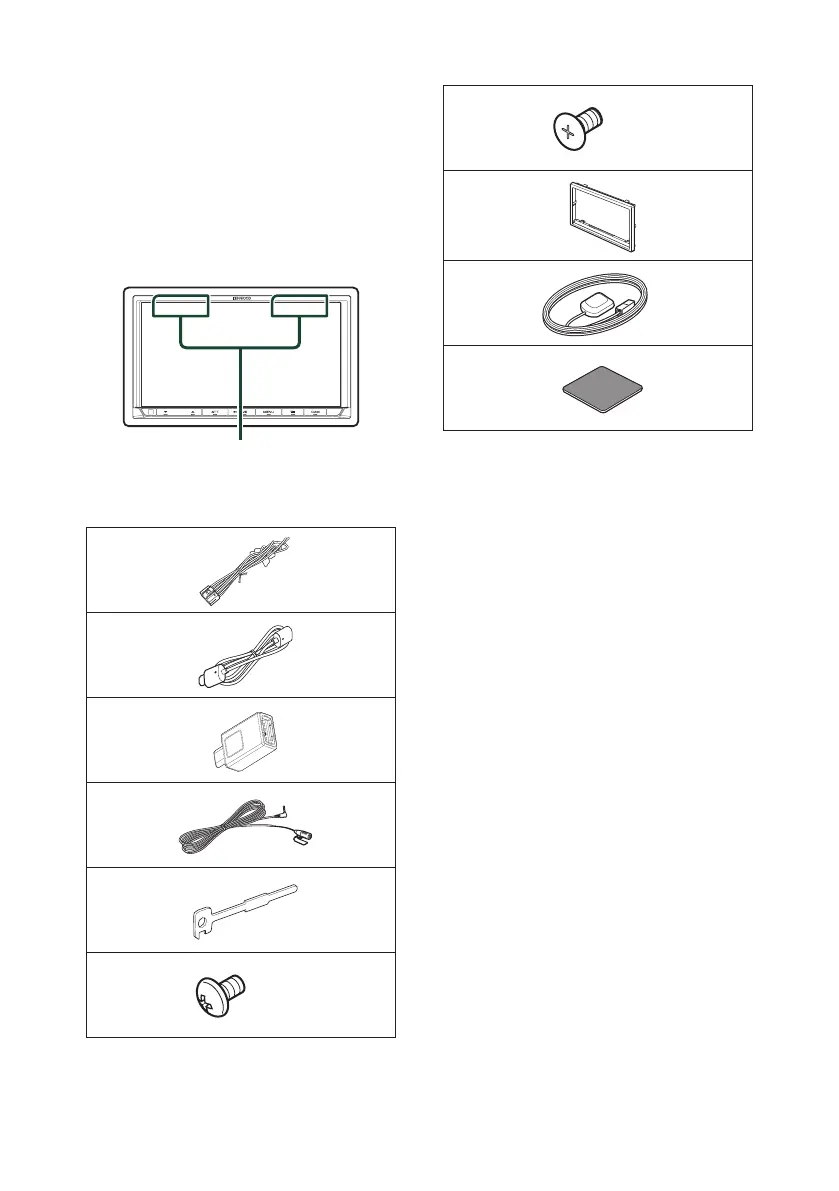

Ñ Supplied accessories for
installation
1
x1
2
x1
3
x1
4
(3 m)
x1
5
x2
6
(M5 x 8 mm)
x6
7
(M5 x 8 mm)
x6
8
x1
9
(3.5 m)
x1
0
x1
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤ terminal of the battery.
8) Perform the Initial Setup.
See Initial SETUP (P.7).
(1 m)
To Next Page
