ENGLISH |
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
ANT CONT
P. CONT
MUTE
R L
REAR/SW

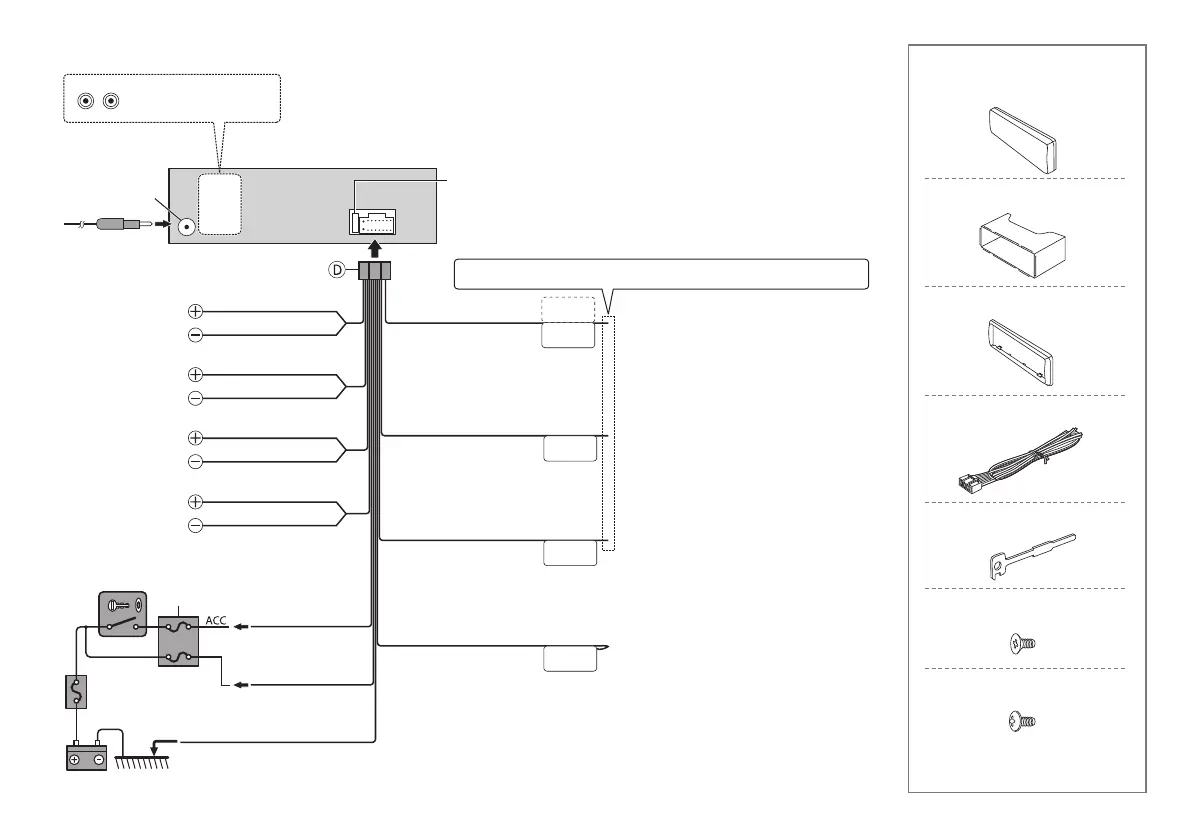

Wiring connection
Part list for installation
Fuse (10 A)
Rear/subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control/
Antenna control wire)
Red
(Ignition wire)
Yellow
(Battery wire)
Black (Ground wire)
To the metallic body or
chassis of the car
To the power control terminal when using the
optional power amplifier, or to the antenna control
terminal in the vehicle. (Max. 300mA, 12V)
Brown
(Mute control wire)
Blue
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To the terminal that is grounded when either
the telephone rings or during conversation. (To
connect the Kenwood navigation system, refer your
navigation manual.)
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
Light blue/yellow
(Steering remote control
wire)
To the steering wheel remote control adapter
(Not used)
If no connections are made, do not let the wire come out from the tab.
( ×4 )
( ×4 )
( ×2 )
( ×1 )
( ×1 )
( ×1 )
( ×1 )
A
Faceplate
B
Mounting sleeve
C
Trim plate
D
Wiring harness
E
Extraction key
F
Flat head screw
G
Round head screw
