Kenwood KDC-138 User Manual

16
|
KDC-MP238/CR/KDC-MP208/KDC-138/CR

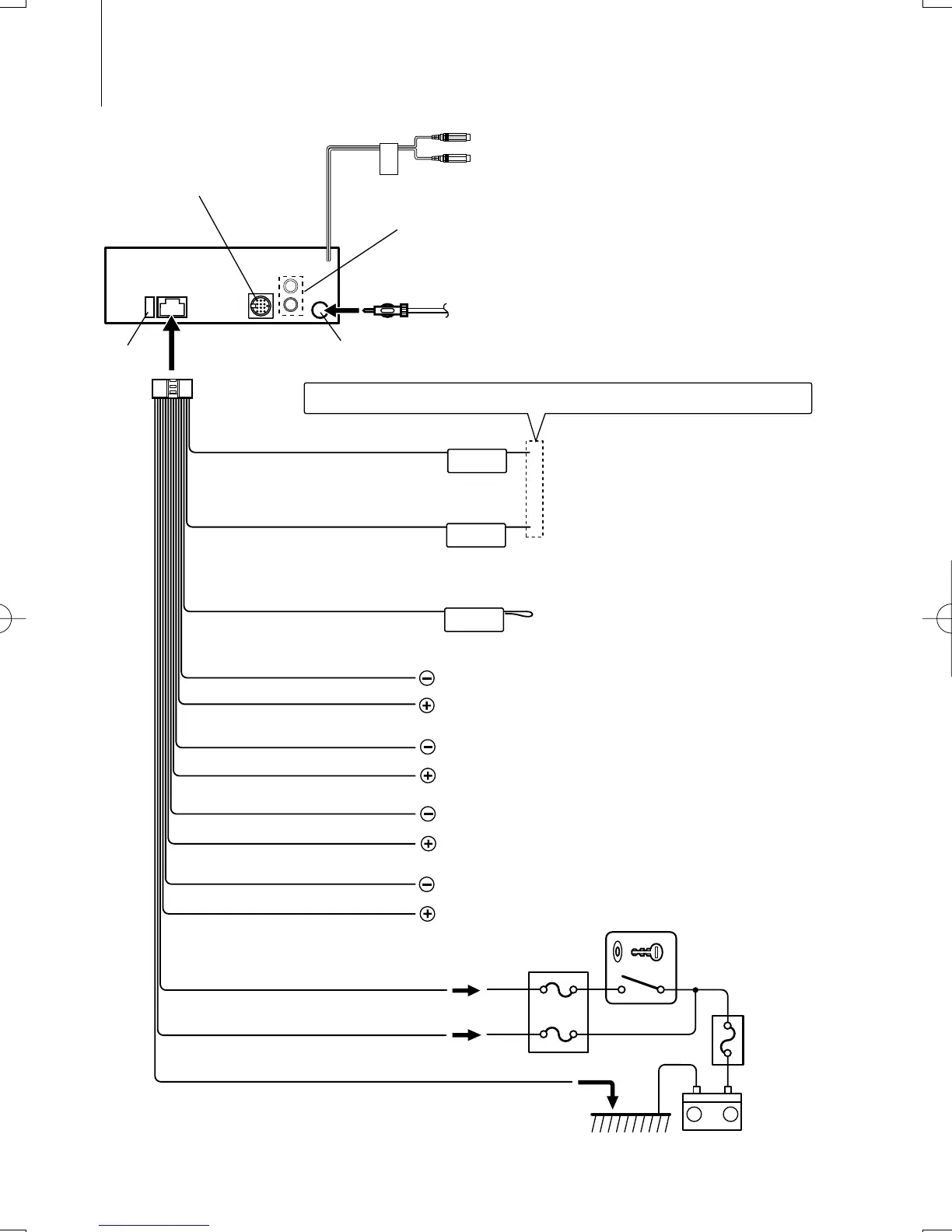

Connecting Wires to Terminals
–
+

FRONT
P.CONT
MUTE
ANT.
CONT
Battery
Ground wire (Black) - (To car chassis)
FM/AM antenna input
Fuse (10A)
Wiring harness
(Accessory1)
Ignition wire (Red)
Battery wire (Yellow)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Ignition key switch
Car fuse box
(Main fuse)
Front preput(KDC-MP238 only)
To Kenwood disc changer/
External optional accessory
(KDC-MP238 only)
Not Used (Blue)
TEL mute wire (Brown)
Connect to the terminal that is grounded
when either the telephone rings or during
conversation.
⁄ To connect the Kenwood navigation system,
consult your navigation manual.
Power control/Motor antenna control wire
(Blue/White)
Connect either to the power control terminal
when using the optional power amplifier, or to
the antenna control terminal in the vehicle.
⁄ Do not let the wire come out from the tab.
Rear preput/ Subwoofer preput
(KDC-MP238/MP238CR/MP208/138 only)
B64-3898-0000KEn.indd16B64-3898-0000KEn.indd16 07.7.105:07:38PM07.7.105:07:38PM

Kenwood KDC-138 Specifications

General

Tuner	AM/FM
CD Playback	Yes
Bluetooth	No
Display Type	LCD
Equalizer	3-band parametric
Subwoofer Control	Yes
Detachable Faceplate	Yes
Channels	4
Aux Input	Yes
Power Output	50 Watts x 4
RMS Power Output	22W x 4
USB Port	Yes, Front
