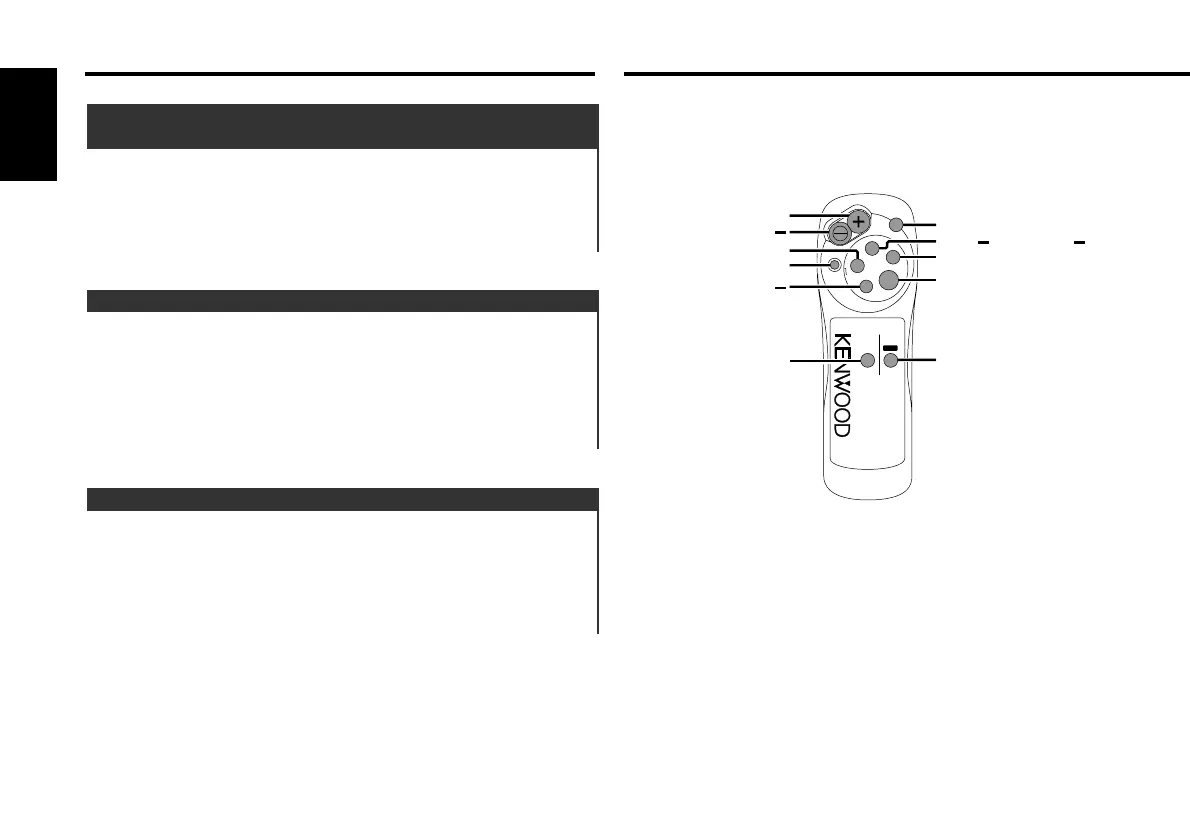

Basic Operations of remote
This function permits the CD text, MD title, and Radio text to
be scrolled and the entire text to be displayed. Switching
between manual scrolling and automatic scrolling is
permitted.
Display and setting:
"Scroll Auto" : Automatic scrolling
"Scroll Manual" : Manual scrolling (Default setting)
Text Scroll <In FM or External disc control mode>
Function of the KDC-V7018R
When poor stereo reception is experienced, this function will
reduce noise and improve listening conditions.
Display and setting:
"MONO ON" : The monaural reception is on.
"MONO OFF" : The monaural reception is off. (Default setting)
Monaural Reception
<In FM reception of Tuner mode>
Menu settings
— 34 —
English
Function of the KDC-V7018R
This function permits the CD text and MD title to be scrolled
and the entire text to be displayed. Switching between manual
scrolling and automatic scrolling is permitted.
Display and setting:
"Scroll Auto" : Automatic scrolling (Default setting)
"Scroll MANU" : Manual scrolling
Text Scroll <In External disc control mode>
Function of the KDC-7018/KDC-5018

Table of Contents

Other manuals for Kenwood KDC-5018

Preview: Service Manual
Service Manual28 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kenwood KDC-5018 and is the answer not in the manual?

Kenwood KDC-5018 Specifications

KDC-7018/5018

FM Tuner Section IconFM Tuner Section
Frequency range (200 kHz space)87.9 MHz – 107.9 MHz
Frequency range (50 kHz space)87.5 MHz – 108.0 MHz
Usable sensitivity (S/N = 30dB)9.3 dBf (0.8 µV/75 Ω)
Quieting Sensitivity (S/N = 50dB)15.2 dBf (1.6 µV/75 Ω)
Frequency response (±3 dB)30 Hz – 15 kHz
Signal to Noise ratio (MONO)70 dB
Selectivity (±400 kHz)≥ 80 dB
Stereo separation (1 kHz)40 dB
AM Tuner Section IconAM Tuner Section
Frequency range (10 kHz space)530 kHz – 1700 kHz
Frequency range (9 kHz space)531 kHz – 1611 kHz
Usable sensitivity (S/N = 20dB)28 dBµ (25 µV)

KDC-V7018R

FM Tuner Section IconFM Tuner Section
Frequency range (50 kHz space)87.5 MHz – 108.0 MHz
Usable sensitivity (S/N = 26dB)0.7 µV/75 Ω
Quieting Sensitivity (S/N = 46dB)1.6 µV/75 Ω
Frequency response (±3 dB)30 Hz – 15 kHz
Signal to Noise ratio (MONO)65 dB
Selectivity (DIN) (±400 kHz)≥ 80 dB
Stereo separation (1 kHz)35 dB
MW Tuner Section IconMW Tuner Section
Frequency range (9 kHz space)531 kHz – 1611 kHz
Usable sensitivity (S/N = 20dB)25 µV
LW Tuner Section IconLW Tuner Section
Frequency range153 kHz – 281 kHz
Usable sensitivity (S/N = 20dB)45 µV

KDC-5018

CD Player Section IconCD Player Section
Laser diodeGaAlAs (λ=780 nm)
Digital filter (D/A)8 Times Over Sampling
D/A Converter1 Bit
Spindle speed500 – 200 rpm (CLV)
Frequency response (±1 dB)10 Hz – 20 kHz
Total harmonic distortion (1 kHz)0.01 %
Signal to Noise ratio (1 kHz) (KDC-7018)105 dB
Signal to Noise ratio (1 kHz) (KDC-V7018R/5018)93 dB
Dynamic range93 dB
Channel separation85 dB
Audio Section IconAudio Section
Maximum output power47 W × 4
Full Bandwidth Power (at less than 1% THD)22 W × 4
Tone action Bass100 Hz ±10 dB
Tone action Middle1 kHz ±10 dB
Tone action Treble10 kHz ±10 dB
Preout level / Load (during disc play)1800 mV/10 kΩ
Preout impedance≤ 600 Ω
General IconGeneral
Operating voltage (11 – 16V allowable)14.4 V
Current consumption10 A
Installation Size (W x H x D)182 × 53 × 162 mm
Weight1.7 kg
