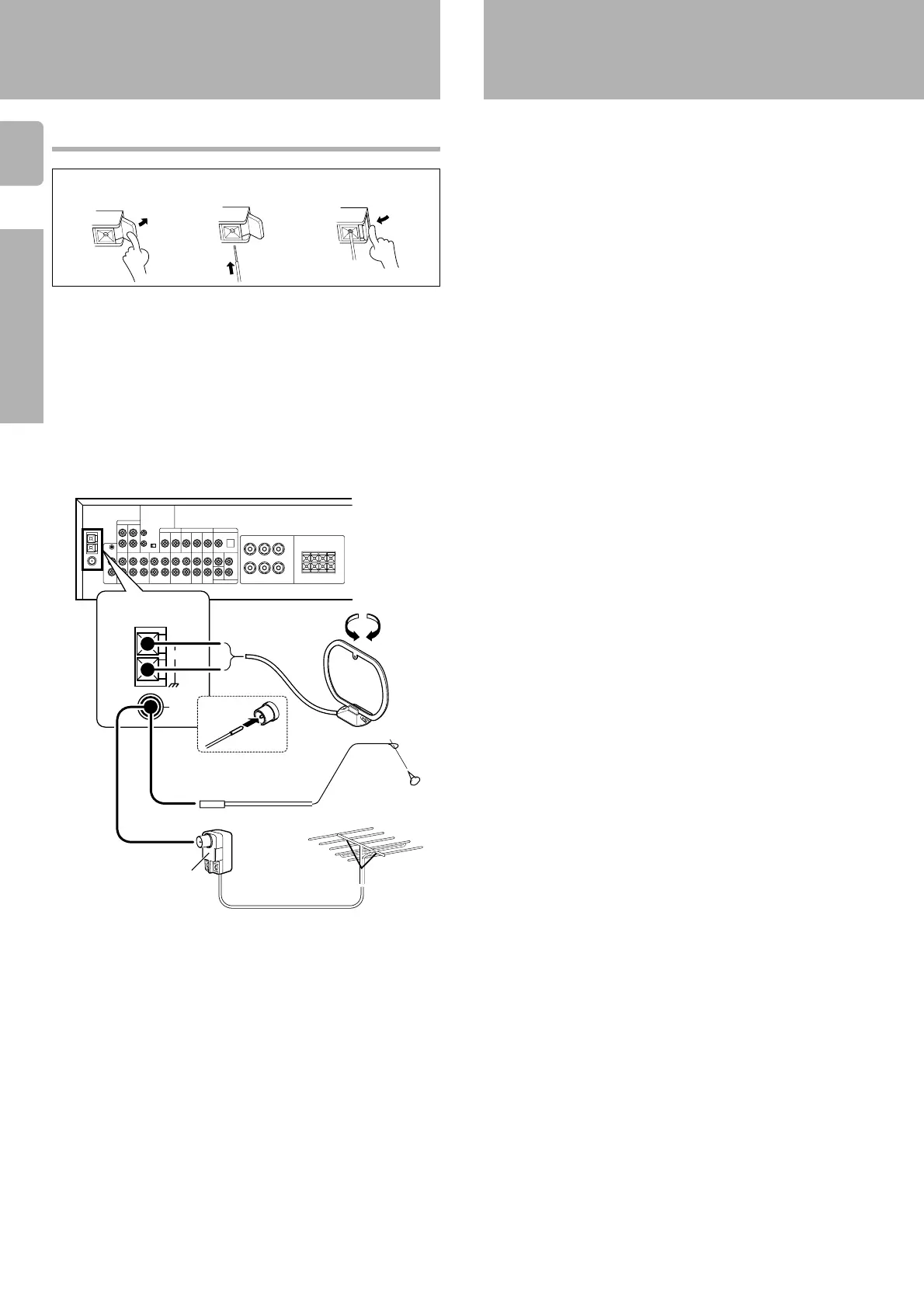

Connecting the antennas
Antenna terminal connections
1 Push lever. 2 Insert cord.
AM loop antenna
The supplied loop antenna is for use indoors. Place it as far as possible
from the receiver, TV set, speaker cords and power cord, and adjust the
direction for best reception.
FM indoor antenna
The supplied indoor antenna is for temporary use only. For stable signal
reception we recommend using an outdoor antenna. Disconnect the
indoor antenna when you connect one outdoors.
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna into
the room and connect it to the FM 75Ω terminal.
3 Return lever.
AM loop
antenna
FM indoor antenna
FM outdoor antenna
Use an antenna
adaptor
(Commercially
available)
FM
75Ω
GND
AM
ANTENNA
