SETTINGSSETTINGS
❏ Setting the speakers—car type,
speaker size and crossover frequency
Preparation:
Select the appropriate crossover network mode
beforehand. (Page47)

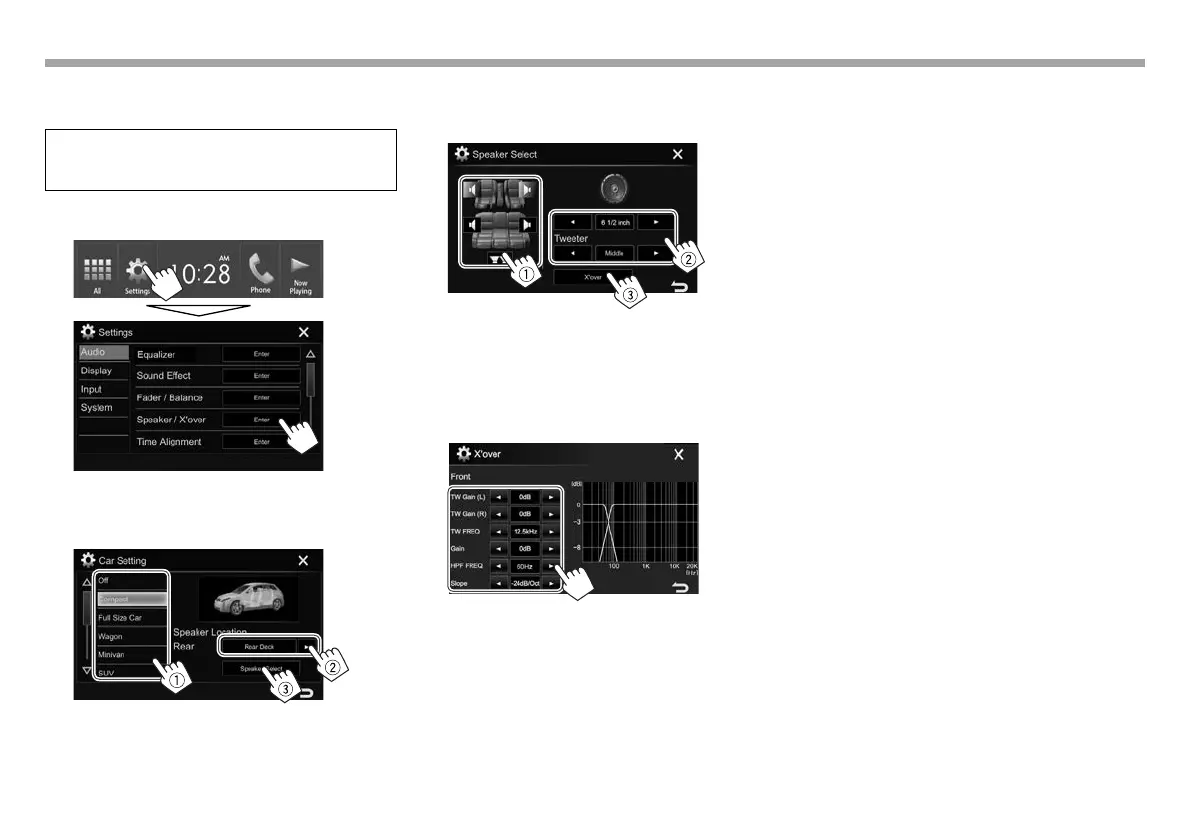

1 Display the <Car Setting> screen.
On the Home screen:
2 Select a car type (1), select the location
of the speakers (2)*
1
, then display the
<Speaker Select> screen (3).
3 Select the speaker type (1), select the size
of the selected speaker (2), then display
the <X’over> screen (3).
• When a speaker is not connected, select
<None>.
• When setting the front speakers, also select
the speaker size for <Tweeter>.
4 Adjust the crossover frequency of the
selected speaker.
<TW Gain (L)>/
<TW Gain (R)>
Adjusts the output volume of
the tweeter (left/right).*
2
*
3
<TW FREQ> Adjusts the crossover
frequency for the tweeter.*
2
*
3
<Gain> Adjusts the output volume of
the selected speaker.
<HPF FREQ> Adjusts the crossover
frequency for the front or rear
speakers (high pass filter).*
4
<LPF FREQ> Adjusts the crossover for the
subwoofer (low pass filter).*
5
<Slope> Adjusts the crossover slope.*
6
<Phase> Selects the phase for the
subwoofer.*
5
*
1
Speaker location selection is available only when <X’over
Network> is set to [2 way]. (Page47)
*
2
Appears only when the front speakers are selected.
*
3
Adjustable only when <Tweeter> is set to <Small>,
<Middle>, or <Large> on the <Speaker Select>
screen.
*
4
Appears only when the front/tweeter or rear/mid range speakers
are selected.
*
5
When <X’over Network> is set to [2 way] (Page47):
Appears only when the subwoofer is selected.
*
6
Not adjustable when <HPF FREQ> or <LPF FREQ> is set to
<Through>.
