To access the power unit:
*it will be necessary to remove the pedestal assembly to gain access to the power unit
Remove the hex screw, and lift the
hub straight off.

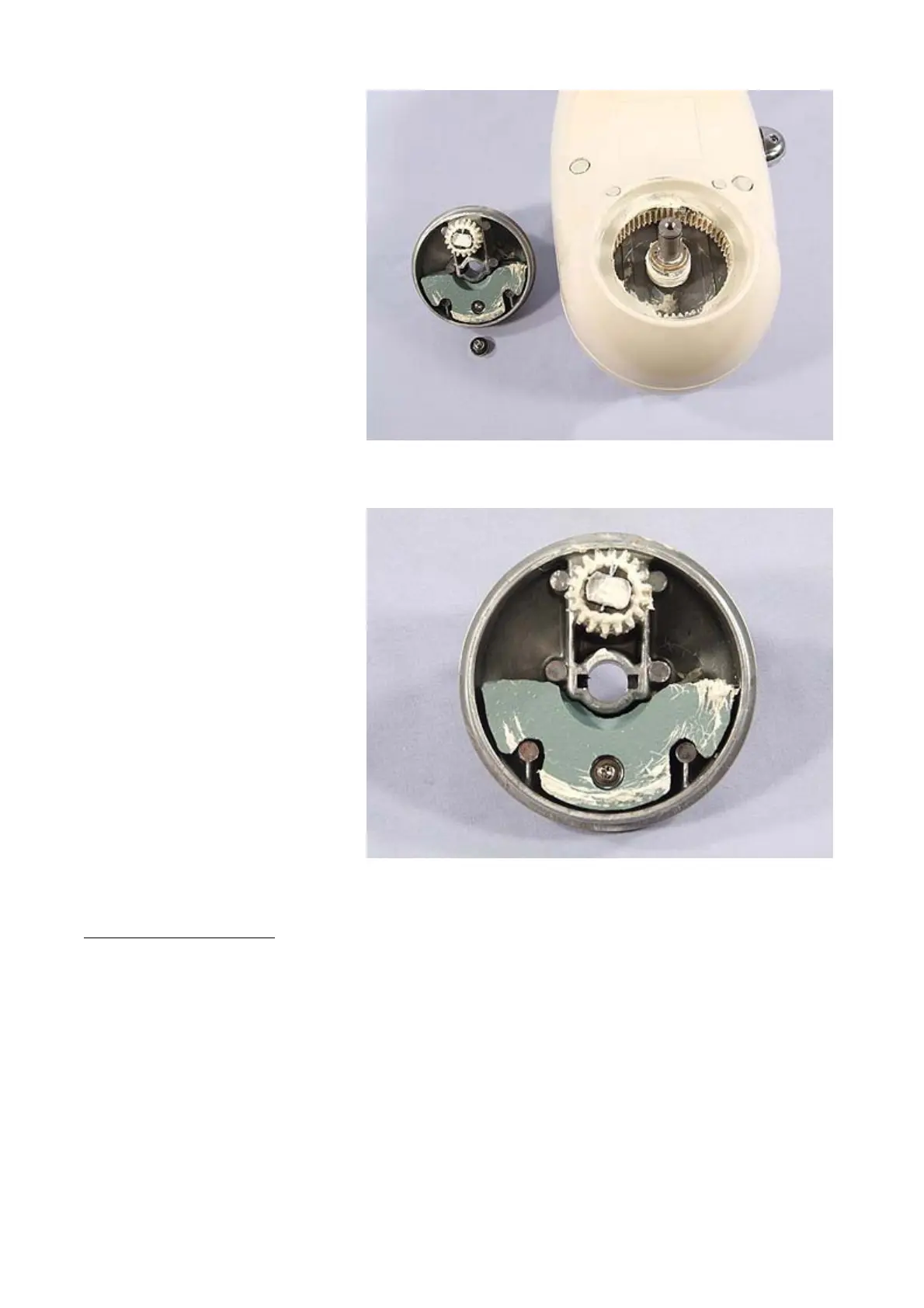

Internal view of hub assembly.
Turn machine upside down.
