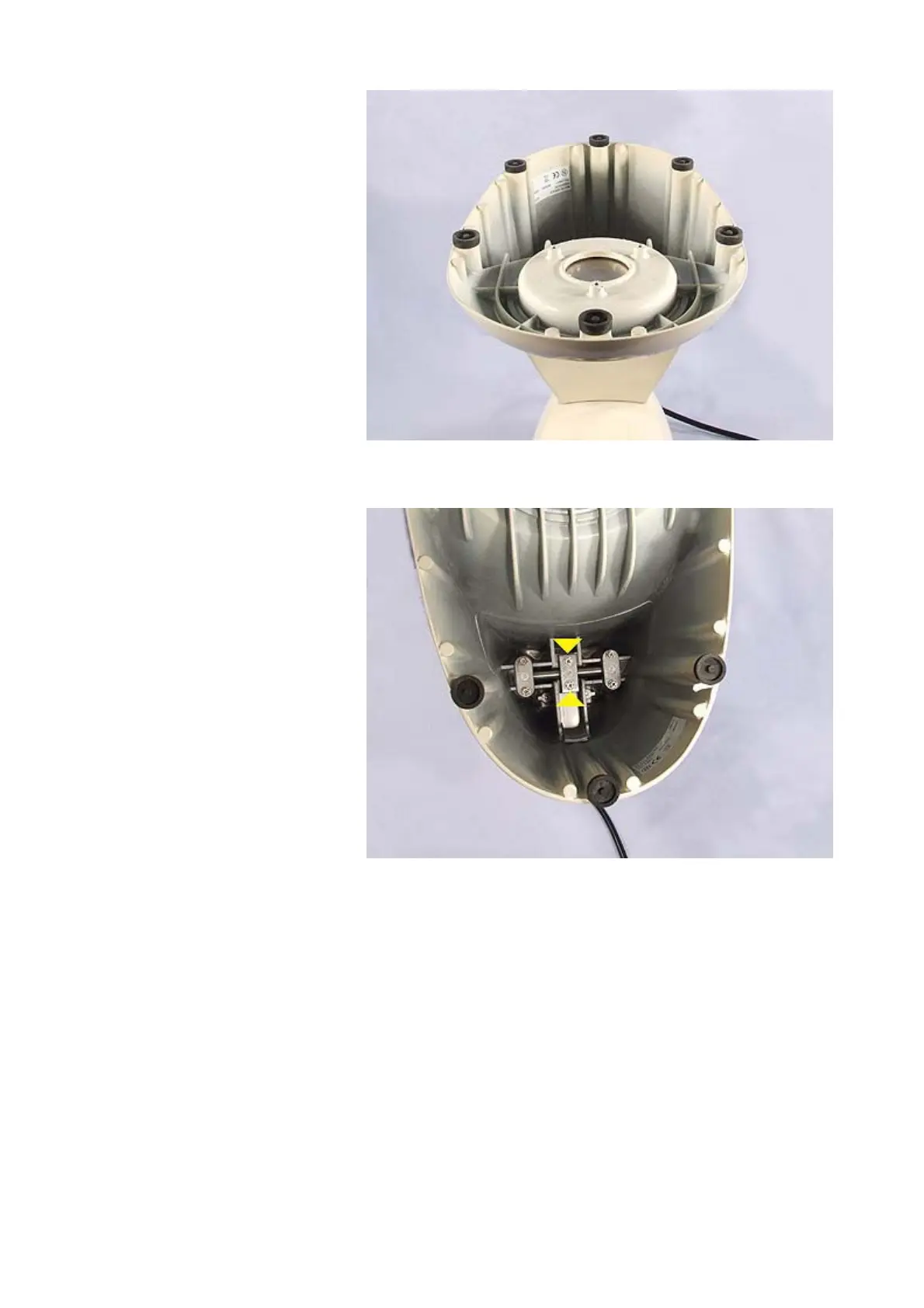

Remove the 2 screws highlighted by
the arrows.
Lift off the pedestal assembly.
Page 3 of 8Spares - MX270 Disassembly & re-assembly instructions
30/04/2009http://www.kenwoodservice.co.uk/product-files-kar/
g
uide
_
MX270.htm
