TH-K20A/K20E
16

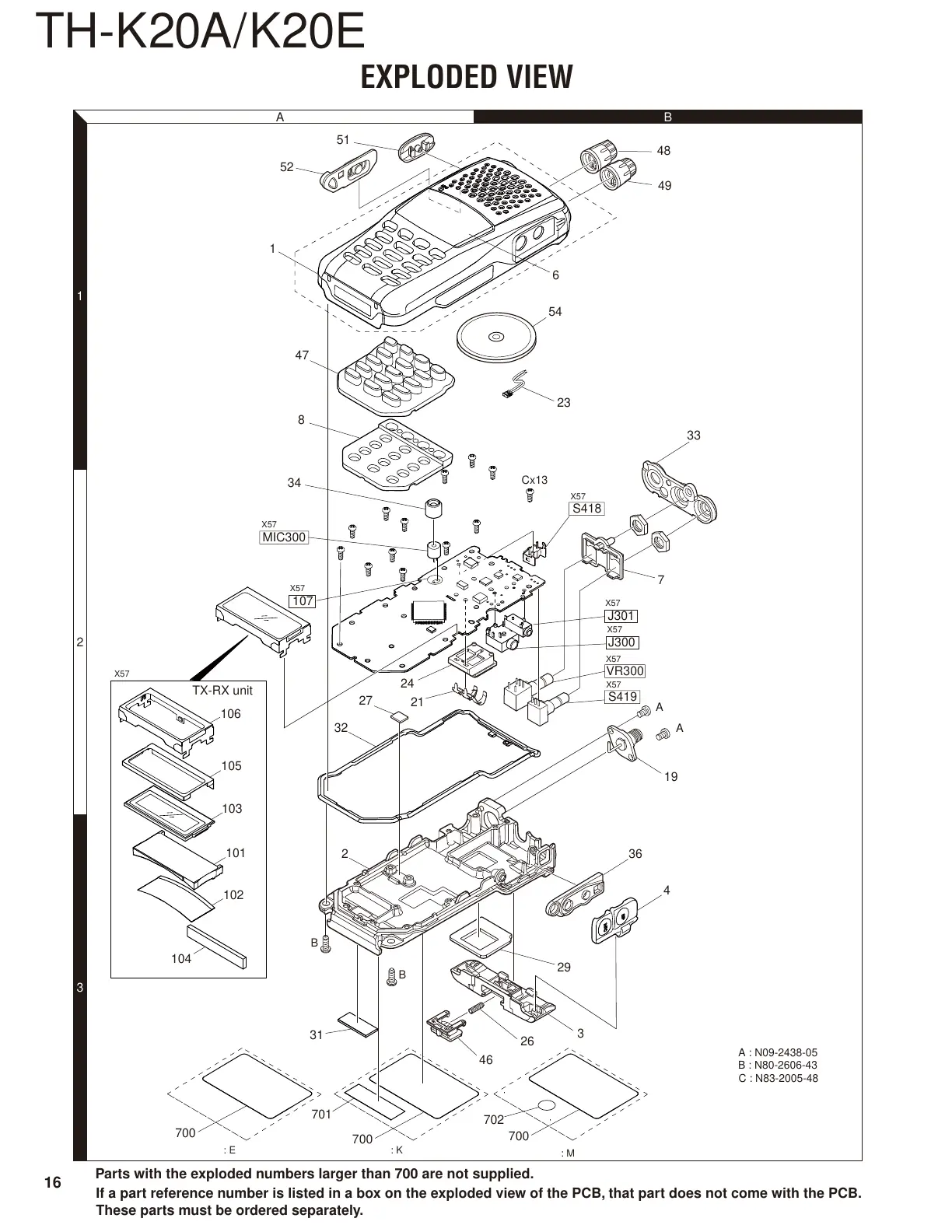

EXPLODED VIEW
Parts with the exploded numbers larger than 700 are not supplied.
If a part reference number is listed in a box on the exploded view of the PCB, that part does not come with the PCB.
These parts must be ordered separately.
A
A
B
B
Cx13
: M
: K : E
48
49
51
52
54
33
23
1
47
TX-RX unit
32
46
26
3
29
36
19
7
VR300
S419
7
700
701
J300
J301
2
A : N09-2438-05
B : N80-2606-43
C : N83-2005-48
107
MIC300
21
24
27
34
4
8
31
106
105
103
101
102
104
X57
X57
X57
X57
X57
X57
X57
700
700
702
S418
X57
6
3
2
1
BA
