21
EN
SBS
M1
M2
COM
PAR
OPEN
CLOSE
SBS
NEG
PH-POW
PH1
PH2
COM
FLASH
LED
SEN
SHIELD
ANT
COM
STOP
EDGE
EDGE
COM
ELEC
COM
IND
STOP
EDGE
PH1
PH2
PAR
OPEN
CLOSE
SBS
POWER
SUPPLY
23
4
6
5
7
8
9
10
11
1
BATTERIES
(ACCESSORIES)

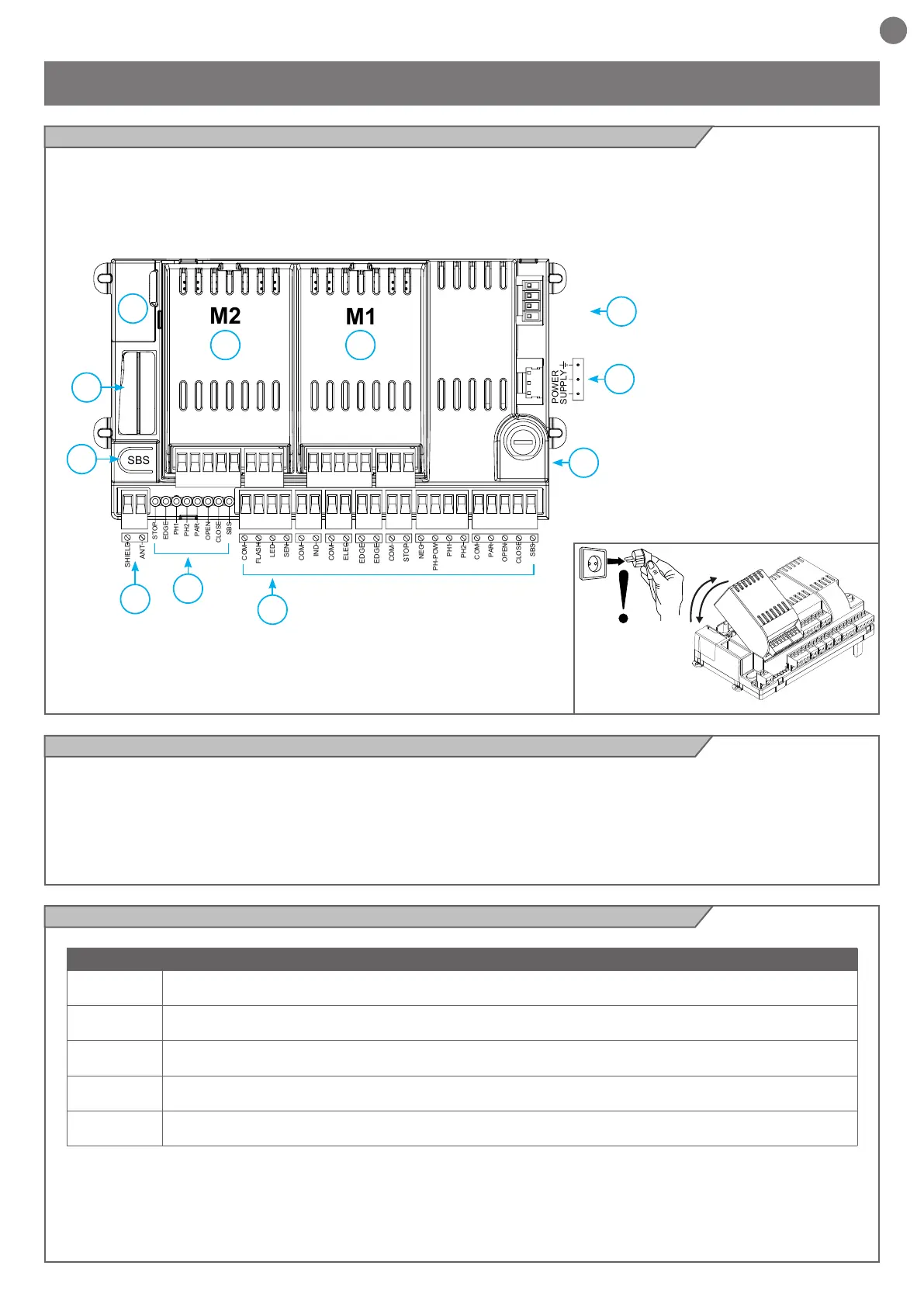

The 14A control unit is a modular system for the control of Key
Automation motors for the electric opening and closure of swing and
sliding gates, barriers and garage doors.
The 14A has a programmer with display (optional) allowing easy
1. Control unit power supply connection 24 Vac
2. M1 power module socket
3. M2 power module socket
4. Display programmer connector / KUBE PRO
5. Receiver compartment RX4Y
6. Integrated STEP BY STEP control button
• Power supply with protection against short-circuits inside the
control unit, on motors and on the connected accessories.
• Obstacle detection by means of current sensor.
• Anti-crush safety device.
programming and constant monitoring of the control unit’s status; the
menu structure also allows easy setting of working times and
operating modes. The display menu is multilingual.
All other, improper, use of the control unit is forbidden.
7. External antenna connections
8. Input status indicator LEDs
9. Accessory/input connection terminal board
10. Protective fuse, 2.5AT
11. Battery connection
• Automatic learning of working times.
• Programmable deceleration during opening and closure.
• Safety input deactivation by means of software.
• Control panel with microprocessor logic.
2 - INTRODUCING THE PRODUCT
2.1 - Description of the control unit
2.2 - Description of the connections
2.3 - Models and technical characteristics
WARNING:
the PO24 power
module must always
be connected/discon-
nected with the control
unit not powered up!
CODE DESCRIPTION
14A Control unit with 1 PO24 power module for the control of 1 24V motor for swing and sliding gates
14AF Control unit with 1 PO24 power module for the control of 1 24V FASTLINE motor for swing and sliding gates
14AB Control unit in box with 2 PO24 power modules for the control of 2 24V motors and 150VA trasformer for swing gates
14AB2 Control unit in box with 2 PO24 power modules for the control of 2 24V motors and 250VA trasformer for swing gates
14AB2F
Control unit in box with 2 PO24 power modules for the control of 2 24V FASTLINE motors and 250VA trasformer for
swing gates
