11
ENGLISH
MODELS AND CHARACTERISTICS
900CT-201 Control unit for 1/2 motors, 230Vdc, set up for radio card, plastic box included
The control unit is designed to automate opening of 1/2 motors for hinged automation with maxi-
mum power of 700W ea. with active and passive safety controls for installation that is compliant
with current safety standards.
TECHNICAL DATA CT-201
POWER SUPPLY 230Vac/50Hz
MAX. MOTOR LOAD 700W+700W
ACCESSORIES POWER SUPPLY OUTPUT 24Vac 400mA
WORKING TIME 0-120sec
PAUSE TIME 0-120sec
OPERATING TEMPERATURE -20°C/+70°C
DEGREE OF PROTECTION IP54
DESCRIPTION
CN1 Connections of power supply and earth
CN2 Connection of motors / asher
CN3 Connection of electric lock, limit switch
CN4 Connection of controls and safeties
CN5 Connection of 24Vac, accessories power supply and second radio channel
JP1 Connector for snap-in radio receiving card
LCD Display for signalling functions and safety inputs
ENTER button for scrolling programming functions
UP/DOWN button for function settings (see table)
P/P Step/step button
F1 Fuse accessory line protection 230Vac 1.6A delayed
F2 Fuse line protection 230Vac 5A delayed
FCA1 FCC1 FCA2 FCC2 signal led of limit switch
13
12
11
10
9
8
7
6
5
4
3
2
1

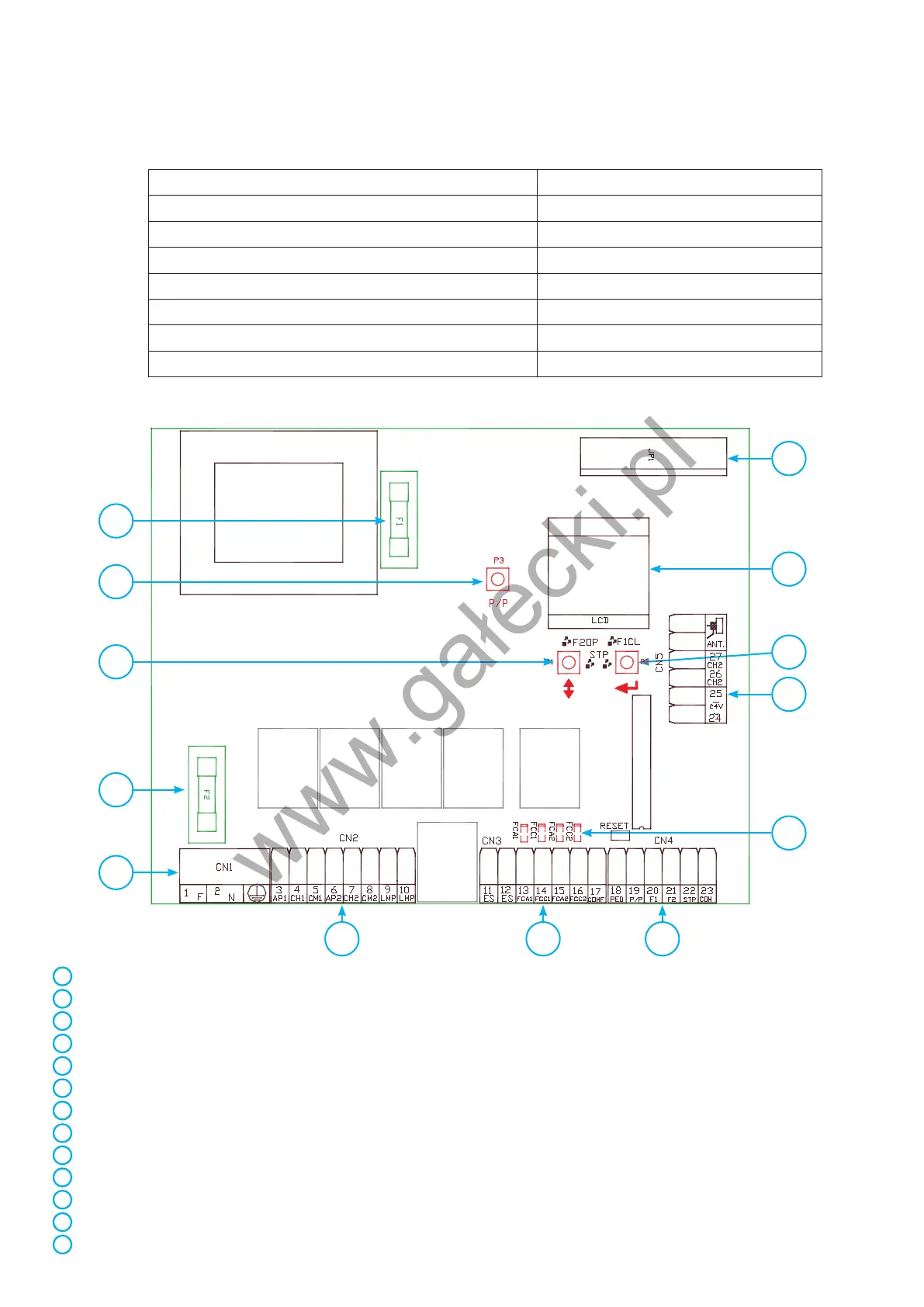

OVERALL VIEW
2
12
--
. .
5
13
11
8
10
7
1
3 4
9
6
A
P
1
C
H
1
C
M
1
A
P
2
C
H
2
C
M
2
L
M
P
L
M
P F N
C
O
M
F
S
T
P
F
2
F
1
P
E
D
F
C
C
2
F
C
A
2
F
C
C
1
F
C
A
1
E
S
E
S
P
/
P
C
O
M
ANT
CH2
CH2
24V~
24V~
