12
ENGLISH
230Vac

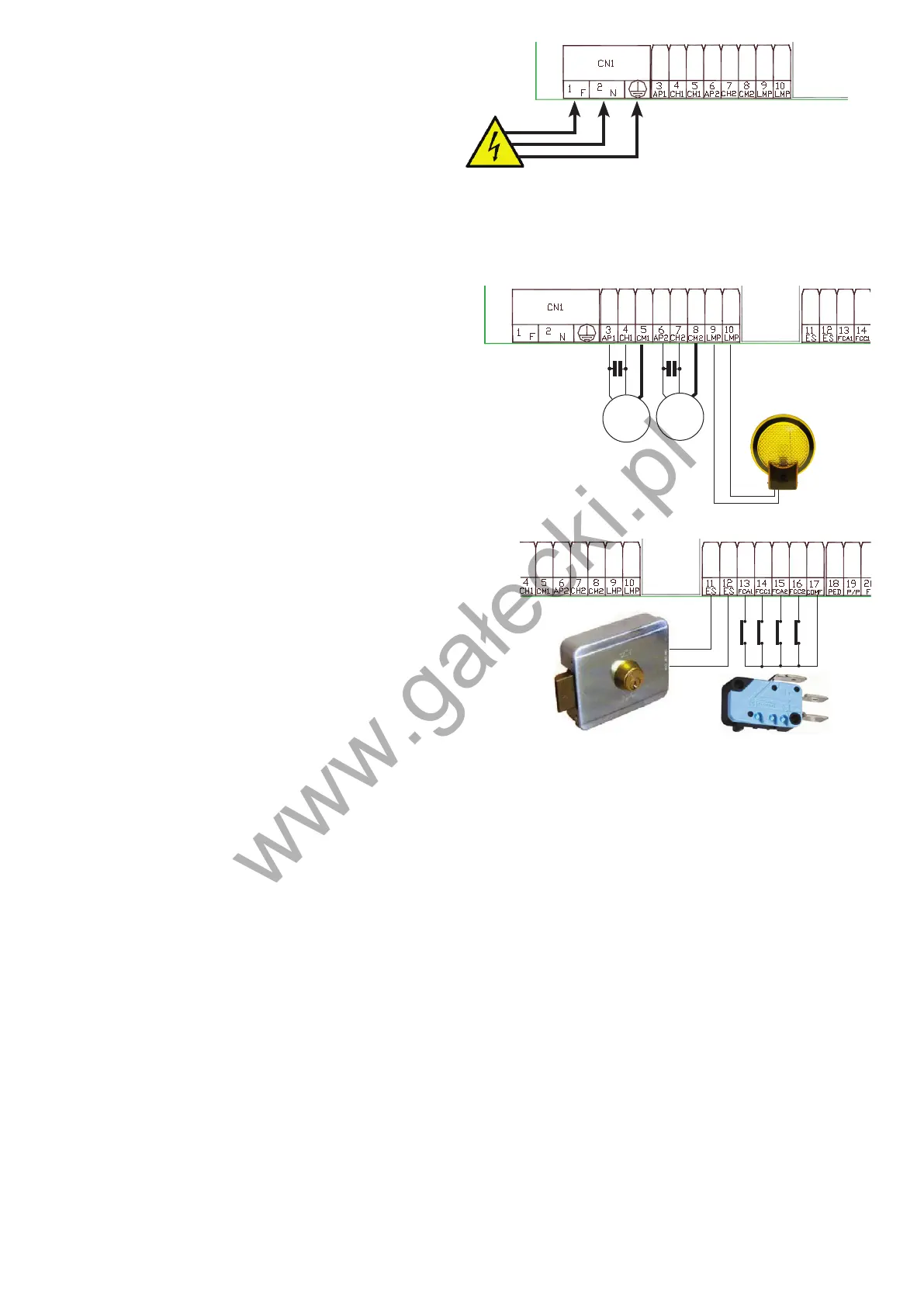

CN1
power supply of the board:
1) F Phase 230Vac
2) N Neutral 230Vac
$) T Ground
CN2
3) opening M1
4) closing M1
5) common M1
6) opening M2
7) closing M2
8) common M2
9) asher Max 25W 230Vac
10) asher Max 25W 230Vac
Lampeggiante
M1
M2
CN3
11) ELS electric lock or open gate light
12) ELS electric lock or open gate light
13) FCA1 limit switch opening M1
14) FCC1 limit switch closing M1
15) FCA2 limit switch opening M2
16) FCC2 limit switch closing M2
17) COMF limit switch common
N.B. The LED’s that correspond to the limit switches are ON when the relative limit switch is not
involved, if you do not use the limit switch they must be jumper connected to the COMF terminal
CN4
18) PED pedal function
Connected between Term. N.18 and Term. N.23 Contact N.O. Normally open
This is an opening control with, if 2-motor operation is selected, will completely open only
motor M1.
19) P/P Step/step operation
Connected between Term. N.19 and Term. N.23 Contact N.O. Normally open
Control input open/close or open/stop/close based on selection of parameter D
20) Photocell Close Function F1 :
Connected between Term. N.20 and Term. N.23 Contact N.C.Normally Closed
This input is considered a safety, the contact can be interrupted at any time during closing
of the automation causing an immediate stop in movement and reversing the direction of
movement
21) Photocell Open Function F2 :
Connected between Term. N.21 and Term. 23 Contact N.C. Normally closed
This input is considered a safety, the contact can be interrupted at any time during opening
by the automation causing an immediate stop in movement, the automation will continue
until the contact is restored.
NC
NC
NC
NC
C
O
M
F
P
E
D
F
C
C
2
F
C
A
2
F
C
C
1
F
C
A
1
E
S
E
S
P
/
P
A
P
1
C
H
1
C
M
1
A
P
2
C
H
2
C
M
2
L
M
P
L
M
P
F N
