Key Automation 900CT-201 - Page 13

13
ENGLISH
NO PED
NO P/P
NC STOP
3
TX
RX
3
4
NC
F1
3
TX RX
3
4
NC
F2
1
2
1
2
1
2
1
2
24Vac/dc
- +
24Vac/dc
- +
24Vac/dc
- +
24Vac/dc
- +
CN5

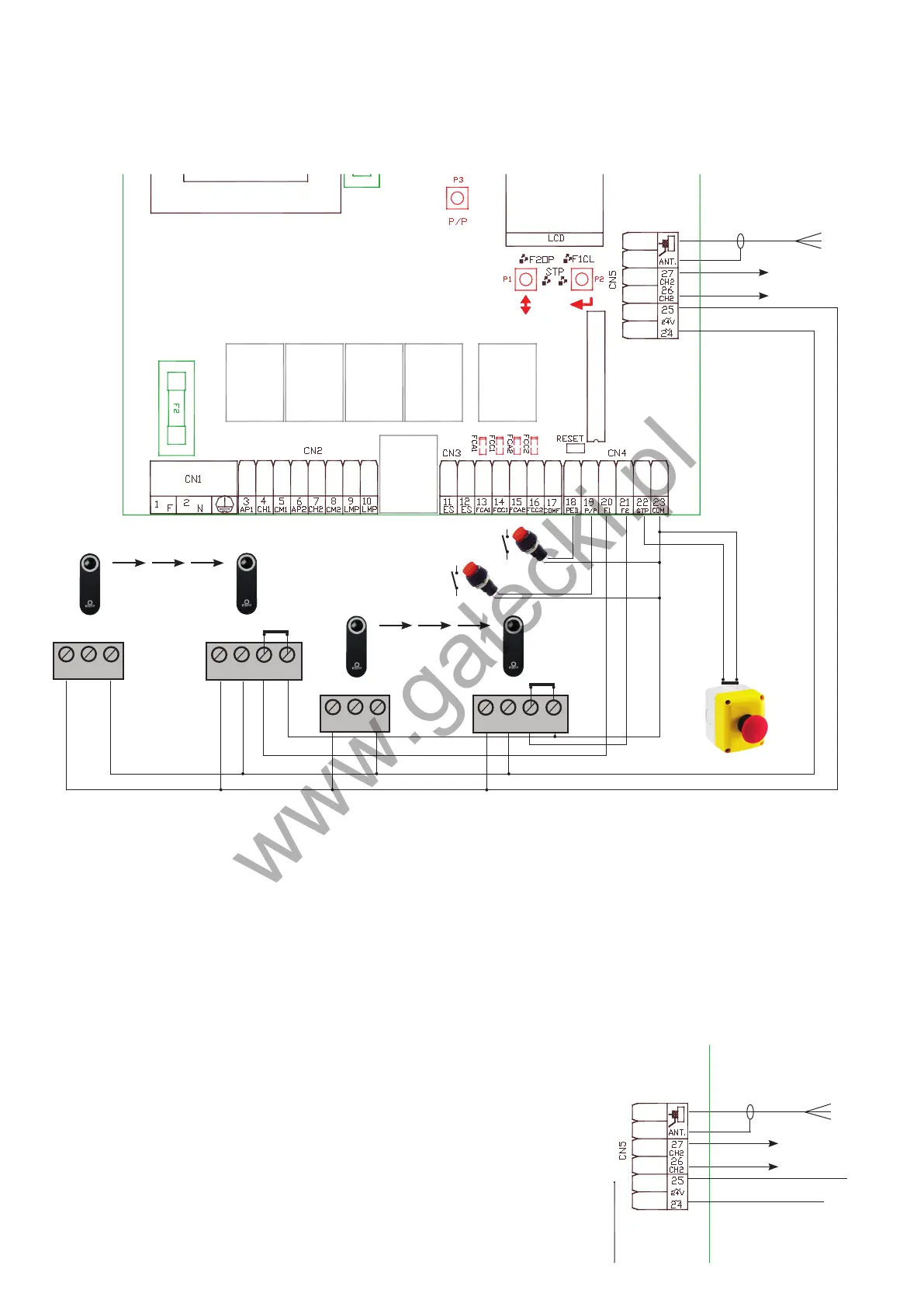

24) Accessory power supply connection 24Vac 15W max
25) Accessory power supply connection 24Vac 15W max
26) 2nd radio channel connection (only if using 2-channel radio connector)
27) 2nd radio channel connection (only if using 2-channel radio connector)
28) Antenna connection (mesh)
29) Antenna connection (signal)
Antenna
22) Stop function STP :
Connected to Term. N.22 and Term. N.23 Contact Normally Open N.C. This input is consi-
dered a safety the contact can be interrupted at any time immediately stopping the automa-
tion disabling any function including automatic closing.
23) COM common
