4 - PRODUCT INSTALLATION
MOTOR CONNECTOR
Terminal Block for power connections, for 24Vdc motor and
encoder
M- Motor power (red or brown)
M+ Motor power (green or white)
GND Encoder (white)
ENC Encoder signal output (green or blue)
+5V Encoder power; (brown or red)
POWER CONNECTOR
+Vac Transformer Power 24÷26 Vac (12 A peak)
-Vac Transformer Power 24÷26 Vac (12 A peak)
Grounding
CR Courtesy light, +24 V to be connected to "C", 25 W
max
C Common for outputs "CR" and "LA"
LA Flashing, +24 V to be connected to "C", 25 W max
- Common for outputs “+24” and "SCA"
+24 Stabilized output, 24 V, 300 mA max, tolerant to short-
circuit
COMMON
3
3
4
1
2
1
2
TX
RX
NC
F2
24Vac/dc
- +
24Vac/dc
- +
3
3
4
1
2
1
2
TX
RX
NC
F1
24Vac/dc
- +
24Vac/dc
- +
+Vac -Vac CR C LA - +24
SCA CO F2 F1 ST OP CL PE PP C CH2 CH2 A sig A gnd
M-
M+
GND
ENC
+5V
M
Motor
T2A 230V
230Vac
50/60Hz
N
L
encoder
RG58
Aerial
SW5 SWITCH
Set at "ON" disables CO, F2, F1, ST inputs.
Eliminates the need to jump the inputs on terminal block.
WARNING - connected safeties are excluded with
dip switch ON
ON

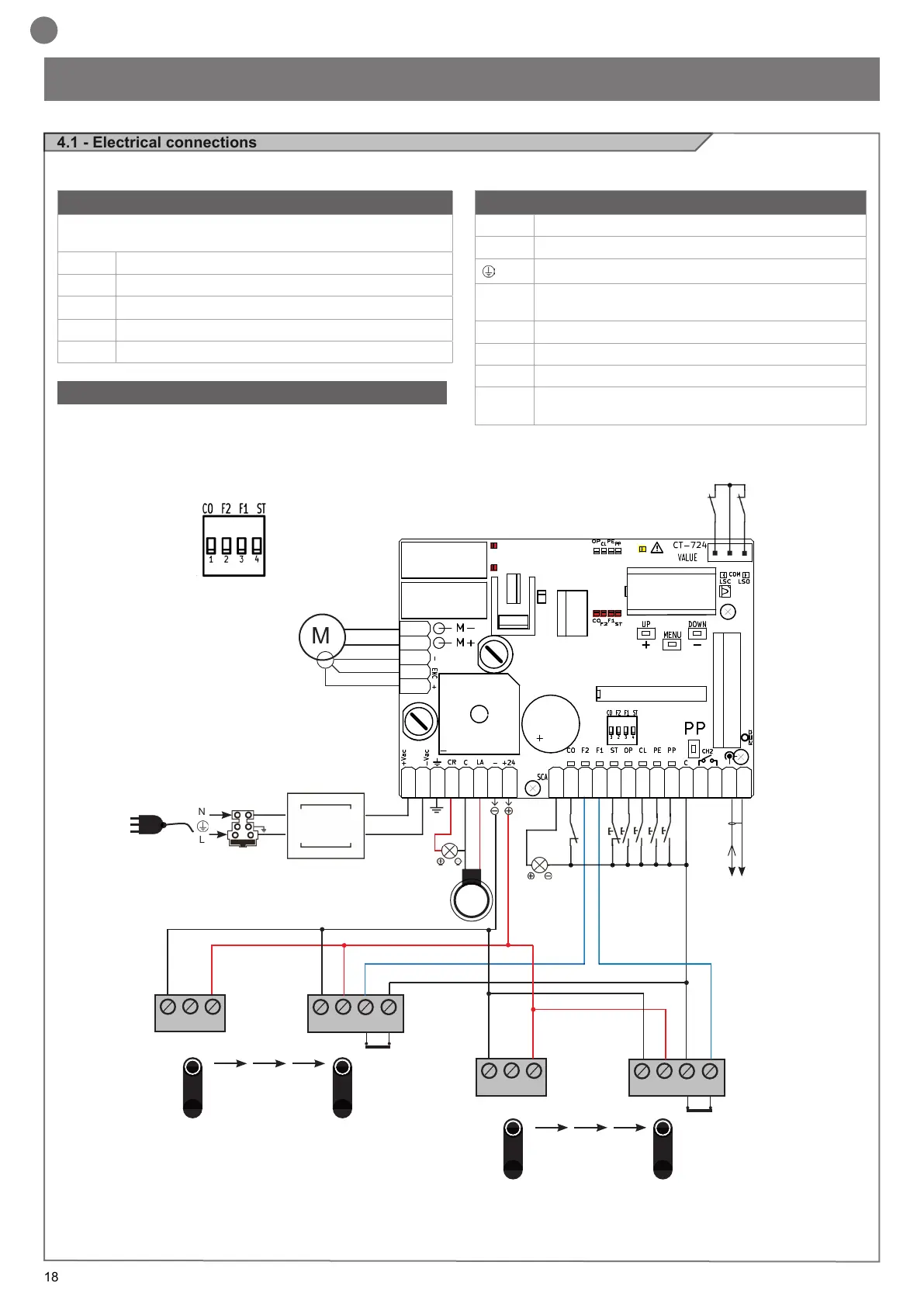

4.1 - Electrical connections
WARNING - Before making connections, verify that the installation is not powered
NC Limit Switch NC Limit Switch
