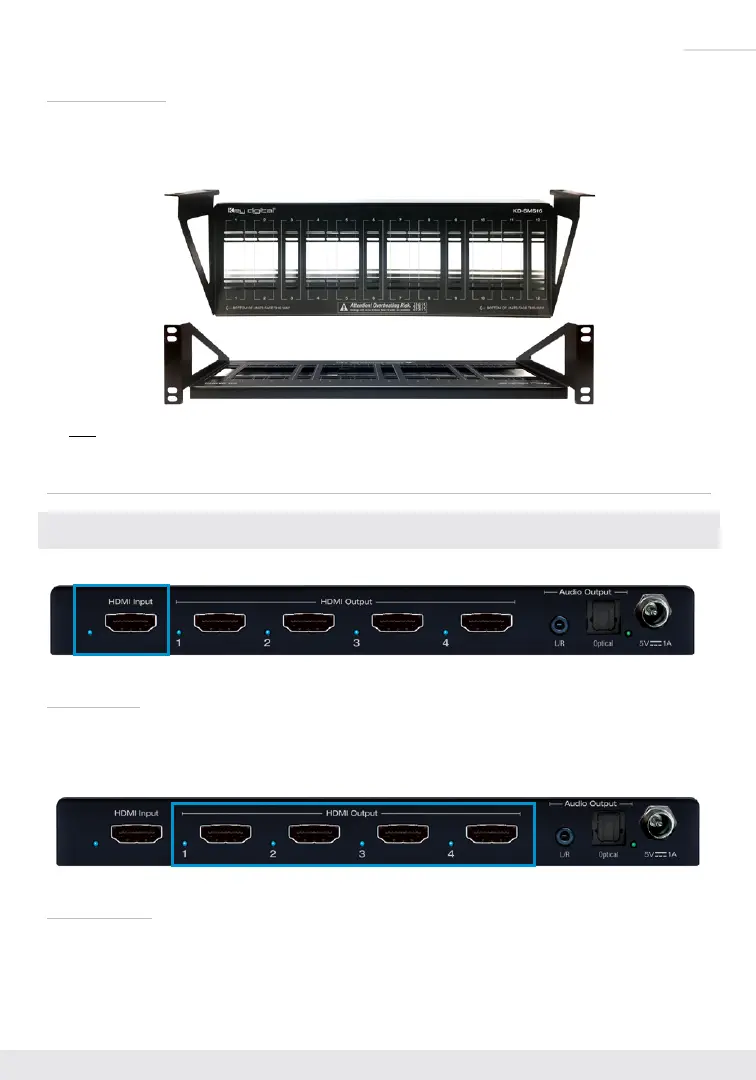

Rack Mounting:
In addition to mounting with the supplied L-Brackets, multiple KD-DA1x4DC may be mounted in
KD-SMS16 using the side mounting screws. KD-SMS16 is a mounting shelf for Key Digital units with
side mounting screw spacing of 2.912”, 2.582”, or 2.252”
Do NOT exceed 12 units as doing so will result in unit damage by overheating.
Front & Rear Panel Connections, Buttons, and LEDs
REAR PANEL
HDMI Inputs
› The HDMI input is located on the left side of the back panel.
› Blue LED illuminates solid to indicate an active HDMI signal is incoming.
HDMI Outputs
› 4 HDMI outputs are located on the center to right side of the back panel.
› Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
output device
