Keychron V5 MAX - LED Status and Charging Information; LED Indicator Overview; Keyboard Charging Guide

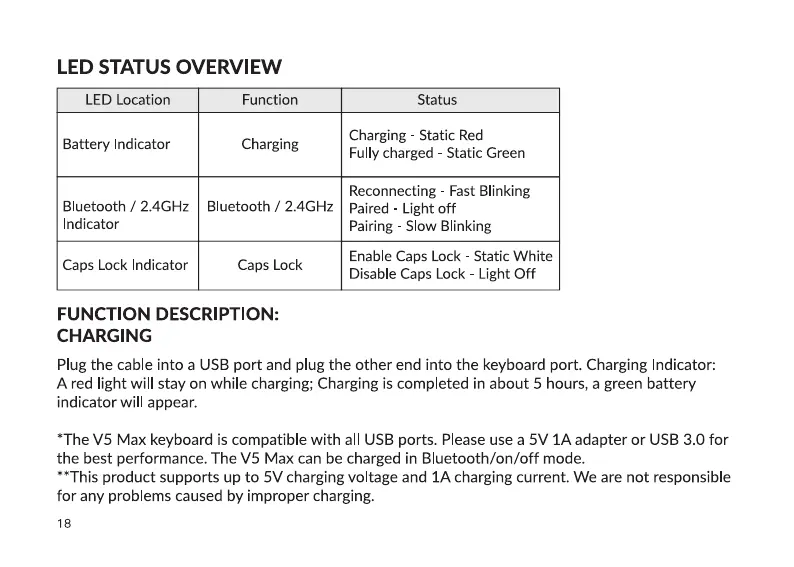

LED STATUS OVERVIEW
LED Location
Battery Indicator
Bluetooth / 2.4GHz
Indicator
Caps Lock Indicator
Function
Charging
Bluetooth / 2.4GHz
Caps Lock
Status
Charging - Static Red
Fully charged Static Green
Reconnecting Fast Blinking
Paired Light off
Pairing - Slow Blinking
Enable Caps Lock - Static White
Disable Caps Lock - Light Off
FUNCTION DESCRIPTION:
CHARGING
Plug the cable into a USB port and plug the other end into the keyboard port. Charging Indicator:
A red light will stay on while charging; Charging is completed in about 5 hours, a green battery
indicator will appear.
*The V5 Max keyboard is compatible with all USB ports. Please use a 5V IA adapter or USB 3.0 for
the best performance. The V5 Max can be charged in Bluetooth/on/off mode.
**This product supports up to 5V charging voltage and IA charging current. We are not responsible
for any problems caused by improper charging.
18
