Keysight 34921A-34925A User’s Guide 37

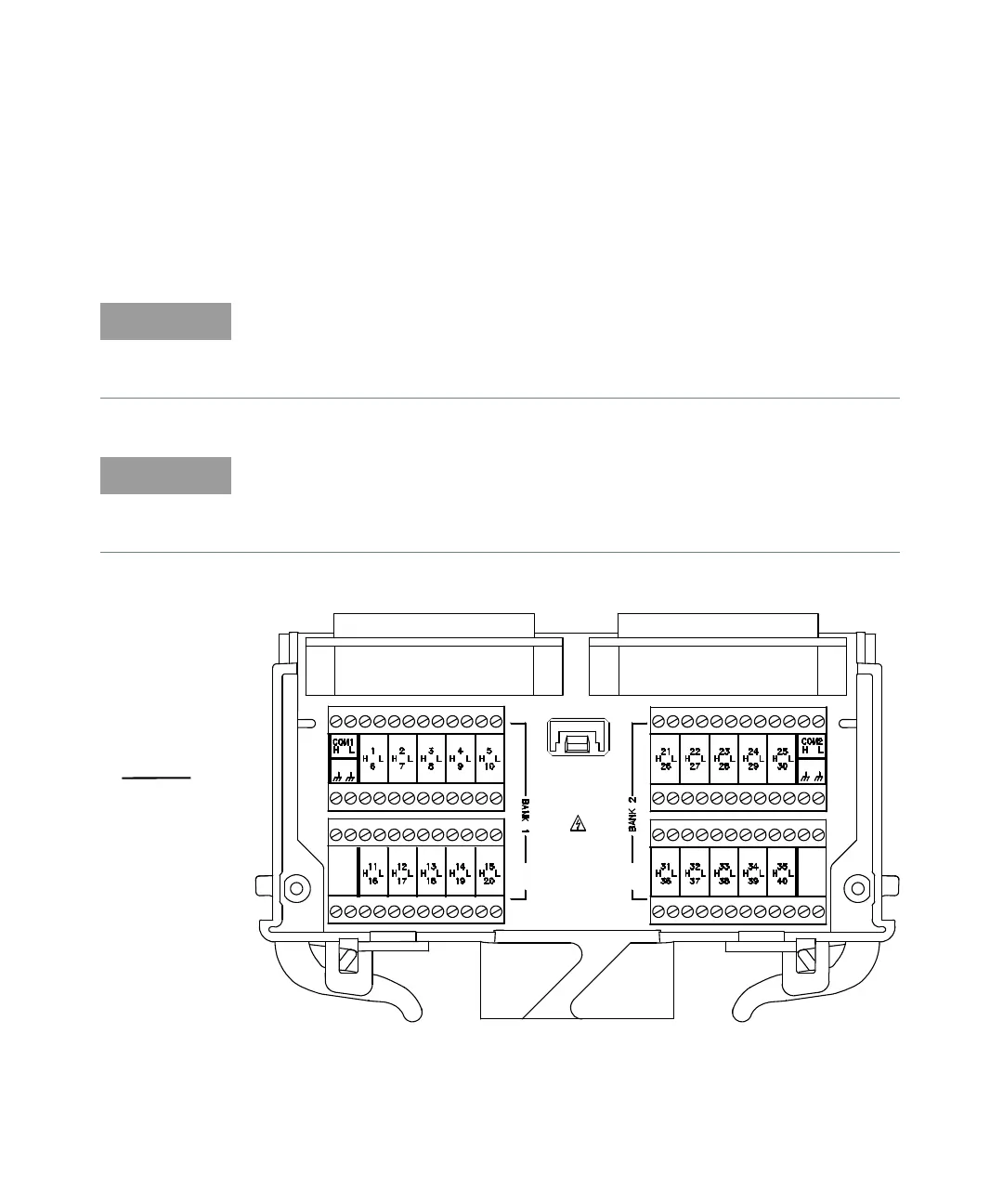

34923T-001 Terminal Block for Two-Wire or Four-Wire Mode
This terminal block with screw-type connections is labeled with the model number
and the abbreviated module name. In addition, space is available on the label for
you to write the slot number.
All modules that connect to the internal DMM are interlock protected. This
means that when an installed module is exposed (no terminal block or cable is
connected), the Analog Bus relays are open and disconnected from the Analog
Buses. See “Safety Interlock” on page 11 for further information.
If you are using an Keysight terminal block to connect your DUT to this module
be sure to use the 34923T-001 terminal block that corresponds to the 2- or
4-wire configuration mode. An error will not be generated if you have installed a
terminal block that doesn't match the present module configuration.
