Keysight Technologies B1500A Self-Paced Training Manual

Module 1
Introduction
1-8

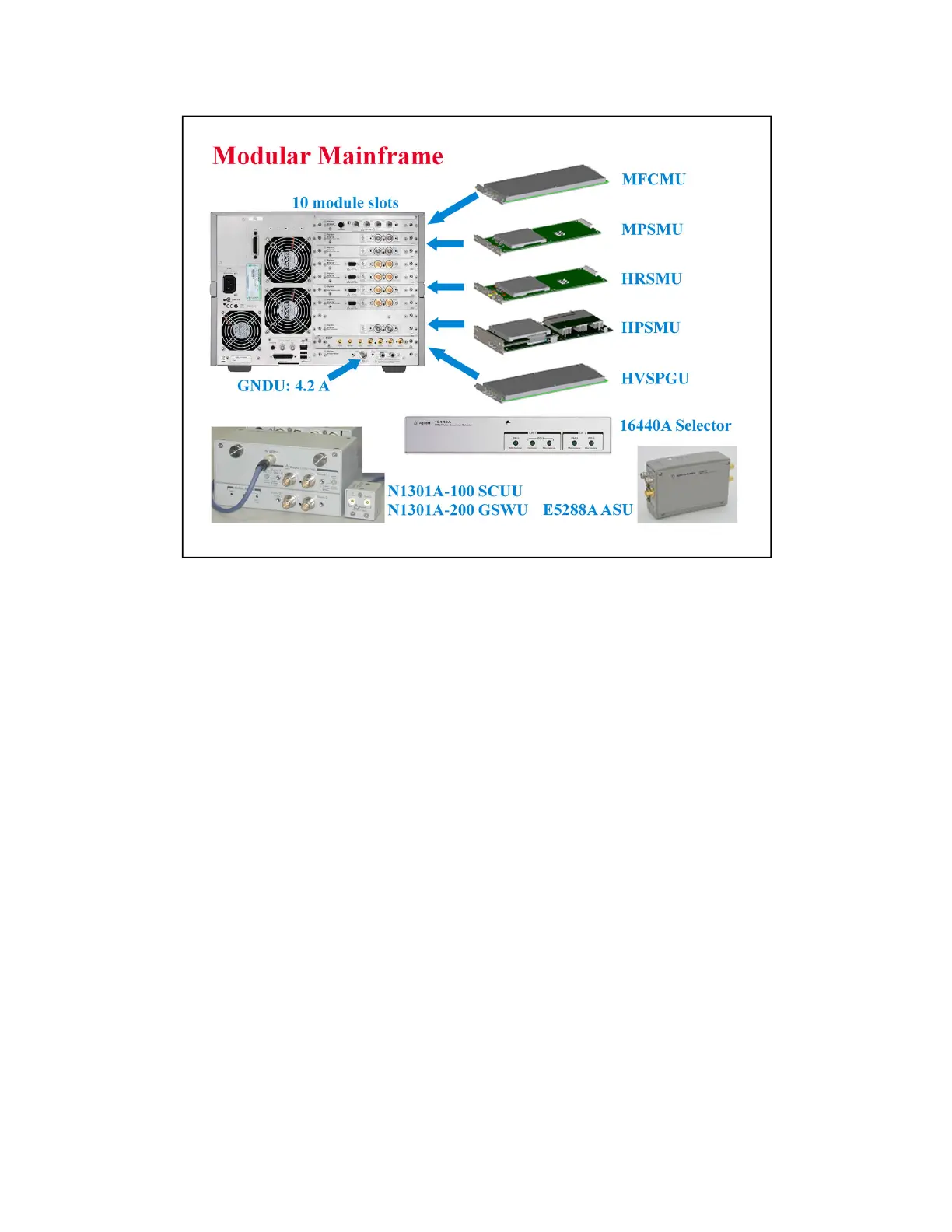

The following modules and accessories are available for the B1500A:
•MFCMU: 1 kHz to 5 MHz CV capability (1 slot)
•MPSMU: 100 mA/100 V force capability, 10 fA/0.5 uV measurement resolution (1 slot)
•HRSMU: 100 mA/100 V force capability, 1 fA/0.5 uV measurement resolution (1 slot)
•HPSMU: 1 A/200 V force capability, 10 fA/2 uV measurement resolution (2 slots)
•HVSPGU: 40 V pulse output or arbitrary linear waveform generation (1 slot), up to 5 modules
•Built-in GNDU: 0 V force, maximum 4.2 A sensing
•N1301A-100/102: SMU CMU unify unit (SCUU) & cable assembly
•N1301A-200/201/202: Guard switch unit (GSWU) & cable assembly
•E5288A ASU: 0.1 fA/0.5 uV measurement resolution with support for IV/CV switching
•16440A Selector for SMU/SPGU switching (2 ports), up to 2 sets
The ASU (Atto sense/switch unit) can be used with the HRSMU calibrated with it.
The SCUU can be used with the CMU (slot N), SMU (slot N-1), and SMU (slot N-2).
The GSWU can be used with the SCUU.
