Keysight Technologies B1500A

Module 2
Basic Measurement
2-12

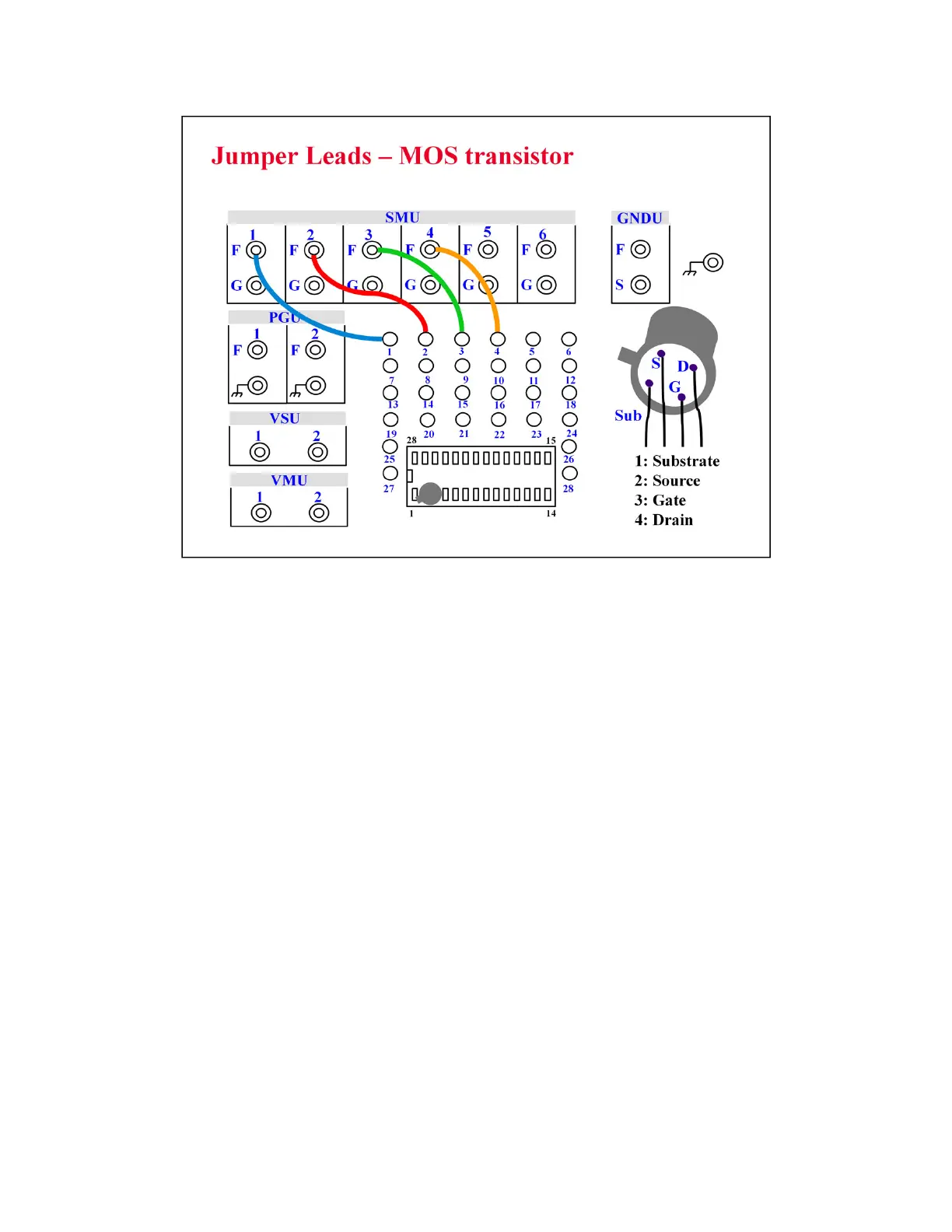

With the 16442A/B fixture, note that there are two SMU numbering schemes....3 SMUs with force
and sense, or six SMUs with force only. For this class example we will use the six (6) SMU scheme.
On older fixtures, this scheme is shown in light blue lettering. In newer fixtures, this scheme is
shown in white reverse background lettering.
