Module 2
Basic Measurement
2-42

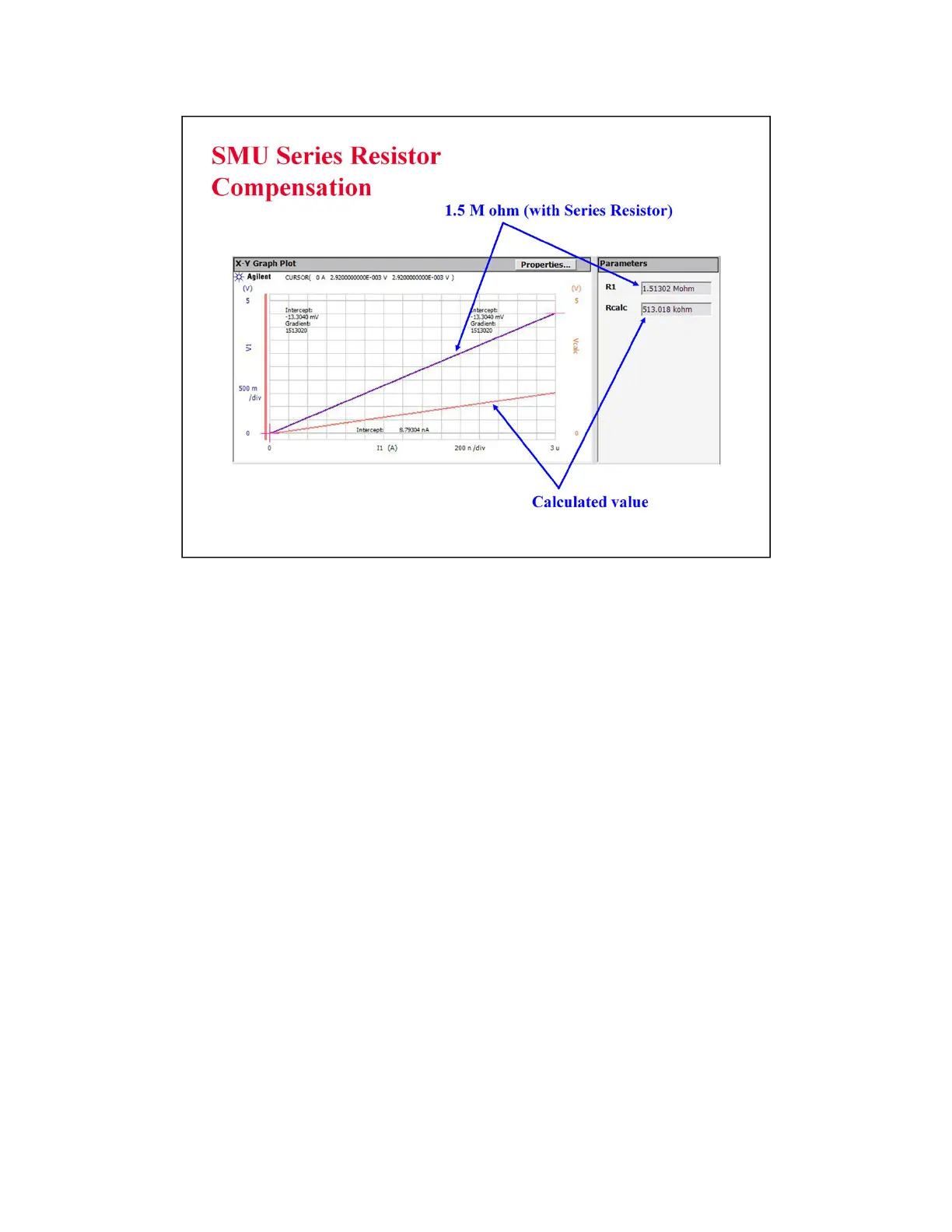

If you use the SMU series resistor, you will need to compensate the measurement data to eliminate
the effects of the series resistor (1 M ohm).
This is a compensation example by using the following user function.
Vcalc = V1 – I1 * 1000000
The Rcalc value is obtained by using the analysis function and the auto analysis function as same as
the IV-res setup.
This compensation example is shown in the Rcalc setup.
