Lab 2: Make Current – Voltage (I – V) Sweep Measurement to get
LED I – V Characteristics

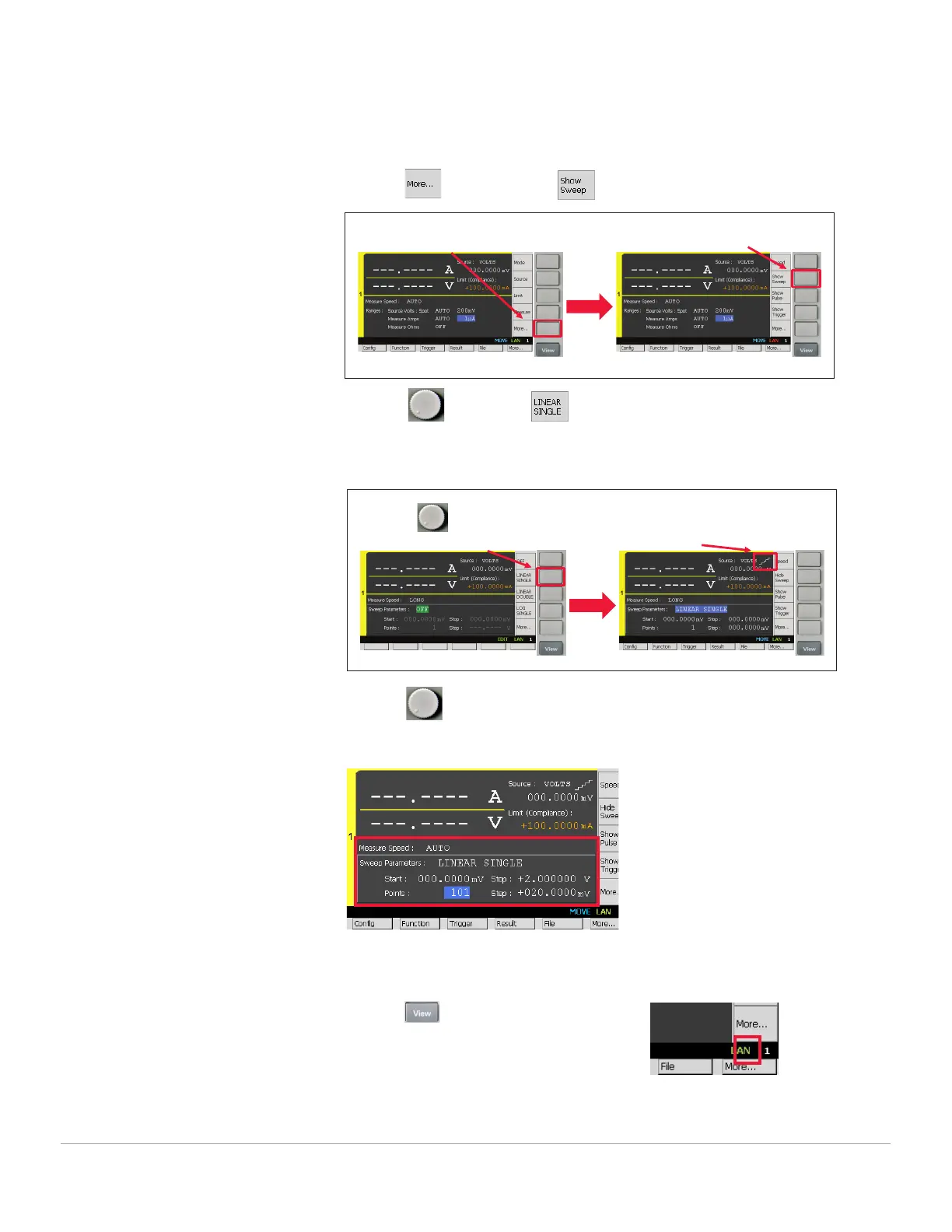

d. Press , and then press to show Sweep Sub-Panel.
e. Press , then press to turn on Single Linear Sweep Mode.
After turning on Single Linear Sweep Mode, you can see Source
Shape which shows the single linear sweep mode.
f. Rotate to select Channel 1 Sweep Parameters and set them up as
below. (Start: 0 V, Stop: 2 V, Points: 101, Step: 20 mV)
3. Change View mode to Graph View
a. Press repeatedly until Graph View is
shown in the display.
(1) Press More… (2) Press Show Sweep
(1) Press
and then press LINEAR SINGLE
Source Shape
Page 8
