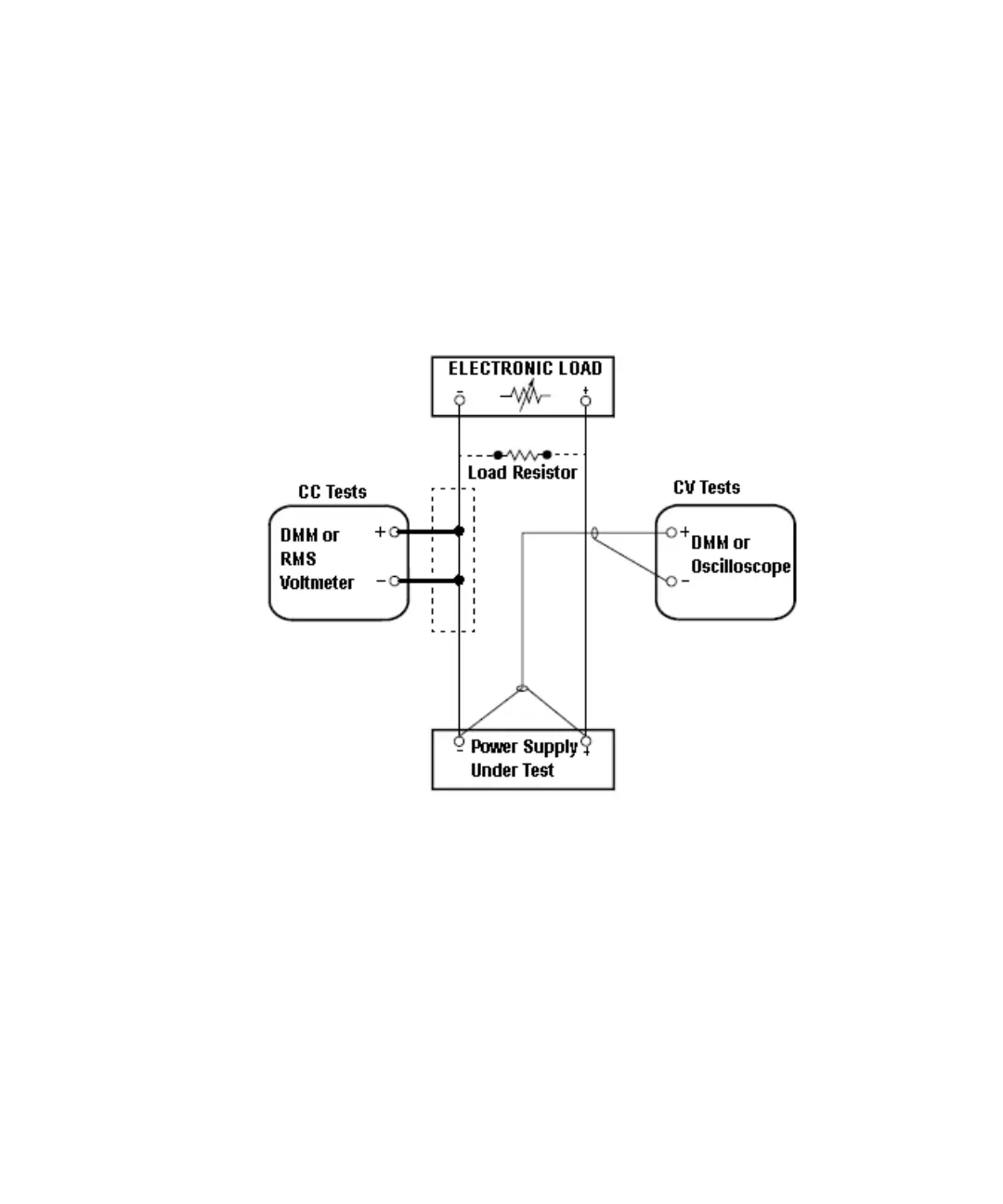

Setup for most tests
This setup is used for most tests and it requires the DMM, electronic load, and
power supply being verified. Some wire is also required for connection between
instruments. A LAN or USB cable is needed for readback data. The DMM
measures the power supply output, and the electronic load draws current from
the power supply. The accuracy of the current monitoring resistor must be 0.01%
or better, which should include any self-heating effects.
This setup is used for most tests and it requires the DMM, electronic load, and
power supply being verified. Some wire is also required for connection between
instruments. A LAN or USB cable is needed for readback data. The DMM
measures the power supply output, and the electronic load draws current from
the power supply. The accuracy of the current monitoring resistor must be 0.01%
or better, which should include any self-heating effects.
