Keysight N9927-90001 User’s Guide 391
On–the–Box Mapping – Option 352 (Requires Spectrum Analyzer Mode (Option 233 on
N991xB), GPS (Option 307) and GPS Receiver (Option 307))
How to Set Up Mapping Settings
Display a Map File
1. Press System 7 > Utilities > Mapping > Map Explorer (Get Maps)
2. Optional: Press Edit
3. Enter a Zoom by using the RPG or the arrow keys to highlight Zoom
and then enter a value between 4 and 17.
4. If you do not see your Map on the FieldFox display: Use the RPG or the
arrow keys to highlight Latitude and then enter a value for latitude
that corresponds closely to the "Current Area Center" value displayed in
the FieldFox Mapping software. Refer to Figure 15-14.
Optional: If you want to stop the "Reading map..." process, press Esc
to
stop map search.
5. Repeat step 4 for Longitude.

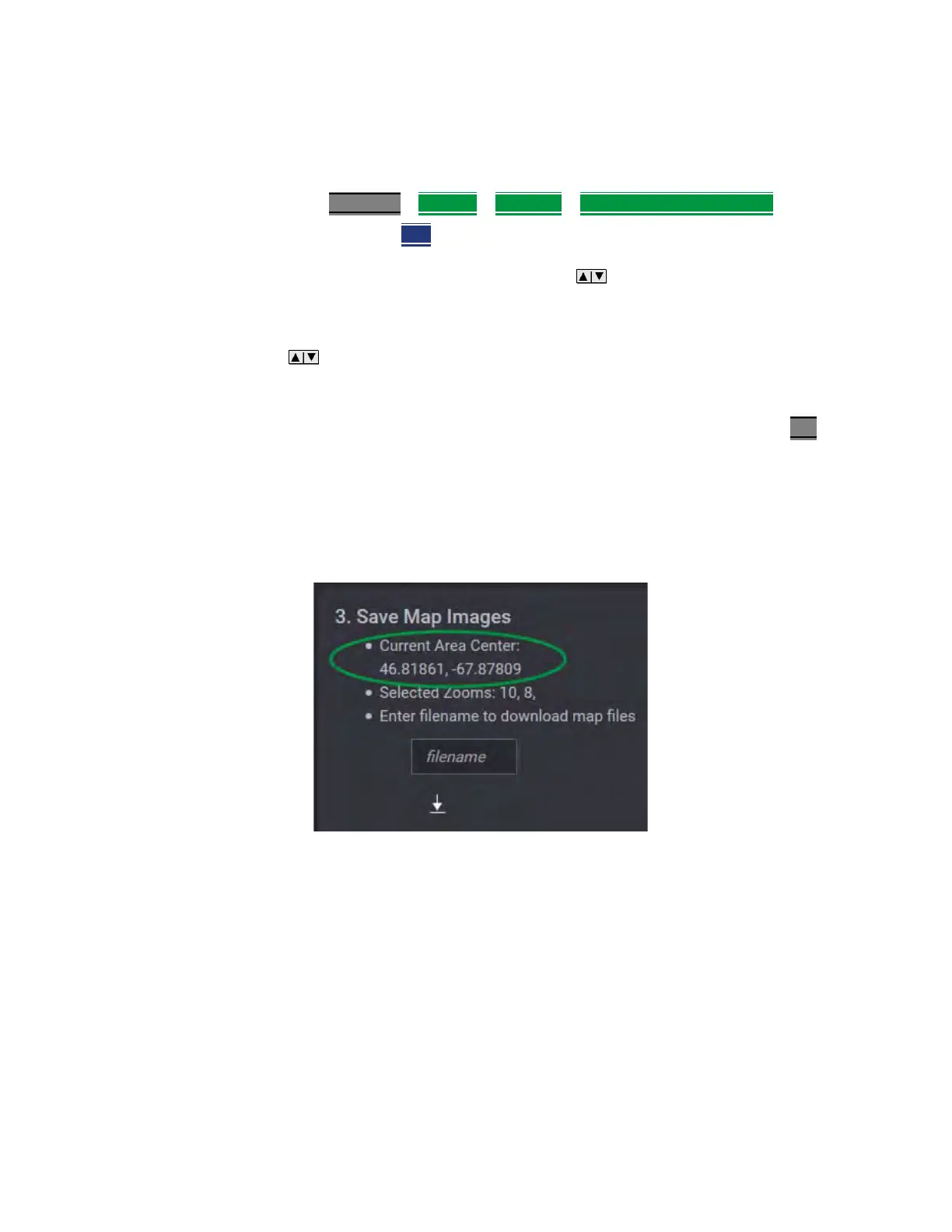

Figure 15-14 Example of Current Area Center Latitude and Longitude Values
