Keysight FieldFox Handheld Analyzers Service Guide 121
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts

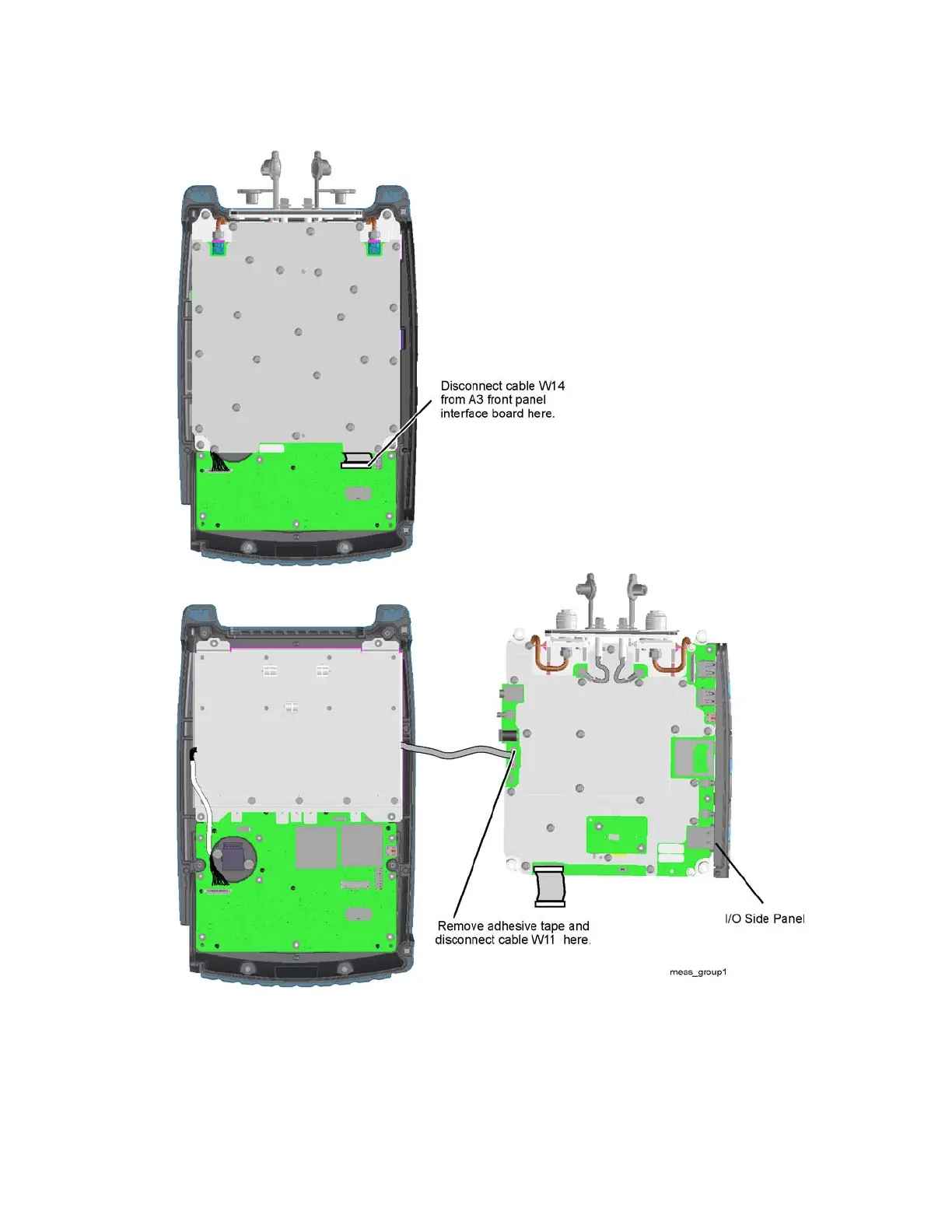

Figure 7-10 Removing All Measurement Group Assemblies as One Unit
3. Remove the measurement group assemblies (RF top panel assembly, A4
RF board, A5 System board, and A6 SOM board) as one unit with the I/O
panel attached, but do not disconnect cable W11 from between the A2
LCD and the A5 System board. Refer to “Removing and Replacing the
Measurement Group Assemblies” on page 136.
