112 Keysight FieldFox Handheld Analyzers Service Guide
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts
7-
Replacing the Kickstand, Hinge Cover, and Hinge
1. Refer to Figure 7-2. Remove, and discard, the four screws (1) from the
kickstand hinge cover. New screws are provided in the Repair and
Re-assembly Kit.

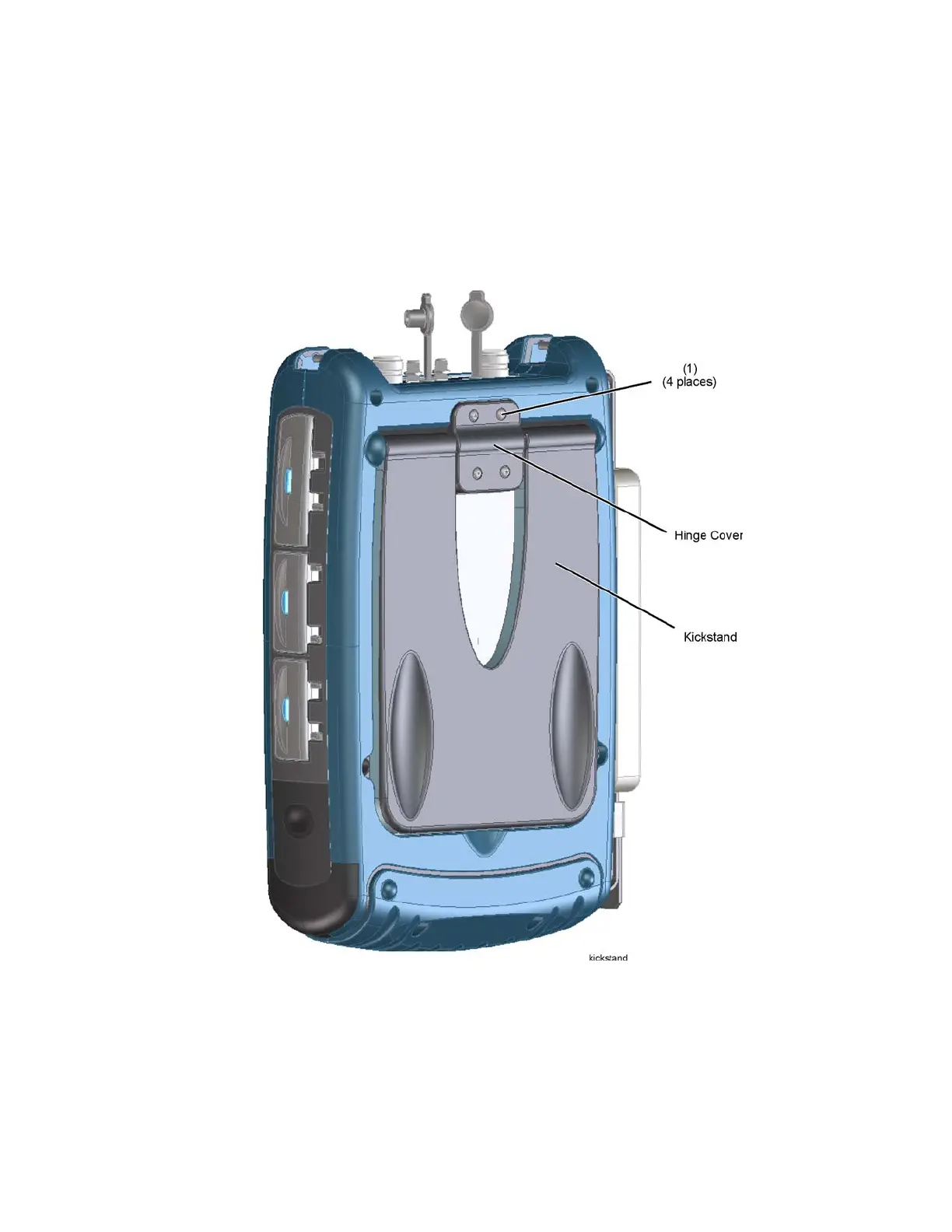

Figure 7-2 Replacing the Kickstand and Hinge Cover
