Keysight N2791A/N2891A High-Voltage Differential Probes User Guide 17
N2791A Plots
N2791A Plots

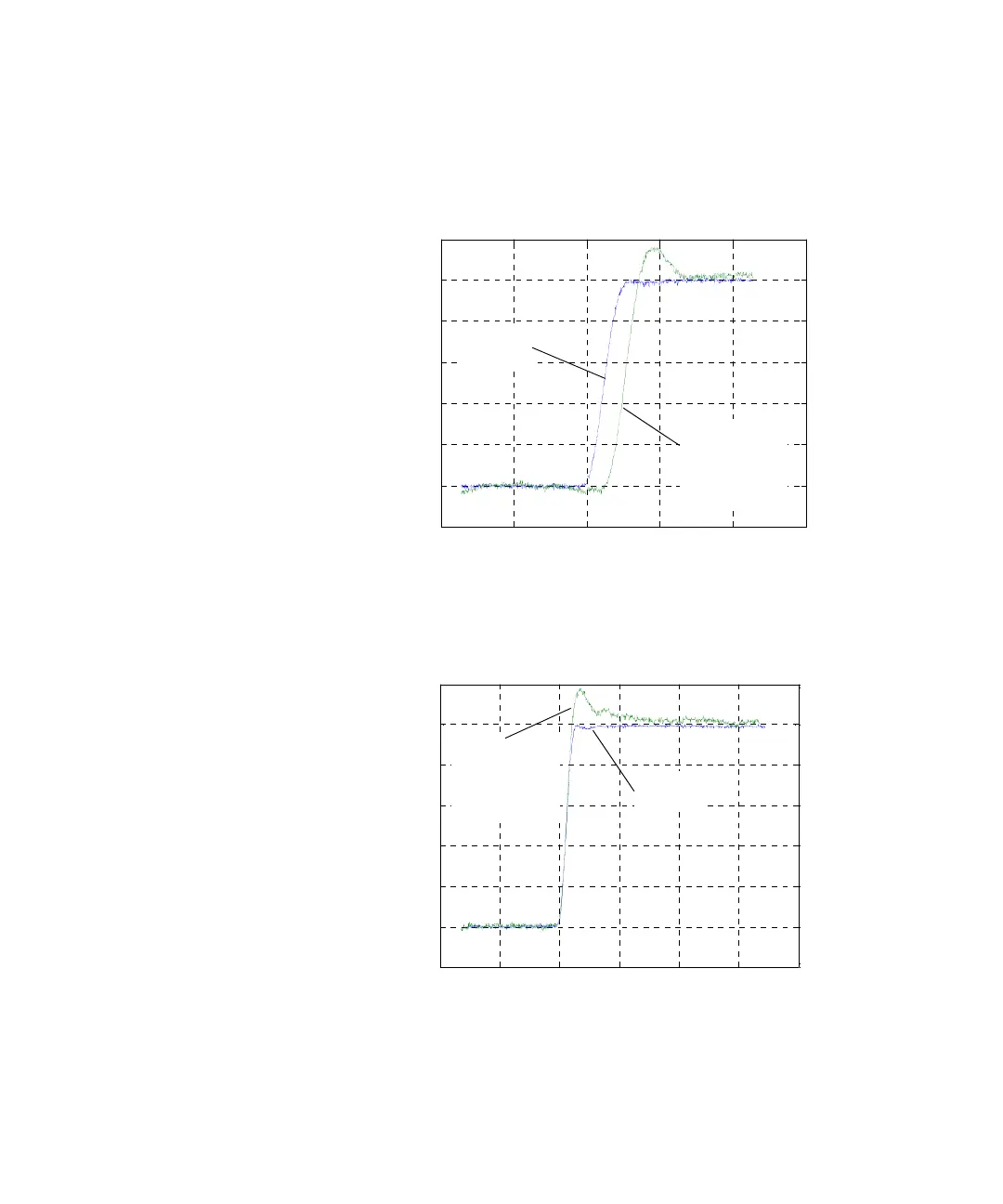

Figure 2 Graph of normalized step response (50Ω, 16.5 ns rising edge step gener-
ator), 17 ns normalized rising edge (10-90%), 10:1 attenuation
Figure 3 Graph of normalized step response (50Ω, 17 ns rising edge step genera-
tor), 17 ns normalized rising edge (10-90%), 100:1 attenuation
-100 -50 0 50 100 150
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
Time (ns)
Volts
Step Input
Signal
Measured Step
Response
(17 ns 10-90%
rise time)
-100 0 100 200 300 400 500
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
Time (ns)
Volts
Step Input
Signal
Measured Step
Response
(17 ns 10-90%
rise time)
