Keysight Technologies U2000 Series Demo Guide

07 | Keysight | N1918A Power Analysis Manager and U2000 Series USB Power Sensors - Demo Guide
Instructions
In the Power Panel
1. Set the frequency 1. Click Channel on the Instrument Navigator panel.
2. Set Frequency (Hz) to “1.900 G” on the Instrument
Properties panel.
2. Acquire average power measurement

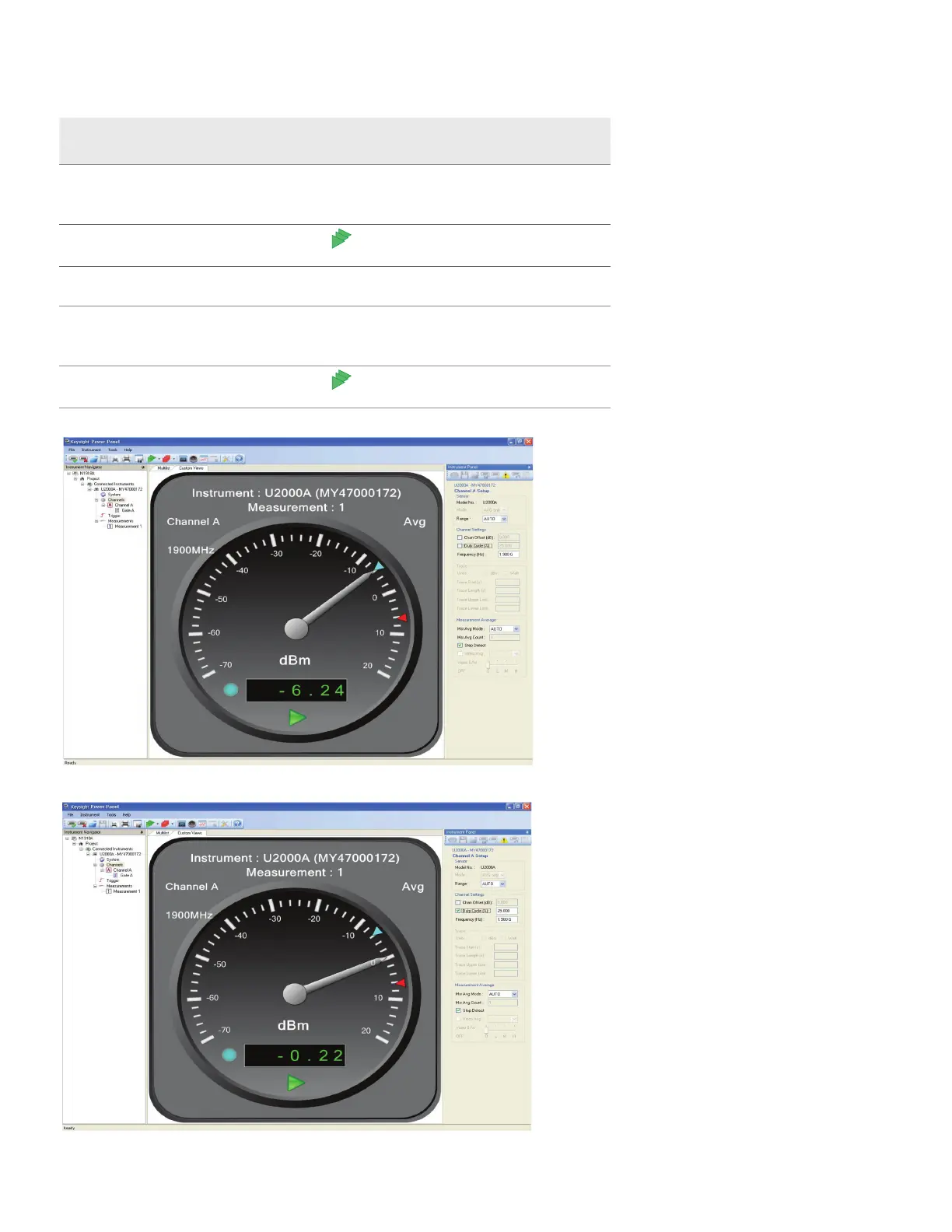

(See Figure 6)
Click on the Power Panel toolbar.
3. Stop the power measurement Click the Stop button on the Power Panel toolbar.
4. Enable and set the duty cycle to 25% 1. Click Channel on the Instrument Navigator panel.
2. Select Duty Cycle checkbox.
3. Set the Duty Cycle (%) to “25.000”.
5. Start the measurement
(See Figure 7)
Click on the Power Panel toolbar.
Figure 7. Pulse power measurement with duty cycle value set to 25%
Figure 6. Average power measurement of pulse signal
