15.Refer to Figure 29. Cut the Vibration Mount 0460-2725 (1) supplied in the kit with scissors or a
knife to fit the Core Bracket N9020-00012.
16.Position the Core Bracket over the ferrite core (2) that is on the flex ribbon cable.

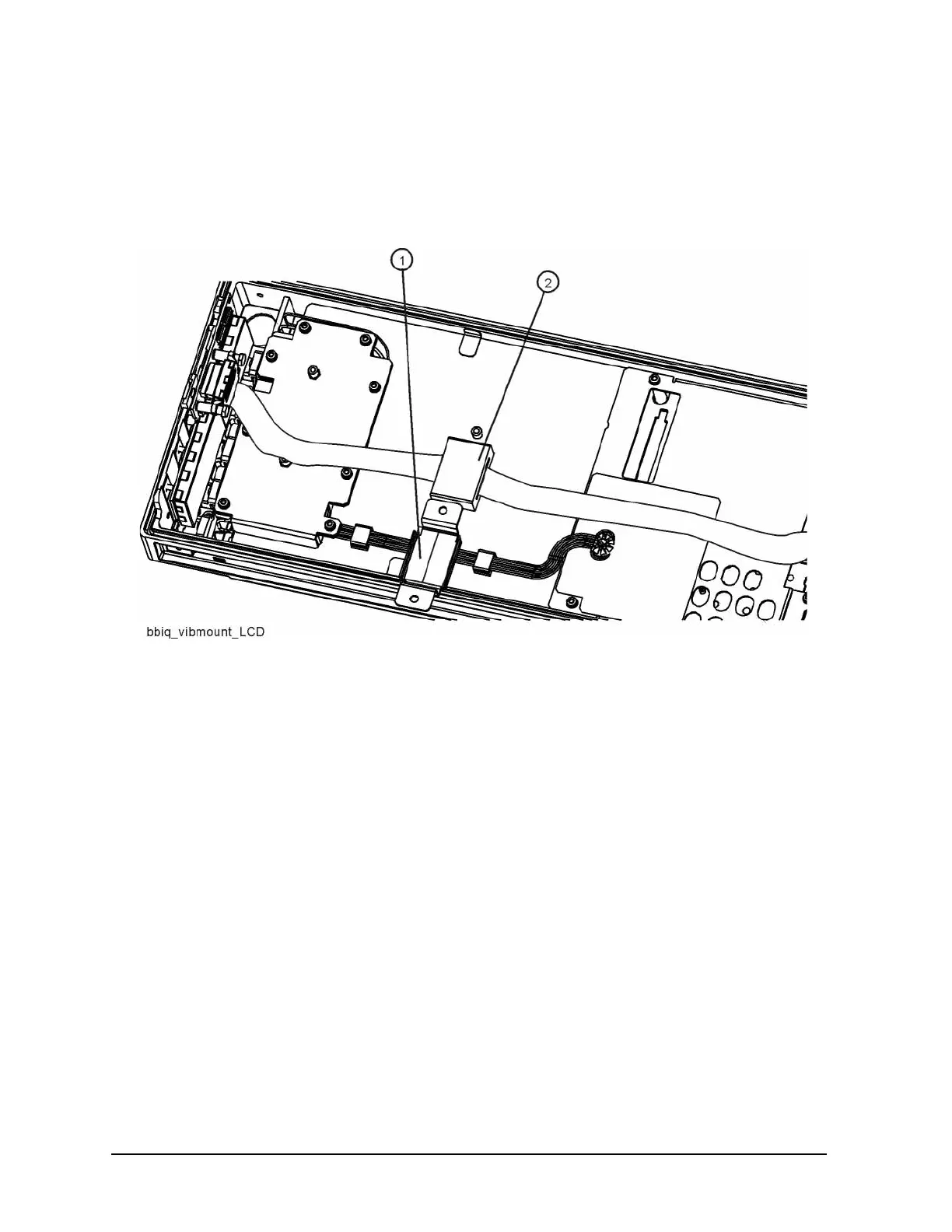

Figure 29 Vibration Mount Installation
